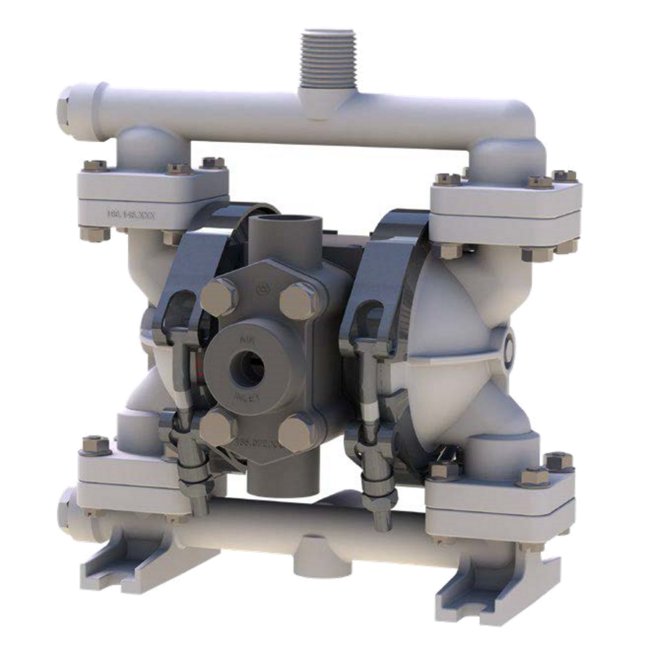

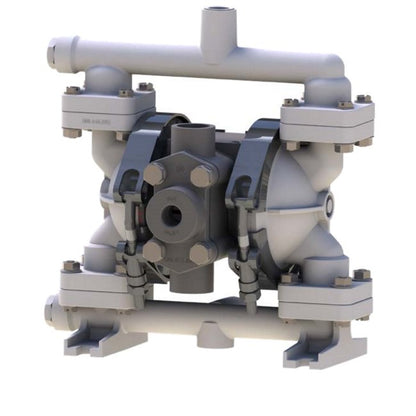

The PB¼ Top Discharge Non-Metallic Ball Valve Pump is purpose-built for highly corrosive fluids, intermittent usage, and low abrasive solids. Constructed with TPE and PTFE components, this pump offers excellent chemical resistance and durability. With a max flow rate of 5 gpm, polypropylene valve seat, and Santoprene elastomers, it ensures reliable performance in waste water applications. This pump meets Federal/DoD procurement standards, offering a reliable solution for institutional needs.
Product Specifications
Curves 0

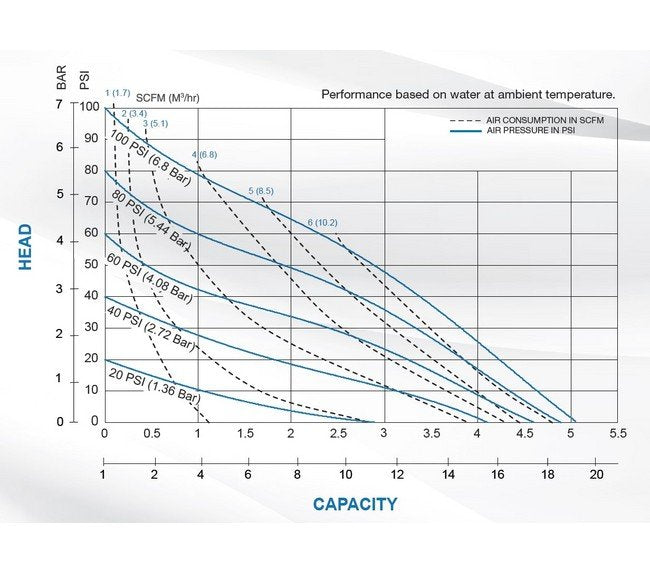

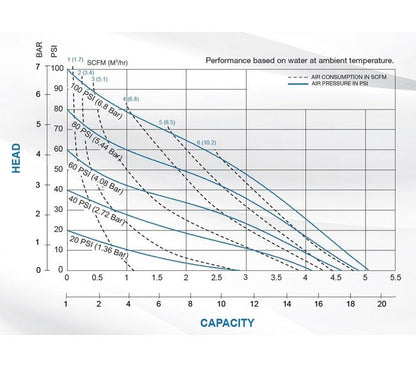

Performance Curves
Dimensions 0

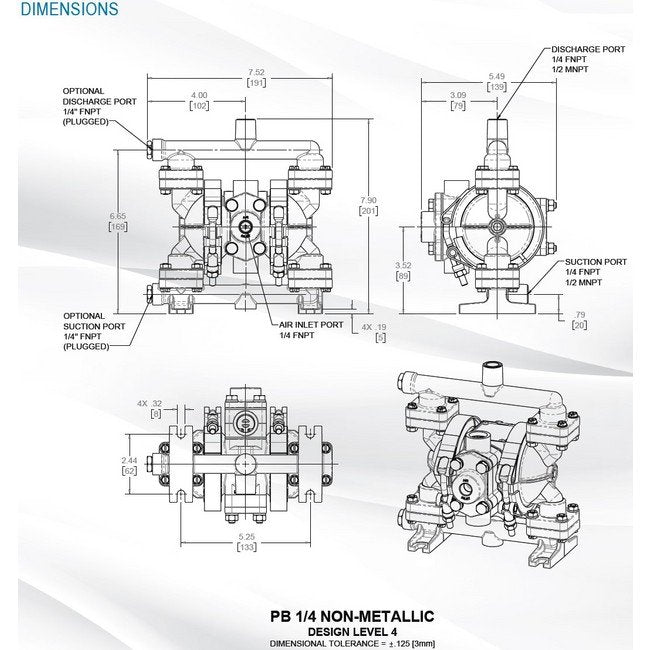

Dimensions
Specifications Check Valve Seat
Polypropylene
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Discharge Pipe Size External
1/2" NPT
Specifications Discharge Pipe Size Internal
1/4" NPT
Specifications Elastomers
Santoprene
Specifications Height
8 in | 200.66 mm
Specifications Inlet Size
0.25 FNPT in | 6 FNPT mm | 0.25" FNPT
Specifications Intake Pipe Size External
1/2" NPT
Specifications Intake Pipe Size Internal
1/4" NPT
Specifications Length
8 in | 0.1910 m | 191.01 mm
Specifications Max Flow Rate
5 gpm | 300.00 gph | 18.93 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
0.25 FNPT in | 6 FNPT mm | 0.25" FNPT
Specifications Sku
WRPB14TS4PPSP
Specifications Solids Handling
0.03125 in | 1 mm
Specifications Valve Seat
Polypropylene
Specifications Weight
5 lbs | 2.27 kg
Specifications Wetted Moc
Polypropylene
Specifications Width
5 in | 0.1394 m | 139.45 mm
Category 6
Standard Duty Diaphragm Pumps
