Non-Metallic Ball Valve Diaphragm Pump - 1/4"

Non-Metallic Ball Valve Diaphragm Pump - 1/4"

PRO-73ceab

Efficiently handle corrosive fluids with the Non-Metallic Ball Valve Diaphragm Pump - 1/4". Ideal for wastewater applications.

$349.99
$349.99
Sale

Initiate Order

Non-Metallic Ball Valve Diaphragm Pump - 1/4"

Non-Metallic Ball Valve Diaphragm Pump - 1/4"

$349.99

Quantity: 1

Claim Your Seller Account

Non-Metallic Ball Valve Diaphragm Pump - 1/4"

Non-Metallic Ball Valve Diaphragm Pump - 1/4"

$349.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

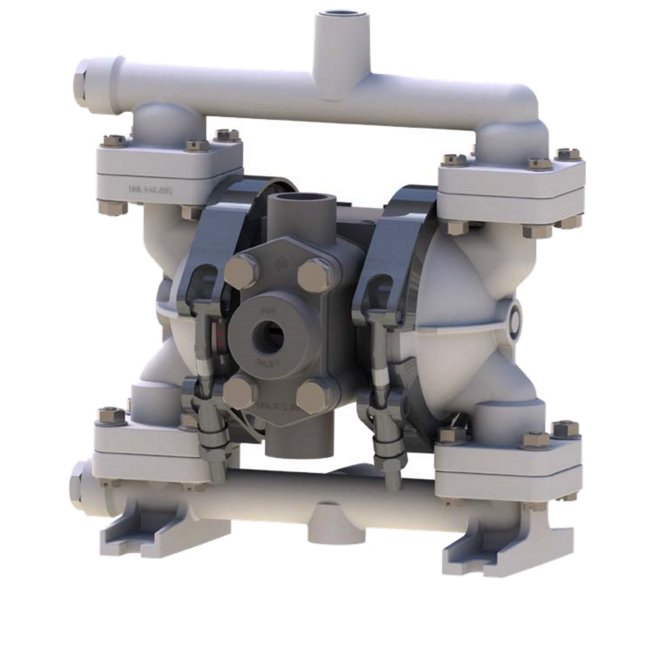

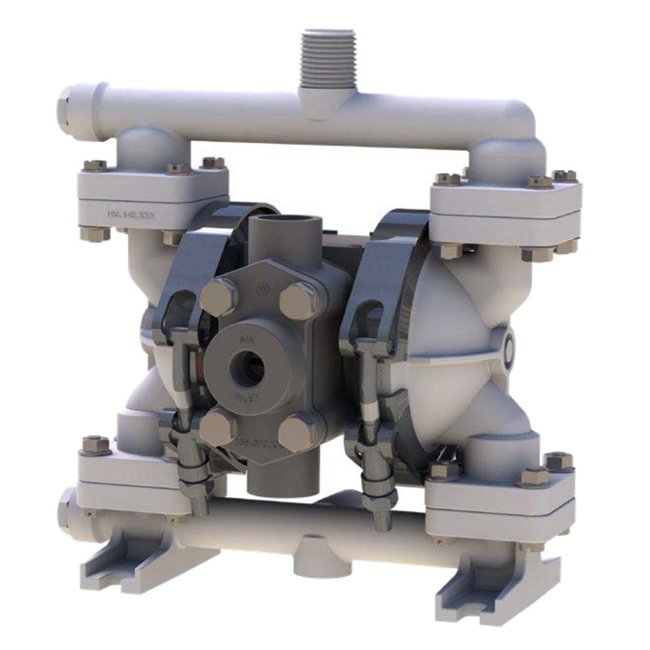

The Non-Metallic Ball Valve Diaphragm Pump, 1/4", is an ideal solution for handling highly corrosive fluids, intermittent usage, and portable applications. This pump features TPE and PTFE construction for enhanced durability and efficiency. With a maximum flow rate of 5 gpm, it effectively manages low abrasive fluids and suspended solids. Designed with polypropylene components, including the valve seat and check valves, this pump ensures reliable performance in wastewater applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Curves 0

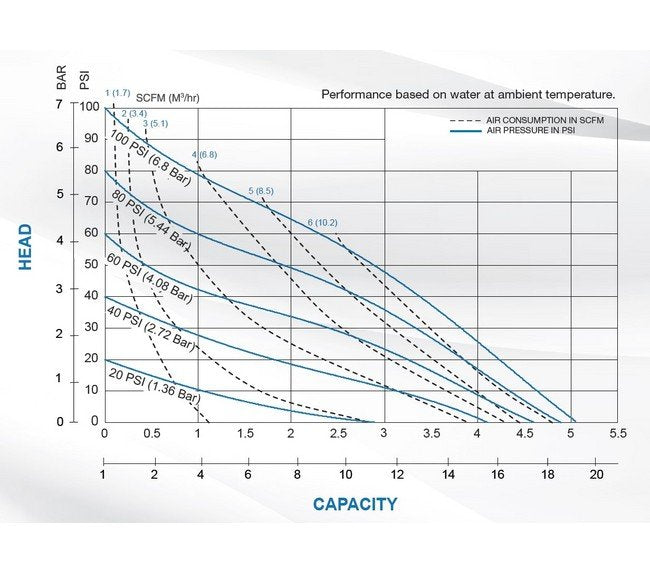

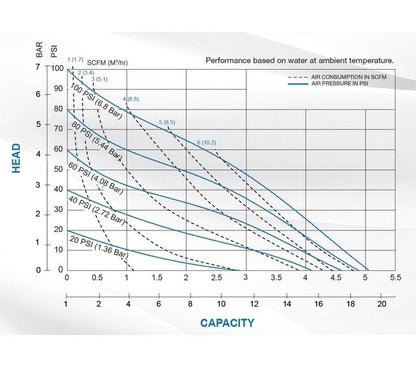

Performance Curves
Dimensions 0

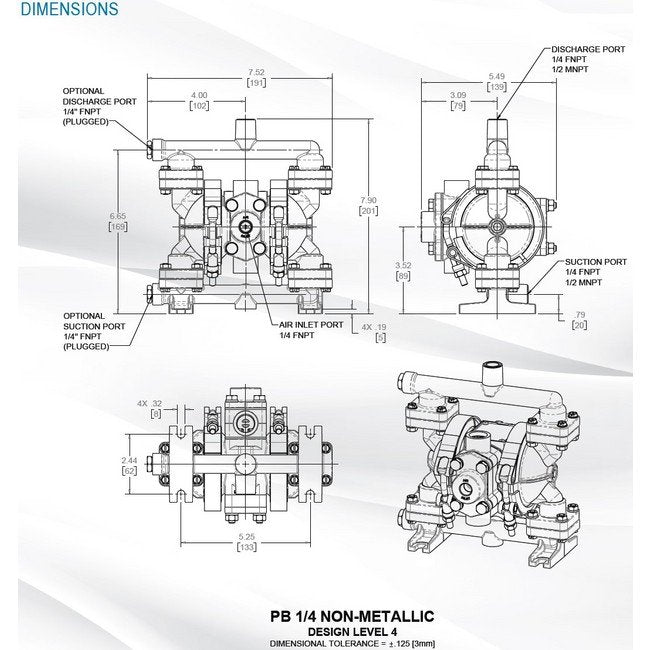

Dimensions
Specifications Check Valve Seat
Polypropylene
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Discharge Pipe Size External
1/2" NPT
Specifications Discharge Pipe Size Internal
1/4" NPT
Specifications Elastomers
PTFE
Specifications Height
8 in | 200.66 mm
Specifications Inlet Size
0.25 FNPT in | 6 FNPT mm | 0.25" FNPT
Specifications Intake Pipe Size External
1/2" NPT
Specifications Intake Pipe Size Internal
1/4" NPT
Specifications Length
8 in | 0.1910 m | 191.01 mm
Specifications Max Flow Rate
5 gpm | 300.00 gph | 18.93 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
0.25 FNPT in | 6 FNPT mm | 0.25" FNPT
Specifications Sku
WRPB14TT4PPSP
Specifications Solids Handling
0.03125 in | 1 mm
Specifications Valve Seat
Polypropylene
Specifications Weight
4 lbs | 1.81 kg
Specifications Wetted Moc
Polypropylene
Specifications Width
5 in | 0.1394 m | 139.45 mm
Category 6
Standard Duty Diaphragm Pumps
