Non-Metallic Ball Valve Diaphragm Pump - PB1/4-A

Name: Non-Metallic Ball Valve Diaphragm Pump - PB1/4-A
Brand: Springer Pumps, LLC
SKU: PRO-5075d0

SKU:PRO-5075d0

Reliable non-metallic ball valve pump for corrosive fluids & suspended solids. Max 5 gpm flow rate, Acetal valve seat. Ideal for water & wastewater applications.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PB1/4-A Non-Metallic Ball Valve Diaphragm Pump is designed for handling highly corrosive fluids, portable applications, and low abrasive fluids with suspended solids. Constructed with TPE and PTFE diaphragms and check valves, this pump ensures reliable performance. With a max flow rate of 5 gpm, Acetal valve seat, and Polypropylene non-wetted material, it's ideal for standard duty diaphragm pump requirements in water, wastewater, sump, and utility applications.

Product Specifications

Curves 0

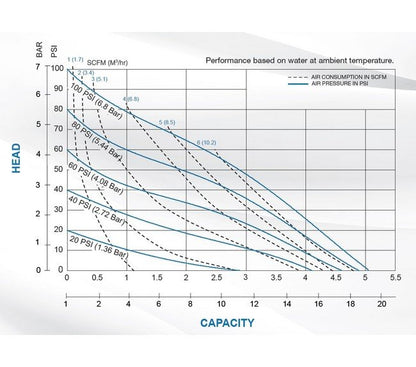

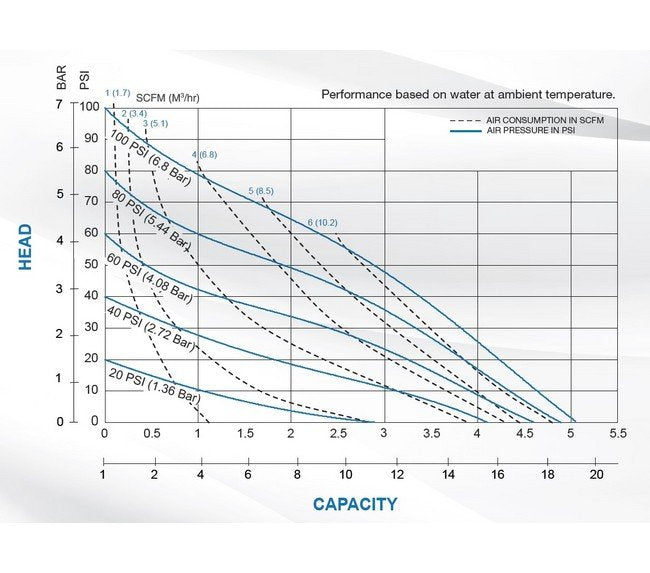

Performance Curves

Dimensions 0

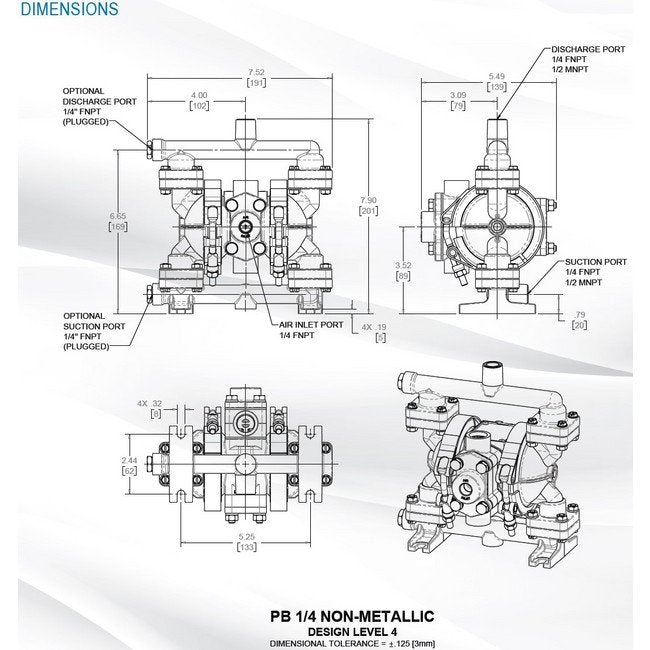

Dimensions

Specifications Check Valve Seat

Acetal

Specifications Check Valve Type

Ball

Specifications Customs Code

ECCN Code EAR99

Specifications Discharge Pipe Size External

1/2" NPT

Specifications Discharge Pipe Size Internal

1/4" NPT

Specifications Elastomers

PTFE

Specifications Height

8 in | 200.66 mm

Specifications Inlet Size

0.25 FNPT in | 6 FNPT mm | 0.25" FNPT

Specifications Intake Pipe Size External

1/2" NPT

Specifications Intake Pipe Size Internal

1/4" NPT

Specifications Length

8 in | 0.1910 m | 191.01 mm

Specifications Max Flow Rate

5 gpm | 300.00 gph | 18.93 lpm

Specifications Non Wetted Material

Polypropylene

Specifications Outlet Size

0.25 FNPT in | 6 FNPT mm | 0.25" FNPT

Specifications Sku

WRPB14TT4CASP

Specifications Solids Handling

0.03125 in | 1 mm

Specifications Valve Seat

Acetal

Specifications Weight

4 lbs | 1.81 kg

Specifications Wetted Moc

Cond AcetAluminum

Specifications Width

5 in | 0.1394 m | 139.45 mm

Category 6

Standard Duty Diaphragm Pumps

Non-Metallic Ball Valve Diaphragm Pump - PB1/4-A
