Non-Metallic Ball Valve Pump - 1/4 Inch Discharge
Non-Metallic Ball Valve Pump - 1/4 Inch Discharge
SKU:PRO-95c68c
Reliable PB¼ Top Discharge Non-Metallic Ball Valve Pump for corrosive fluids. Portable & efficient with 5 gpm flow rate.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Non-Metallic Ball Valve Pump - 1/4 Inch Discharge
$499.99
Quantity: 1
Claim Your Seller Account
Non-Metallic Ball Valve Pump - 1/4 Inch Discharge
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

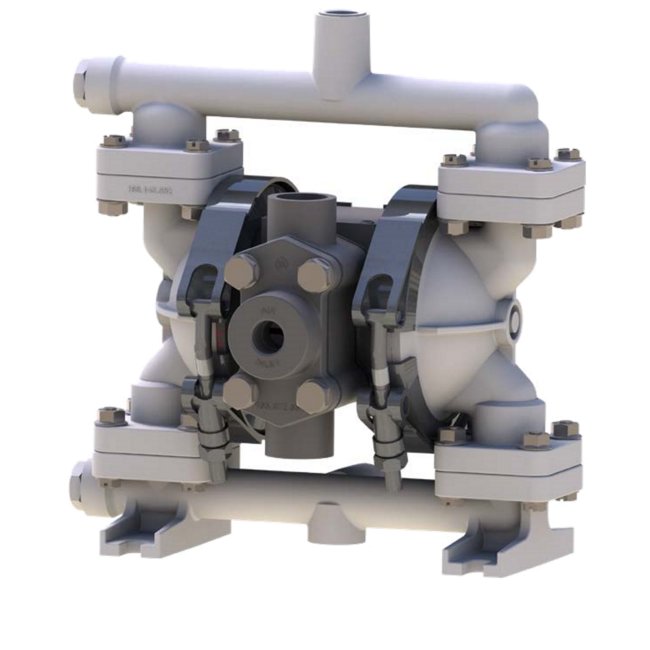

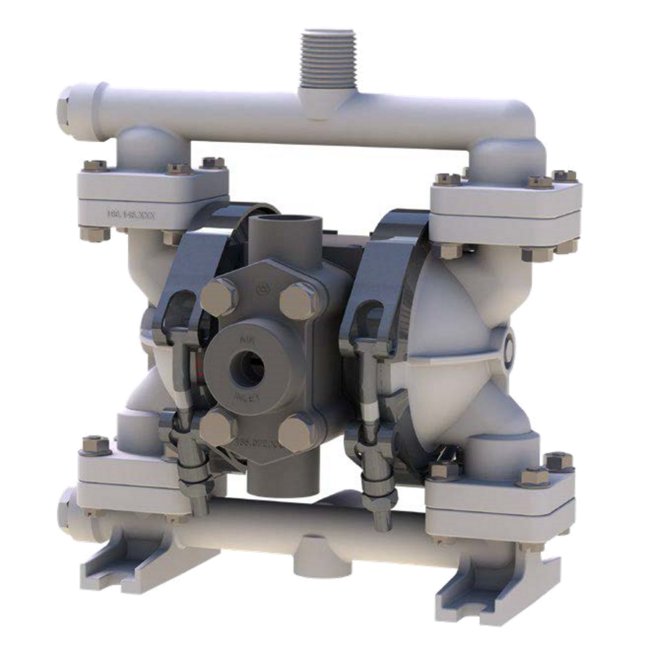

The PB¼ Top Discharge Non-Metallic Ball Valve Pump is a robust solution designed for handling highly corrosive fluids and low abrasive substances. Featuring TPE and PTFE diaphragms and check valves, this pump is ideal for intermittent use, portable applications, and fluids with suspended solids. With a maximum flow rate of 5 gpm, it ensures reliable performance in diverse industrial settings.
Product Specifications

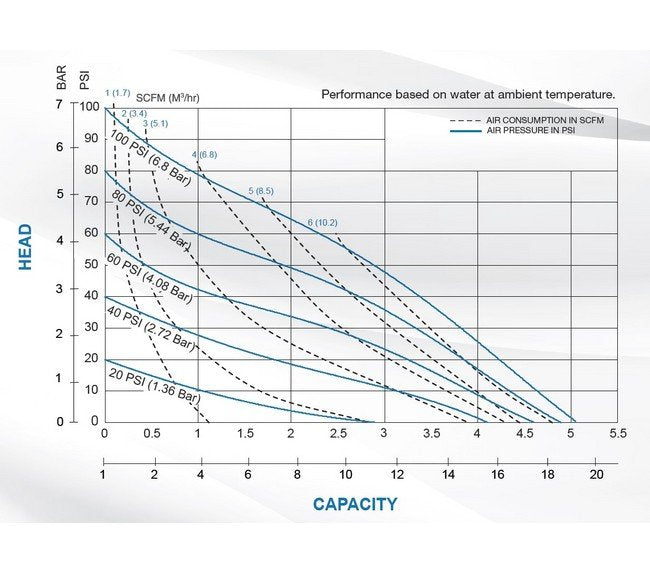

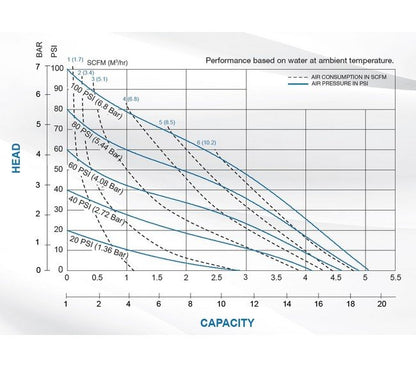

Curves 0
Performance Curves

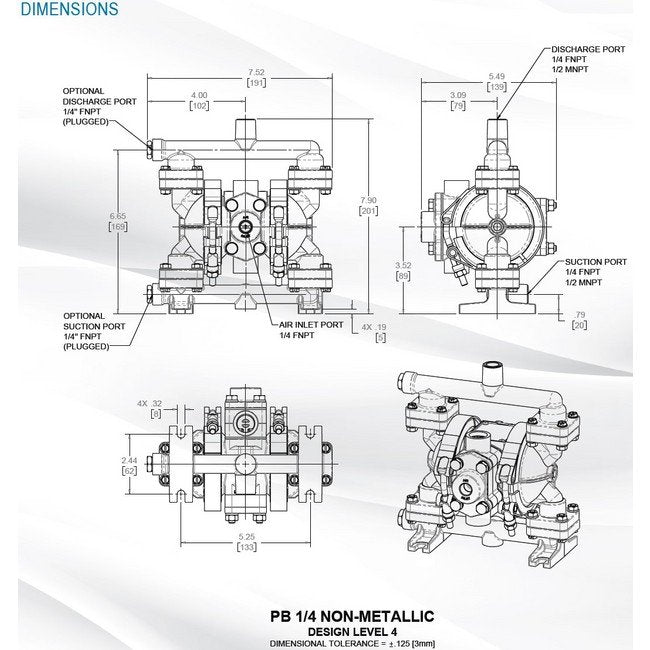

Dimensions 0
Dimensions
Specifications Check Valve Seat
PVDF - Kynar
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Discharge Pipe Size External
1/2" NPT
Specifications Discharge Pipe Size Internal
1/4" NPT
Specifications Elastomers
Santoprene
Specifications Height
8 in | 200.66 mm
Specifications Inlet Size
0.25 FNPT in | 6 FNPT mm | 0.25" FNPT
Specifications Intake Pipe Size External
1/2" NPT
Specifications Intake Pipe Size Internal
1/4" NPT
Specifications Length
8 in | 0.1910 m | 191.01 mm
Specifications Max Flow Rate
5 gpm | 300.00 gph | 18.93 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
0.25 FNPT in | 6 FNPT mm | 0.25" FNPT
Specifications Sku
WRPB14TS4KSP
Specifications Solids Handling
0.03125 in | 1 mm
Specifications Valve Seat
PVDF - Kynar
Specifications Weight
5 lbs | 2.27 kg
Specifications Wetted Moc
PVDF - Kynar
Specifications Width
5 in | 0.1394 m | 139.45 mm
Category 6
Standard Duty Diaphragm Pumps
