Non-Metallic Liquid-Tight Flexible Conduit - Type CNP 1-1/4"
Non-Metallic Liquid-Tight Flexible Conduit - Type CNP 1-1/4"
SKU:LIQ-4d3d68
Type CNP 1-1/4" Non-metallic Conduit - UL Listed, CSA Certified, Oil Resistant, IP67 Rated. Ideal for varied applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Non-Metallic Liquid-Tight Flexible Conduit - Type CNP 1-1/4"
$249.99
Quantity: 1
Claim Your Seller Account
Non-Metallic Liquid-Tight Flexible Conduit - Type CNP 1-1/4"
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

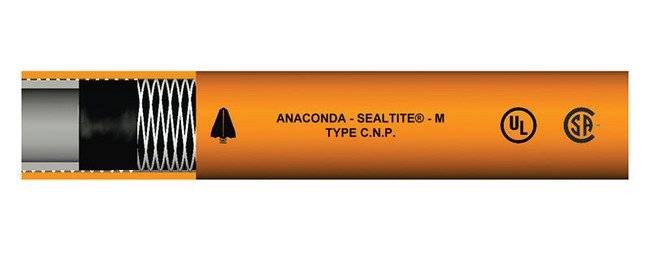

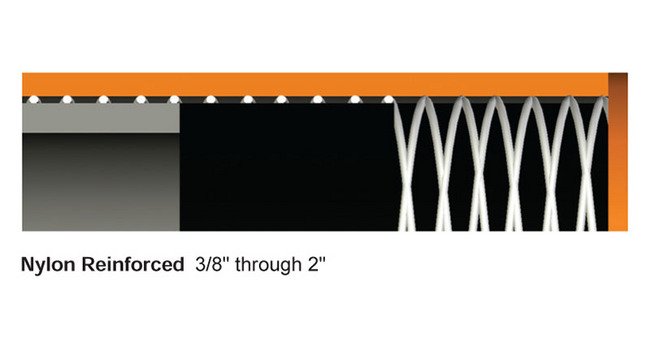

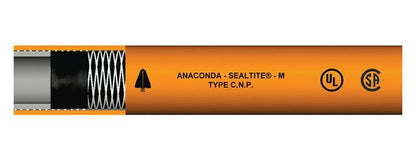

The Type CNP Non-metallic Conduit is an essential solution for wiring in applications requiring a temperature range of -4ºF to +140ºF. Constructed with a smooth inner PVC core, oil-resistant outer cover, and nylon reinforcing layer, this conduit offers a liquid-tight raceway. It meets UL and CSA certifications, IP 67 rating, and is ideal for installations requiring flexibility, toughness, and resistance to abrasion.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Where Abrasion or Physical Abuse are Factors, Constant Flexing or MovementTemperature Range: -4ºF to +140ºF (-20ºC to +60ºC)
Installation 0
Conduit used with standard connectors for non-metallic conduit Type A for easy installation. IP 67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -4ºF to +140ºF (-20ºCto +60ºC).Complies with UL Standard 1660 Type A conduit File No. E-75863; CSA C22.2 File No. LL15257; and NEC Article 356.Easy to install and cuts easily.Manufactured in a full range of trade sizes from 3/8" through 2".Flexible, but tough; crush, abrasion and strain resistant. Where abrasion, physical abuse or constant flexing are a factor.
Nec Articles 0
Article 250.102 Equipment Bonding JumpersArticle 250.134 (B) Equipment GroundingArticle 300.22 (D) Information Technology EquipmentArticle 356 Liquid-Tight Flexible Nonmetallic Conduit (LFNC-A)Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2Article 503.10 (A) (3) and (B) Class III Div. 1 & 2Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors
Specifications Approx Inside Bend Radius
7.0 in | 177.8 mm
Specifications Approx Weight Per 100 Ft
58 lbs | 26.31 kg
Specifications Color
Orange
Specifications Core Material
Polyvinyl Chloride (PVC)
Specifications Cross Reference
6505-24-00 | 874304 | LFNC-A | LNM-P 14
Specifications Electrical Trade Size
1-1/4 in | 35 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.370 to 1.395 in | 34.798 to 35.433 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
200 ft | 60.96 m
Specifications Note
Colors available on request.
Specifications Optional Colors
Gray
Specifications Outside Diameter
1.800 to 1.825 in | 45.720 to 46.355 mm
Specifications Packaging
Reels
Specifications Type
CNP
