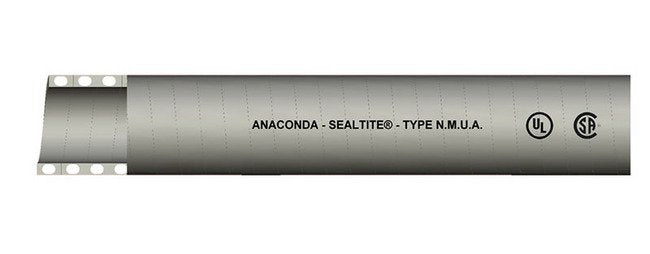

The Non-Metallic Liquid-Tight Flexible Conduit Type NMUA LFNC-B is a durable thermoplastic PVC conduit designed for versatile use in both indoor and outdoor applications, including corrosive environments. Compliant with National Electric Code Article 356, this conduit offers a temperature range of -17ºF to +176ºF, making it suitable for various settings. With UL listing and CSA certification as Type B non-metallic conduit, along with IP 67 rating when used with approved connectors, this conduit ensures safety and performance. Easy to install and compatible with a range of trade sizes, it meets NEC standards for bonding jumpers, equipment grounding, and more.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
General Purpose Non-Metallic-Smooth Inner/Outer WallTemperature Range: of -17ºF to +176ºF (-27ºC to +80ºC).
Installation 0

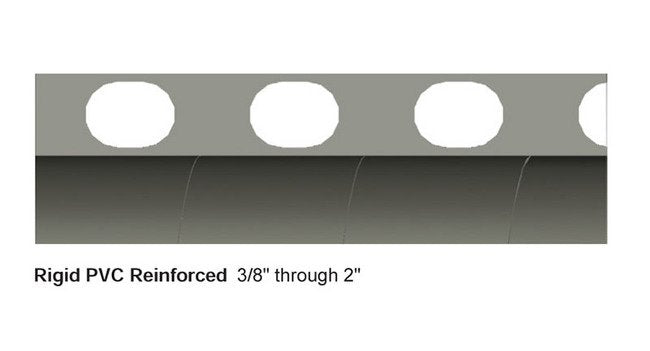

Conduit used with standard connectors for non-metallic conduit Type B for easy installation. IP 67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -17ºF to +176ºF (-27ºC to +80ºC).Complies with NEC Article 356 and UL Standard 1660 File No. E-211327; CSA C22.2 File No. 020817. Easy to install and cuts easily.Manufactured in a full range of trade sizes from 3/8" through 2".Approved for direct burial and in concrete trade sizes 3/8" through 2".
Nec Articles 0
Article 250.102 Equipment Bonding Jumpers Article 250.134 (B) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 356 Liquid-Tight Flexible Nonmetallic Conduit (LFNC-B) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors
Specifications Approx Inside Bend Radius
9.0 in | 228.6 mm
Specifications Approx Weight Per 100 Ft
45 lbs | 20.41 kg
Specifications Color
GRAY
Specifications Core Material
Polyvinyl Chloride (PVC)
Specifications Cross Reference
55-09-46-01 | 6006-24-00 | 81052 | LFNC-B | NM | NM-15 | NMUA | NMUA-1-1/2
Specifications Electrical Trade Size
1-1/2 in | 41 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 65/66/67
Specifications Inside Diameter
1.575 to 1.600 in | 40.005 to 40.640 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
50 ft | 15.24 m
Specifications Outside Diameter
1.865 to 1.900 in | 47.371 to 48.260 mm
Specifications Packaging
Standard Carton
Specifications Type
NMUA
