NOSHOK 1/2" NPT 316 Stainless Steel Soft Seat Block and Bleed Valve
NOSHOK 1/2" NPT 316 Stainless Steel Soft Seat Block and Bleed Valve
SKU:NOS-d182c6
NOSHOK 700 Series Needle Valve: 1/2" NPT, 316 Stainless Steel, Soft Seat, Block & Bleed Design
Regular price
$192.90
Regular price
Sale price
$192.90
Unit price
per
Initiate Order
NOSHOK 1/2" NPT 316 Stainless Steel Soft Seat Block and Bleed Valve
$192.90
Quantity: 1
Claim Your Seller Account
NOSHOK 1/2" NPT 316 Stainless Steel Soft Seat Block and Bleed Valve
$192.90
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

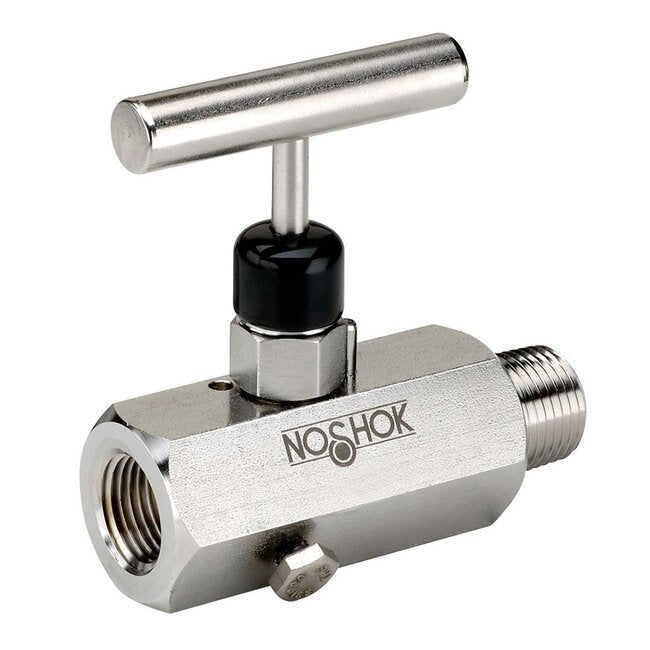

The NOSHOK 700 Series Block and Bleed Needle Valve with Soft Seat is designed for quick pressure bleed-off without disturbing piping. Made of electropolished 316 stainless steel, it features a replaceable Acetal seat, bidirectional flow capability, and easy cleaning. This 1/2" valve has a 0.187" orifice, 6,000 psi pressure rating, and a hard seat for durability and reliability in demanding environments.
Product Specifications
Additional Information Additional Information

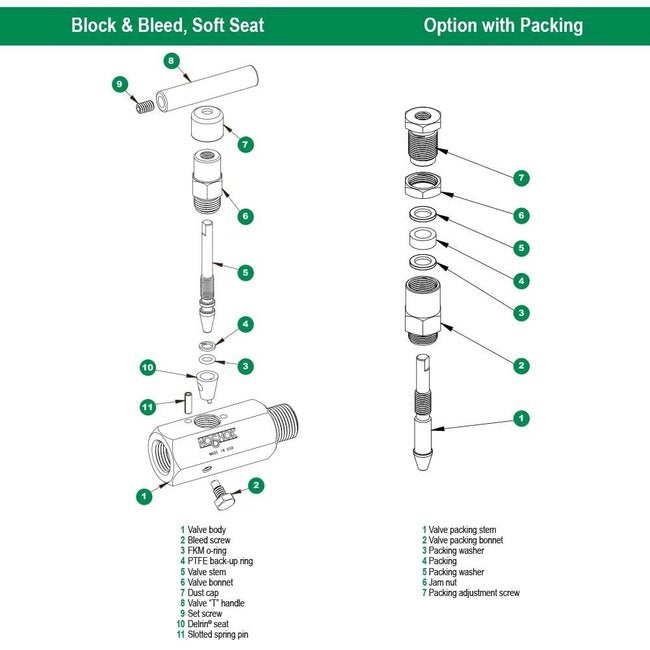

Blow-out proof stem provides a secondary stem seal in the full open positionFKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE packing optionalAll stem threads are rolled for strength and ease of operationOne-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threadsSlotted spring pin to prevent accidental looseningVinyl dust cap for bonnet and stem (non-packing)0.090" bleed hole located on the bottom is controlled by a 1/4"-20 UNF-2A bleed screw
Additional Options Additional Options
Soft SeatsPEEK (PK1)PCTFE (KF1 )O-RingsEPDM (EM1)FFKM (Perfluoroelastomer 3018 or equivalent) (KZ1)NBR (NB1)Panel MountingsPanel mount (1 nut) (PM1)Panel mount (2 nuts) (PM2)Handles1-3/8" Phenolic (HL4)1-3/4" Phenolic (HL5 )
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Note Note
Please note that the standard o-ring in all the NOSHOK valves is FKM and the standard handles are "T" handles (HL2).The handle material will always match the material of the valve, unless otherwise specified. For example, the "T" handle (HL2) on the 602-FFC will be steel. When only the standard configuration is needed, no additional designations are necessary. Please consult the factory for special application requests.O-Ring - Other o-ring materials available on request.All 316SS products meet the requirements of NACE MR0175/ISO 15156-3.All NOSHOK valve products conform to the MSS SP-99 instrument valves standards, and valves supplied with packing also conform to MSS SP-132 compression packing systems for instrument valves standard.
Options And Accessories Assembly Options
NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.
Options And Accessories Installed Options And Accessories
Soft SeatsPEEK (PK1)PCTFE (KF1)Packing PTFE (P1)Stem TipsNon-rotating (316 Stainless Steel) (T1)O-Rings (Other o-ring materials available on request)EPDM (EM1)FFKM (Perfluoroelastomer) 3018 or equivalent (KZ1)NBR (NB1)Panel Mount1 nut (PM1)2 nuts (PM2)Handles1-3/8" Phenolic Handle (HL4)1-3/4" Phenolic Handle (HL5)Cleaning For Oxygen Service (Stainless Steel Only)
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications Connection Size
1/2 in
Specifications Connection Type
National Pipe Thread (NPT)
Specifications Cv Coefficient
0.76
Specifications List Price
192.90 USD
Specifications Material
Electropolished 316 Stainless Steel
Specifications Orifice Size
0.187 in
Specifications Pressure Ratings At 200 Degree Fahrenheit F Tempe
6,000 psi
Specifications Seat
Hard Seat
Specifications Series
700
Specifications Stem Seal And Type
All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) packing optional
Specifications Thread Type
Unified Fine Thread (UNF) 2A
Specifications Type
Needle Valve
Specifications Valve Material
Stainless Steel
Specifications Valve Type
Female-Female
Specifications Warranty
3 y
Specifications Weight
1.3 lb
