NOSHOK 1/2" NPT Stainless Steel Thermowell
NOSHOK 1/2" NPT Stainless Steel Thermowell
SKU:NOS-76a7d3
High-quality 1/2" NPT stainless steel thermowell for precise temperature monitoring in high-pressure industrial settings.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
NOSHOK 1/2" NPT Stainless Steel Thermowell
$69.99
Quantity: 1
Claim Your Seller Account
NOSHOK 1/2" NPT Stainless Steel Thermowell
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOSHOK 1/2" NPT Stainless Steel Thermowell is designed for precision temperature measurement in demanding industrial environments. Made of high-grade 304 stainless steel with a 12" length and 1/2" NPSM instrument connection, this thermowell offers exceptional durability and protection for temperature instruments. With a maximum pressure rating of 7,000 psi, it is suitable for high-pressure applications in industries such as HVAC, petrochemical, oil, and gas. The stepped shank design allows for easy instrument removal and replacement without process shutdown, ensuring operational efficiency and safety. Choose from various process connection options to meet specific installation requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
The Female thread will accept the 1/2" NPT Male thread without galling or seizingBrass, 304 Stainless Steel, or 316 Stainless Steel standard material options - other options availableStandard style is stepped, available in straight, tapered and lagging optionsMultiple lagging lengths available
Application Application
Recommended wherever the process being measured is under pressure, corrosive, abrasive, or moving at a high velocityHVACPetrochemicalOil and gasProcess (flanged thermowells)
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

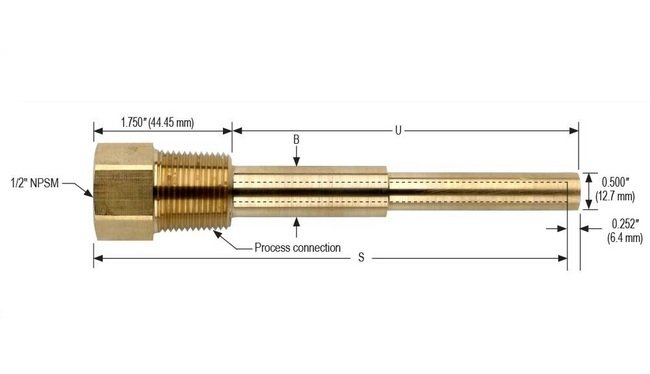

Specifications Bore Size
0.260 in | 6.35 mm
Specifications Insertion Diameter B Max
3/4 in | 19.05 mm
Specifications Instrument Connection Size
1/2 in
Specifications Instrument Connection Type
National Pipe Straight Mechanical (NPSM)
Specifications Material
304 Stainless Steel
Specifications Pressure Ratings At 70 Degree Fahrenheit F
7,000 psi
Specifications Process Connection Size
1/2 in
Specifications Process Connection Type
National Pipe Thread (NPT)
Specifications Shank Diameter Max
0.750 in | 19.05 mm
Specifications Stem Length
12 in
Specifications Stock
Yes
Specifications Style
Stepped Shank
Specifications Type
Thermowell
Specifications Warranty
1 y
