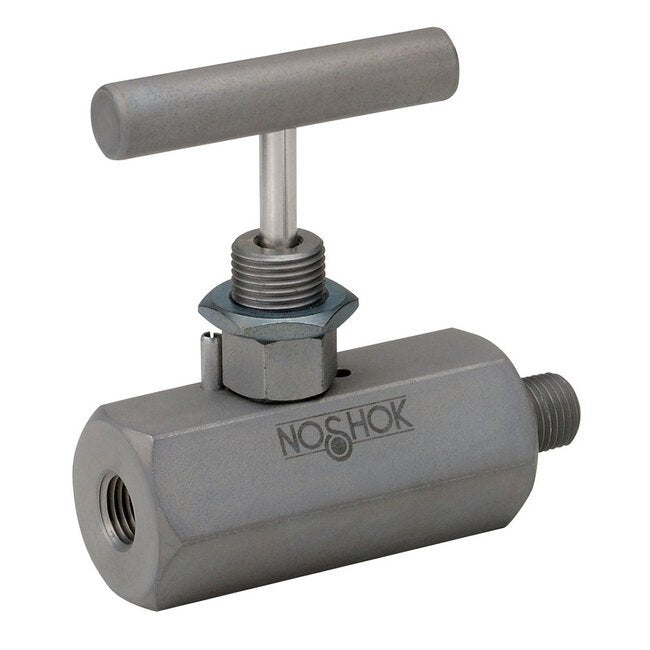

NOSHOK 1/4" NPT Steel Needle Valve with EPDM O-Ring
NOSHOK 1/4" NPT Steel Needle Valve with EPDM O-Ring
SKU:NOS-e8361c
Reliable NOSHOK 1/4" NPT Steel Needle Valve with EPDM O-Ring. Ideal for high-flow capacity needs. Panel mount design for convenience.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
NOSHOK 1/4" NPT Steel Needle Valve with EPDM O-Ring
$99.99
Quantity: 1
Claim Your Seller Account
NOSHOK 1/4" NPT Steel Needle Valve with EPDM O-Ring
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

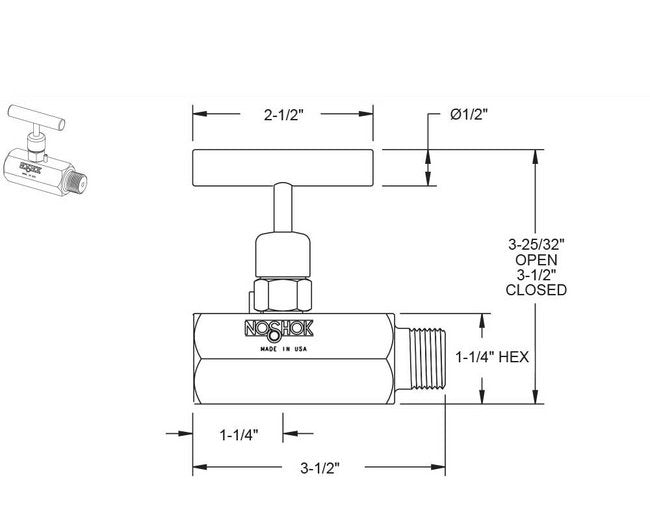

The NOSHOK 500 Series Standard Needle Valve features a 1/4" National Pipe Thread (NPT) Male x Female connection with a steel body and soft seat construction, ensuring high capacity flow and easy cleaning. 100% helium leak tested for performance assurance, this valve boasts a 0.187" orifice size and a unique panel mount design. With an Ethylene Propylene Diene Monomer (EPDM) O-Ring for enhanced durability, this valve is suitable for a wide range of industrial applications.
Product Specifications
Additional Information Additional Information

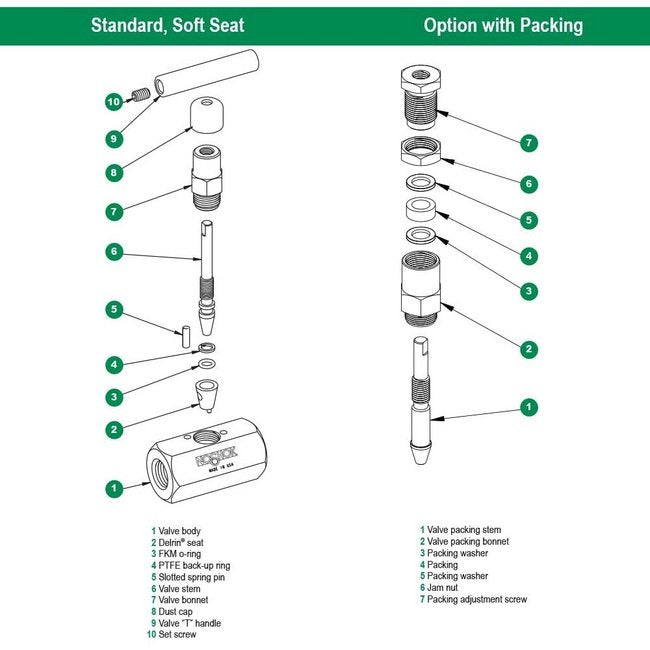

FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE packing optional (certain NPT sizes only)All stem threads are rolled for strength and ease of operationOne-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threadsSlotted spring pin to prevent accidental looseningVinyl dust cap for bonnet and stem (non-packing)
Additional Options Additional Options
Soft SeatsPEEK (PK1)PCTFE (KF1 )Stem TipsNon-rotating (316 stainless) (T1 )O-RingsEPDM (EM1)FFKM (Perfluoroelastomer 3018 or equivalent) (KZ1)NBR (NB1)Handles1-3/8" Phenolic (HL4)1-3/4" Phenolic (HL5 )2-3/8" Phenolic (HL9) (For 3/4" NPT to 1-1/2" NPT only.)
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Note Note
Please note that the standard o-ring in all the NOSHOK valves is FKM and the standard handles are "T" handles (HL2).The handle material will always match the material of the valve, unless otherwise specified. For example, the "T" handle (HL2) on the 504-FFC will be steel. When only the standard configuration is needed, no additional designations are necessary. Please consult the factory for special application requests.All NOSHOK valve products conform to the MSS SP-99 instrument valves standards, and valves supplied with packing also conform to MSS SP-132 compression packing systems for instrument valves standard.
Options And Accessories Assembly Options
NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.
Options And Accessories Installed Options And Accessories
Soft SeatsPEEK (PK1)PCTFE (KF1)Packing PTFE (P1)Stem TipsNon-rotating (316 Stainless Steel) (T1)O-Rings (Other o-ring materials available on request)EPDM (EM1)FFKM (Perfluoroelastomer) 3018 or equivalent (KZ1)NBR (NB1)Panel Mount1 nut (PM1)2 nuts (PM2)Handles1-3/8" Phenolic Handle (HL4)1-3/4" Phenolic Handle (HL5)Cleaning For Oxygen Service (Stainless Steel Only)
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications Connection Size
1/4 in
Specifications Connection Type
National Pipe Thread (NPT)
Specifications Cv Coefficient
0.76
Specifications Material
Zinc-Nickel Plated Steel
Specifications Orifice Size
0.187 in
Specifications O Rings Material
Ethylene Propylene Diene Monomer (EPDM)
Specifications Panel Mountings
Panel Mount (2 Nuts)
Specifications Pressure Ratings At 200 Degree Fahrenheit F Tempe
6,000 psi
Specifications Seat
Soft Seat
Specifications Series
500
Specifications Stem Seal And Type
All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) packing optional for 1/4", 3/8" & 1/2" NPT only
Specifications Type
Needle Valve
Specifications Valve Material
Steel
Specifications Valve Type
Male-Female
Specifications Warranty
3 y
Specifications Weight
1.3 lb
