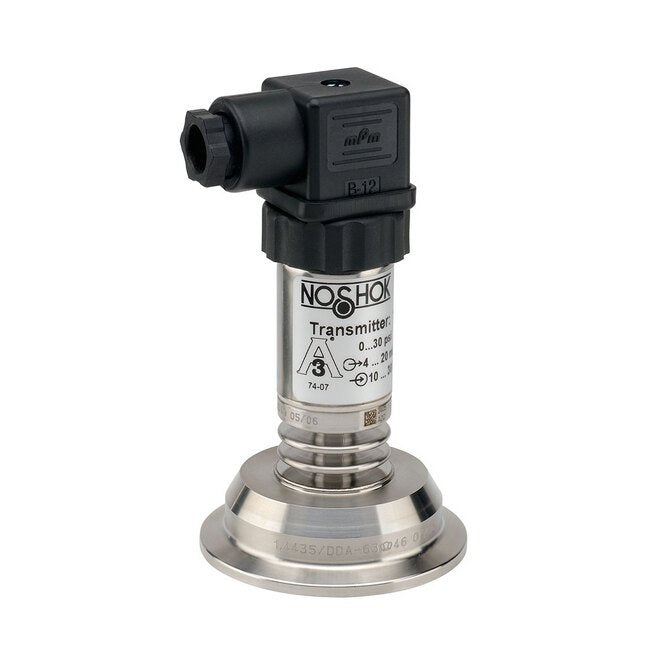

NOSHOK 11 Series 1-1/2" Sanitary Clamp Pressure Transmitter
NOSHOK 11 Series 1-1/2" Sanitary Clamp Pressure Transmitter
SKU:NOS-fd40d5
High-precision 1-1/2" Sanitary Clamp Pressure Transmitter for accurate pressure measurement, 316 Stainless Steel, CIP/SIP compatible, CE compliant.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
NOSHOK 11 Series 1-1/2" Sanitary Clamp Pressure Transmitter
$289.99
Quantity: 1
Claim Your Seller Account
NOSHOK 11 Series 1-1/2" Sanitary Clamp Pressure Transmitter
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your pressure monitoring with the NOSHOK 11 Series 1-1/2" Sanitary Clamp Pressure Transmitter. Crafted with 316 Stainless Steel parts, this transmitter ensures precision with ±0.25% accuracy. Cleaning is a breeze with CIP/SIP compatibility. Also, CE compliant for RFI/EMI/ESD suppression.
Product Specifications
Application Application
Food & beverage processingPasteurization systemsPharmaceuticalMedical
Caution Caution
NOSHOK pressure transmitters or transducers are not to be used in heat sterilization systems as stated in 3A Standard 74-03 paragraph D10.1.2.Diaphragm seal must be installed facing downward or in a vertical position for drainability. Do not install diaphragm seal facing in an upward position.
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.

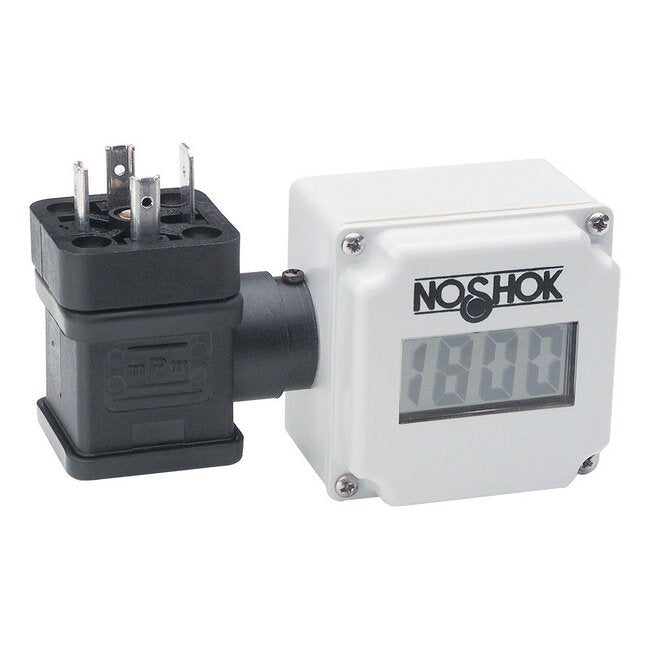

Options And Accessories Digital Indicators
NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters.
Options And Accessories Options And Accessories
NBR Gaskets3/4" (BG-06)1-1/2" (BG-12)2" (BG-16)PTFE Gaskets3/4" (TG-06)1-1/2" (TG-12)2" (TG-16)ASME-BPE Sanitary Clamp3/4" (CR-06)1-1/2" (CR-12)2" (CR-16)Attachable Loop Digital Indicator (1800-0) (For use with DIN EN 175301-803 Form A Electrical Connector (8) only)

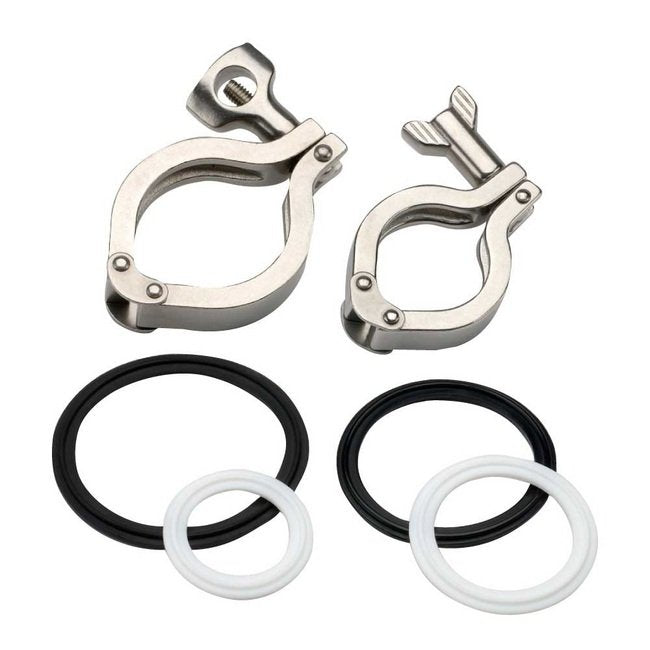

Options And Accessories Sanitary Clamps And Gaskets
Clamp-style fittings are constructed of T304 Stainless Steel; T316 Stainless Steel on requestDouble hinge design for easy installation and removalAvailable in sizes from 3/4" to 4"Standard pressure rating of 500 psi at 70 ºF (21 ºC); up to 3,000 psi rating on requestClamp gaskets are available in NBR, EPDM, PTFE and FKMAll clamps and gaskets meet FDA and 3A sanitary standardsASME-BPE Sanitary Clamp1-1/2" (CR 12)2" (CR 16)2-1/2" (CR 20)3" (CR 24)NBR Gasket1-1/2" (BG 12)2" (BG 16)2-1/2" (BG 20)3" (BG 24)PTFE Gasket1-1/2" (TG 12)2" (TG 16)2-1/2" (TG 20)3" (TG 24)
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications Adjustment
±10% full scale for zero and span
Specifications Clamp Size
1-1/2 in
Specifications Connection Material
316 Stainless Steel
Specifications Current For 4 To 20 Milliampere Ma
0.020 A
Specifications Electrical Connection
M12 x 1 (4-Pin)
Specifications Electrical Protection
Reverse polarity, over-voltage and short circuit protection
Specifications Electromagnetic Rating
European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Specifications Environmental Rating
Ingress Protection (IP65)
Specifications Full Scale Best Fit Straight Line Bfsl Accuracy
0.125 % | 0.25 %
Specifications Housing Material
316 Stainless Steel
Specifications Measuring Element
316 Stainless Steel
Specifications Output Signal
4 mA to 20 mA, 2-Wire, 0 Vdc to 5 Vdc 3-Wire, 1 Vdc to 5 Vdc 3-Wire, 1 Vdc to 6 Vdc 3-Wire, 0 Vdc to 10 Vdc, 3-Wire, 1 Vdc to 11 Vdc 3-Wire
Specifications Power Requirement
10 Vdc to 30 Vdc (4 mA to 20 mA, 2-Wire, 0 Vdc to 5 Vdc, 3-Wire, 1 Vdc to 5 Vdc, 3-Wire, 1 Vdc to 6 Vdc, 3-Wire) 14 Vdc to 30 Vdc (0 Vdc to 10 Vdc, 3-Wire, Vdc to 11 Vdc, 3-Wire)
Specifications Pressure Range
0 to 5 psig
Specifications Resistance For 05 To 45 Direct Current Dc Voltage
⤠4,500 Ω
Specifications Resistance For 0 To 10 Direct Current Dc Voltage
⤠10,000 Ω
Specifications Resistance For 1 To 5 Direct Current Dc Voltage O
⤠5,000 Ω
Specifications Response Time
â¤10 ms
Specifications Seal Fill Fluid
FFL77 White Oil
Specifications Series
11
Specifications Service Life
> 100,000,000 Load Cycles
Specifications Shock According To International Electrotechnical
1,000 g
Specifications Stability
±0.2% full scale for 1 year, non-accumulating
Specifications Storage Temperature Max
-40 ºC | 100 ºF
Specifications Storage Temperature Min
-40 ºC | 212 ºF
Specifications Transducer
Series 615 transducer
Specifications Type
Pressure Transmitter
Specifications Vibration According To International Electrotechn
150 g
Specifications Warranty
3 y
Specifications Weight
1.1 lb
Temperature Ranges Ambient Temperature Range
-40 to 176 ºF | -40 to 80 ºC
Temperature Ranges Compensated Temperature Range
30 to 175 ºF | 0 to 80 ºC
Temperature Ranges Media Temperature Range
-40 to 300 ºF | -40 to 150 ºC
