Noshok 150 Mini Needle Valve, Brass, 1/4" NPT Male-Male, 0.172" Orifice
Noshok 150 Mini Needle Valve, Brass, 1/4" NPT Male-Male, 0.172" Orifice
SKU:NOS-51a293
Durable Noshok 150 Mini Needle Valve for robust performance in tough applications. 100% helium leak tested for reliability.
Regular price
$42.55
Regular price
Sale price
$42.55
Unit price
per
Initiate Order
Noshok 150 Mini Needle Valve, Brass, 1/4" NPT Male-Male, 0.172" Orifice
$42.55
Quantity: 1
Claim Your Seller Account
Noshok 150 Mini Needle Valve, Brass, 1/4" NPT Male-Male, 0.172" Orifice
$42.55
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

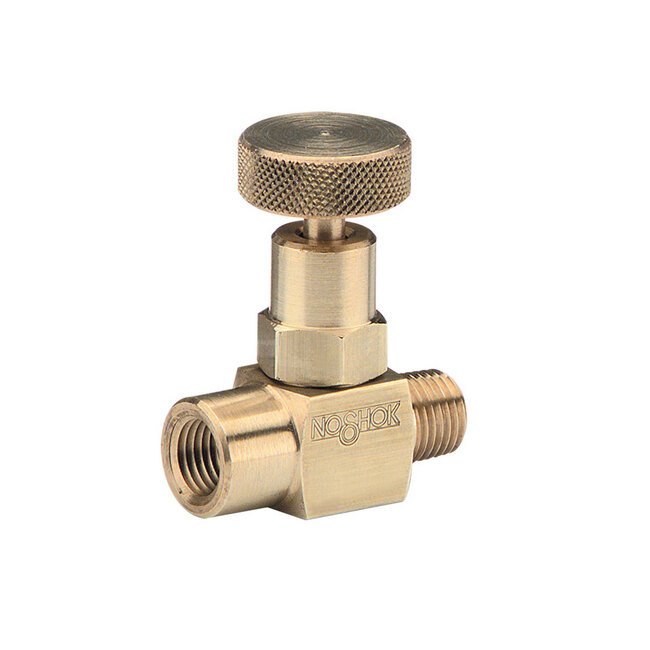

The Noshok 150 Series Mini Needle Valve with Soft Tip is a compact and durable valve designed for robust performance in tough applications. This valve is 100% helium leak tested for guaranteed reliability. Featuring a patented Acetal non-rotating soft tip stem and a metal-to-metal seal, it ensures high performance and longevity. With a pressure rating of 6,000 psi at 200°F, this valve is equipped with special seals for corrosion protection. The Noshok valve complies with MSS SP-99 instrument valve standards and is backed by a 3-year warranty.
Product Specifications
Additional Information Additional Information
FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE packing optionalAll stem threads are rolled for strength and ease of operationPatented body-to-bonnet, metal-to-metal seal is designed to significantly increase the pressure range of the valve (U.S. Patent 7,758,014)
Additional Options Additional Options
Stem TipsPCTFE (T3)PEEK (T4)Regulating Acetal (T10)Regulating PCTFE (T11)Regulating PEEK (T12)O-RingsEPDM (EM1)FFKM (Perfluoroelastomer) 3018 or equivalent) (KZ1)NBR (NB1)Panel MountingsPanel Mount (2 Nuts) (PM2)
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Note Note
All NOSHOK valve products conform to the MSS SP-99 instrument valves standards, and valves supplied with packing also conform to MSS SP-132 compression packing systems for instrument valves standard.Please note that the standard o-ring in all the NOSHOK mini valves is FKM and the standard handles are brass round knurled handles (HL3), steel 1-3/8" mini "T" handles (HL7), and 316SS 1-3/8" mini "T" handles (HL7)The handle material will always match the material of the valve, unless otherwise specified. For example, the round knurled handles (HL3) on a 152-FFB will be brass. When only the standard configuration is needed, no additional designations are necessary. Please consult the factory for special application requests.O-Ring - Other o-ring materials available on request.
Options And Accessories Assembly Options
NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.
Options And Accessories Installed Options And Accessories

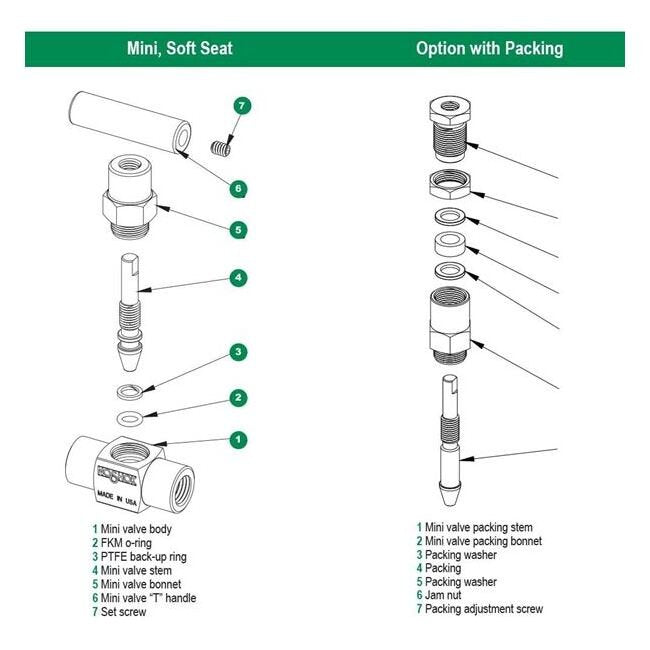

PackingPTFE (P1)Stem TipsPCTFE (T3)PEEK (T4)Regulating Acetal (T10)Regulating PCTFE (T11)Regulating PEEK (T12)O-Rings (Other o-ring materials available on request)EPDM (EM1)FFKM (Perfluoroelastomer) 3018 or equivalent (KZ1)NBR (NB1)Panel Mount1 nut (PM1)2 nuts (PM2)Handles1" Round Knurled Handle (HL3)Cleaning For Oxygen Service (Stainless Steel & Brass Only)
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications Connection Size
1/4 in
Specifications Connection Type
National Pipe Thread (NPT)
Specifications Cv Coefficient
0.42
Specifications Handle Material
Steel
Specifications List Price
42.55 USD
Specifications Material
360 Brass
Specifications Optional Handle Material
Brass
Specifications Orifice Size
0.172 in
Specifications Pressure Ratings At 200 Degree Fahrenheit F Tempe
6,000 psi
Specifications Seat
Hard Seat
Specifications Series
150
Specifications Stem Seal And Type
All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) packing optional
Specifications Type
Needle Valve
Specifications Valve Material
Brass
Specifications Valve Type
Male-Male
Specifications Warranty
3 y
Specifications Weight
0.5 lb
