NOSHOK 1800 Series Loop-Powered Digital Indicator
NOSHOK 1800 Series Loop-Powered Digital Indicator
SKU:NOS-14ffb8
High-accuracy loop-powered digital indicator for NOSHOK pressure transmitters. Programmable, reliable, and compliant with industrial standards.
Regular price
$598.08
Regular price
Sale price
$598.08
Unit price
per
Initiate Order
NOSHOK 1800 Series Loop-Powered Digital Indicator
$598.08
Quantity: 1
Claim Your Seller Account
NOSHOK 1800 Series Loop-Powered Digital Indicator
$598.08
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

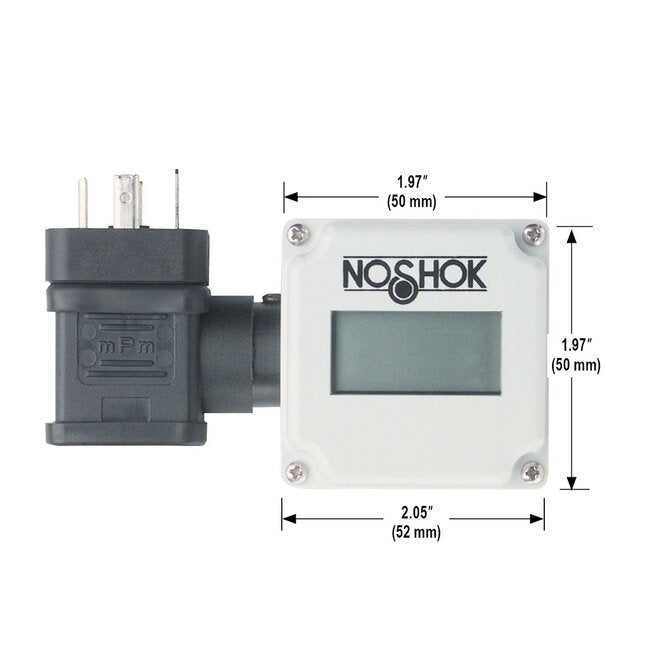

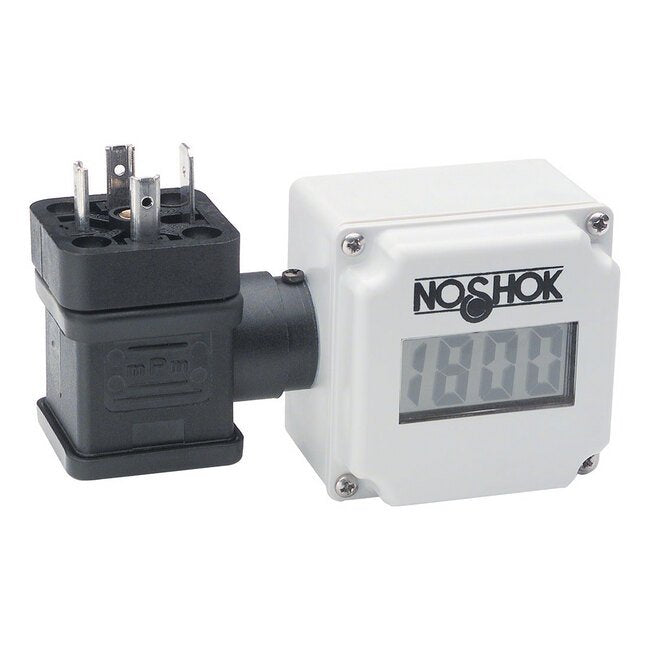

The NOSHOK 1800 Series Attachable Plug-In Loop-Powered Digital Indicator is a high-accuracy solution designed for NOSHOK 11 Series Sanitary, 300, 615/616 Series pressure transmitters, and 800 Series temperature transmitters. Featuring a 4-digit, 0.4' liquid crystal display with a range of -1999 to 9999, this digital indicator is programmable and easily inserted between the transmitter body and the connector. With an IP65 environmental rating, European Conformity (CE) compliance, and operational temperatures ranging from -20°C to 50°C, this indicator meets stringent industrial standards.
Product Specifications
Additional Information Additional Information
User selectable digital filtering improves readability in rapidly varying pressure applicationsAll parameters are stored in non-volatile memory so that reprogramming is not necessary in the event of a power failureCurrently used with 300 Series Pressure Transmitter and 800 Series Temperature Transmitter
Application Application
Hydraulic and pneumatic systemsPumps and compressorsTest equipment and systemsIndustrial machinery and machine toolsHeating, Ventilation, and Air Conditioning (HVAC)Power generationWater and wastewaterStamping and forming presses
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Note Note
Indicate display range or order eg. 0-1,000 for 4 mA to 20 mA.
Options And Accessories Installed Options And Accessories
Optional Relay - 1 x NPN Switch (1)
Specifications Accuracy
<0.2 %
Specifications Digit Accuracy
1 %
Specifications Drop Direct Current Dc Voltage
⤠2 V
Specifications Effect
⤠0.1% of Full Scale/18 ºF (10 ºC) %
Specifications Electrical Connection
DIN 175301-803 Form A
Specifications Electromagnetic Rating
European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326-1, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Specifications Environmental Rating
IP65 per EN60529
Specifications Full Scale Temperature
18 ºF | 10 ºC
Specifications Input Signals
4 to 20 mA
Specifications Input Signals Current
4 to 20 mA
Specifications Key Pad
3 programmable function keys for relay option only, located behind the face plate
Specifications Linearization
2 Point
Specifications List Price
598.08 USD
Specifications Memory
Electrically Erasable Programmable Read-Only Memory (EEPROM)
Specifications Non Condensing Humidity
<90 %
Specifications Operating Temperature Max
50 ºC | 122 ºF
Specifications Operating Temperature Min
-20 ºC | -4 ºF
Specifications Optional Direct Current Dc Voltage
0 to 10 V
Specifications Options
With Relay
Specifications Power Consumption Max
40 mA
Specifications Power Requirement
Loop powered by sensors excitation
Specifications Process Display
4 digit, 0.4" liquid crystal display (-1999 to 9999)
Specifications Relay Option
1 Transistor, N-Switching
Specifications Selectable Filtering
0.2 to 1.5 s
Specifications Series
1800
Specifications Storage Temperature
-4 to 153 ºF | -20 to 70 ºC
Specifications Type
Digital Indicator
Specifications Update Rate
200 ms
Specifications Warranty
1 y
Specifications Weight
3 oz
