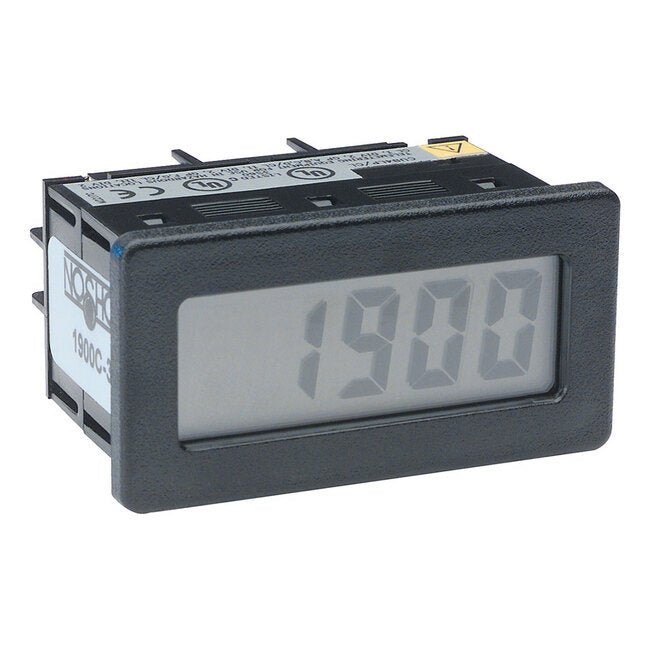

NOSHOK 1900C Series Compact Digital Indicator
NOSHOK 1900C Series Compact Digital Indicator
SKU:NOS-777c25
Compact, precise digital indicator for pressure, temperature, level, force & flow. LCD display with high accuracy & versatility. CE compliant & impact-resistant.
Regular price
$479.83
Regular price
Sale price
$479.83
Unit price
per
Initiate Order
NOSHOK 1900C Series Compact Digital Indicator
$479.83
Quantity: 1
Claim Your Seller Account
NOSHOK 1900C Series Compact Digital Indicator
$479.83
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOSHOK 1900C Series Panel Meter Liquid Crystal Display (LCD) Backlight Compact Loop-Powered Digital Indicator offers a compact and precise digital display for a wide range of measurements such as pressure, temperature, level, force, and flow. With a 3-1/2 digit, 0.6" high display and span range of 0 to 1999, this indicator provides accurate readings. It features positive image reflective LCD, span and zero offset capabilities, and selectable decimal point positions. Suitable for various applications like process indication, pump controls, compressor controls, and safety alarms, this indicator is CE compliant, lightweight, impact-resistant, and meets NEMA 4X and IP65 standards.
Product Specifications
Additional Information Additional Information

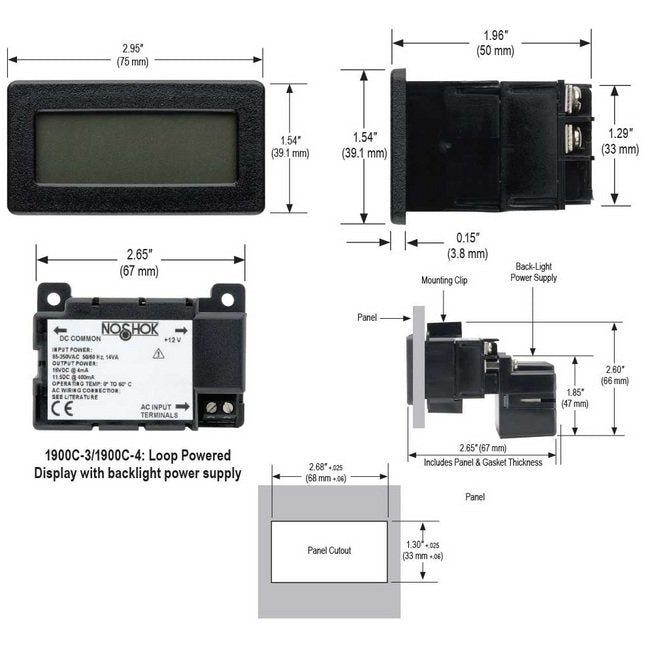

Compact, lightweight, impact-resistant NEMA 4X, IP65 housing with sealed front bezelFits DIN standard cut-out 2.68" (68 mm) x 1.30" (33 mm)CE compliant to suppress RFI, EMI, and ESD
Application Application
Suitable for a wide variety of applications requiring pressure, flow, level, force, and temperature measurement, including:Process indicationOn/Off pump controlsCompressor controlsSafety or shutdown alarms
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Options And Accessories Installed Options And Accessories
Positive Image Reflective LCD Backlight
Specifications Accuracy
0.1 %
Specifications Altitude
0 to 2,000 m
Specifications Digit Accuracy
1 %
Specifications Drop Direct Current Dc Voltage
3.2 V
Specifications Dual Current Range
4 to 20 mA | 10 to 50 mA
Specifications Effect
100 ppm/ºF
Specifications Electrical Connection
Screw terminals at back of case
Specifications Electromagnetic Rating
European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326-1, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Specifications Environmental Rating
National Electrical Manufacturers Association (NEMA) 4, National Electrical Manufacturers Association (NEMA) 4X, Ingress Protection (IP65) (Front of Display Only)
Specifications Indications
Positive Image Reflective Liquid Crystal Display (LCD) Backlight
Specifications Input Signals
Current
Specifications Input Signals Current
4 to 20 mA
Specifications Linearization
2 Point
Specifications List Price
479.83 USD
Specifications Memory
Electrically Erasable Programmable Read-Only Memory (EEPROM)
Specifications Non Condensing Humidity
85 %
Specifications Normal Rejection Mode
60 dB
Specifications Normal Rejection Mode Frequency
50 Hz | 60 Hz
Specifications Operating Temperature Max
60 ºC | 140 ºF
Specifications Operating Temperature Min
0 ºC | 32 ºF
Specifications Option Cards
None
Specifications Power Consumption Max
20 mA | 50 mA
Specifications Power Requirement
Loop powered by sensors excitation
Specifications Power Resistance Max At 20 Ma Current
160 Ω
Specifications Power Resistance Max At 50 Ma Current
65 Ω
Specifications Process Display
3-1/2 digit, 0.6" liquid crystal display (-1999 to 1999)
Specifications Series
1900C
Specifications Shock
30 g
Specifications Storage Temperature
-40 to 176 ºF | -40 to 80 ºC
Specifications Type
Digital Indicator
Specifications Update Rate
400 ms
Specifications Vibration
5 to 500 Hz | 5 g
Specifications Warranty
2 y
Specifications Weight
3.3 oz
