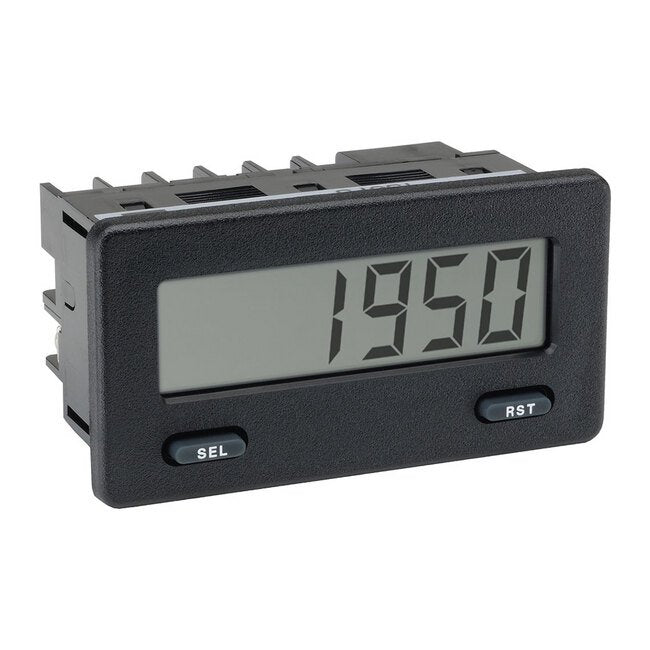

The NOSHOK 1950 Series Compact Smart System Digital Indicator offers the functionality of a full-size panel meter in a compact design, perfect for pressure, flow, level, force, and temperature measurements. With a 5-digit LCD display, expandable options for relays and communication interfaces, and easy front panel programming, this indicator is versatile and user-friendly. It comes with various input signal options such as Current and Direct Current Voltage, ensuring accurate readings and reliable performance. Ideal for applications requiring precise monitoring, control, and communication capabilities.
Product Specifications
Additional Information Additional Information
Compact, lightweight, impact-resistant NEMA 4X, IP65 housing with sealed front bezelCE compliant to suppress RFI, EMI, and ESDRelay, communications and dual sinking output option cards available
Application Application
Suitable for a wide variety of applications requiring pressure, flow, level, force, and temperature measurement, including:Process indicationOn/Off pump controlsCompressor controlsSafety or shutdown alarms
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Options And Accessories 1950 Series Compact Smart System Digital
Plug-in cards that provide alarm and set point relay outputs, analog and digital outputs, including RS 232-C and RS 485 functions are availableNo Option CardSingle Relay Option CardRS232 Serial Communications (with 9-pin D Connector) Option CardRS485 Serial Communications (with Dual RJ11 Connector Option Card

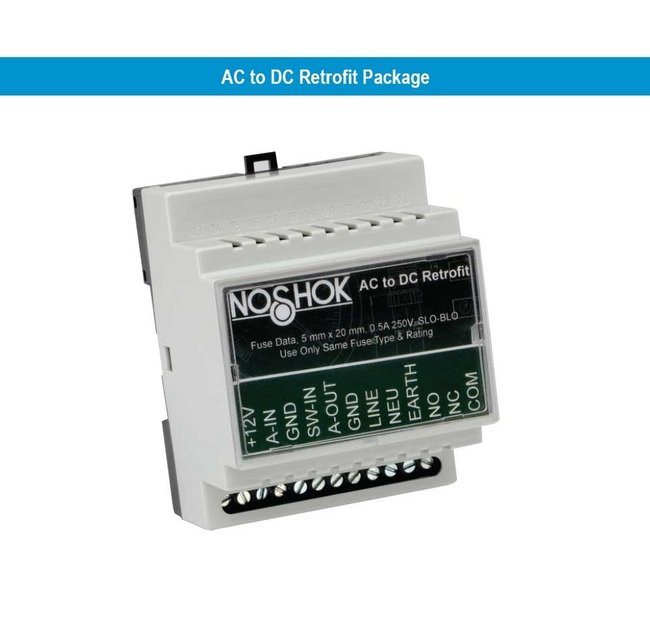

Options And Accessories Ac To Dc Retrofit Package
Easily integrates with non-metallic seal and transmitter/switch assemblies to operate with 110/240 VAC systemsSolid state relay - 10A at 250 VAC DIN rail mountable with NEMA 4X enclosure

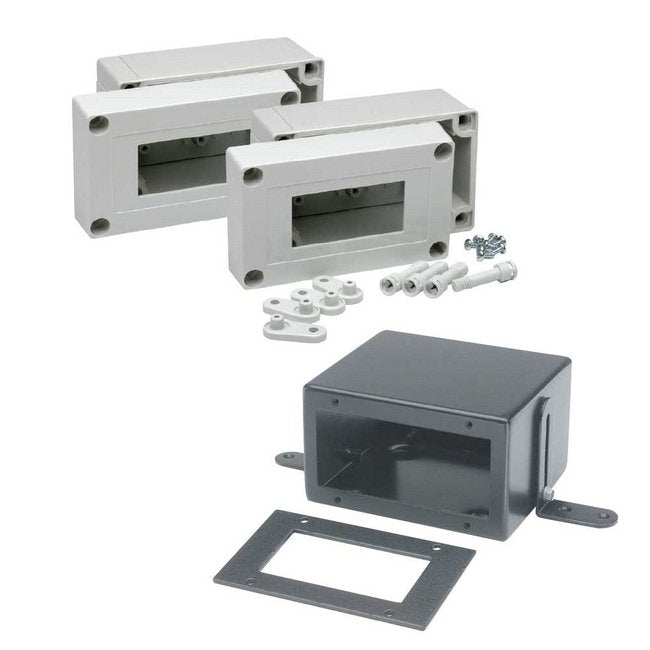

Options And Accessories Nema 4 Enclosure 1950 Series Digital Ind
NEMA 4X/IP65 enclosures (sealed bezel only) standardBlack painted steel enclosures (ENC1) and off-white fiberglass enclosures (ENC2) are optional

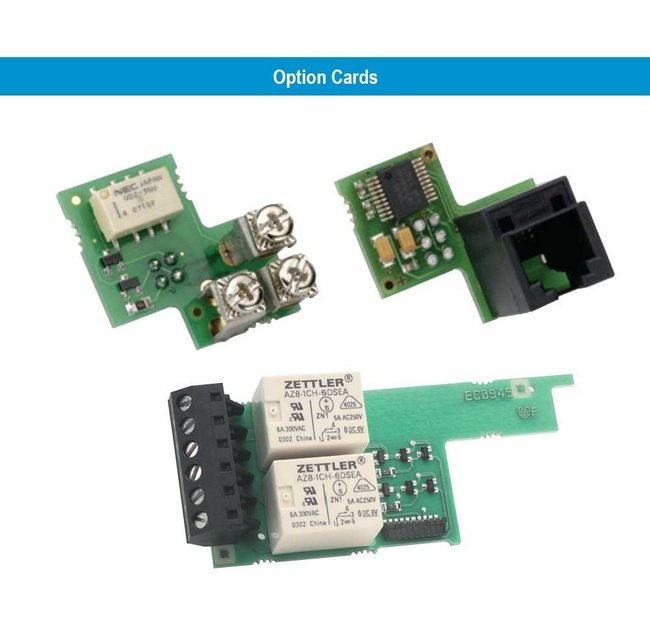

Option Cards Option Cards
Serial communication (RS232 or RS485)Analog output (0-20 mA, 4-20 mA or 0-10 Vdc)Single or Dual Relay (NPN or PNP type)USB programming
Specifications Accuracy
<0.1 %
Specifications Altitude
0 to 2,000 m
Specifications Direct Current Dc Voltage
9 to 28 V
Specifications Display
Reflective
Specifications Display Intensity Power Consumption Max
95 mA
Specifications Effect
â¤0.1 %
Specifications Electrical Connection
Screw terminals at back of case
Specifications Electromagnetic Rating
European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326-1, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Specifications Environmental Rating
National Electrical Manufacturers Association (NEMA) 4, National Electrical Manufacturers Association (NEMA) 4X, Ingress Protection (IP65) (Front of Display Only)
Specifications Full Scale Temperature
18 ºF | 10 ºC
Specifications Input Signals
Current
Specifications Input Signals Current
4 to 20 mA
Specifications Input Signals Direct Current Dc Voltage
0 to 10 V
Specifications Key Pad
2 programmable function keys
Specifications Linearization
2 Point
Specifications List Price
423.68 USD
Specifications Memory
Electrically Erasable Programmable Read-Only Memory (EEPROM)
Specifications Non Condensing Humidity
85 %
Specifications Normal Rejection Mode
60 dB
Specifications Normal Rejection Mode Frequency
50 Hz | 60 Hz
Specifications Operating Temperature Max
75 ºC | 167 ºF
Specifications Operating Temperature Min
-35 ºC | 31 ºF
Specifications Options
Resistance Temperature Device (RTD), Thermocouple
Specifications Process Display
5 digit, 0.48" liquid crystal display
Specifications Reading Minmax
Captures and stores min/max measurement
Specifications Selectable Filtering
0.25 to 1 s
Specifications Series
1900
Specifications Shock
30 g
Specifications Storage Temperature
-31 to 185 ºF | -35 to 85 ºC
Specifications Type
Digital Indicator
Specifications Power Consumption
10 mA
Specifications Update Rate
500 ms
Specifications User Inputs
1 programmable, 28 Vdc max. continuous
