NOSHOK 2-Valve 316 Stainless Steel Soft Seat Manifold Valve
NOSHOK 2-Valve 316 Stainless Steel Soft Seat Manifold Valve
SKU:NOS-55e83a
Reliable NOSHOK 316 SS Soft Seat Manifold Valve for isolating and venting in a single valve, ideal for static pressure applications up to 6,000 psi.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

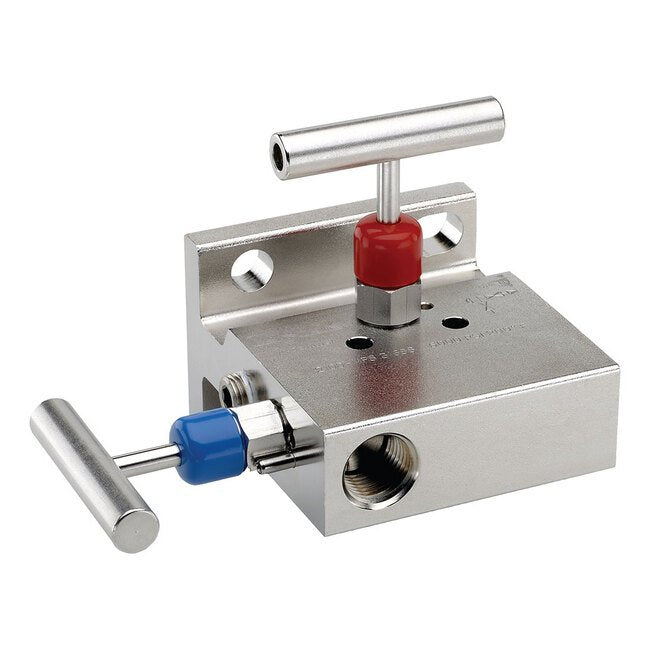

The NOSHOK 2-Valve Soft Seat Manifold Valve offers a convenient solution for isolating and venting processes in a single valve. With a 0.187" orifice, this valve is constructed from durable 316 Stainless Steel, suitable for static pressure applications up to 6,000 psi. Featuring a soft seat design, it ensures reliable performance and easy maintenance. The valve is designed for easy removal of pressure transmitters, switches, or gauges without disturbing the permanent piping. The 90° orientation with block valve on the left and bleed valve on top simplifies installation and operation.
Product Specifications
Additional Information Additional Information

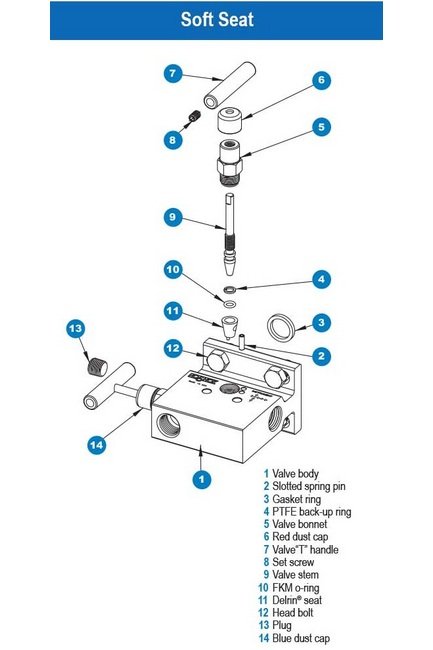

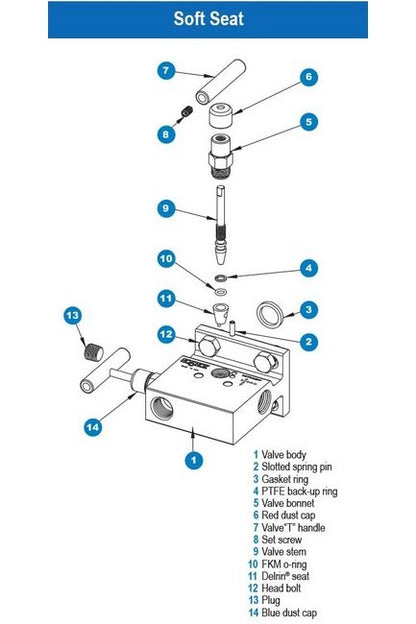

100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability2100 Series valve also features a replaceable Acetal seat, and straight through porting for bidirectional, high capacity flow and easy roddable cleaningBlow-out proof stem provides a secondary stem seal in the full open positionFKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optionalAll stems are 316 Stainless SteelStem and bonnet threads are rolled for strength and ease of operationOne-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threadsSlotted spring pin to prevent accidental looseningVinyl dust caps for bonnets and stems (non-packing)Zinc-nickel plated high tensile strength 4,140 Steel mounting bolts included for flanged connections
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Note Note
All NOSHOK valve products conform to the MSS SP-99 instrument valves standards, and valves supplied with packing also conform to MSS SP-132 compression packing systems for instrument valves standard.
Options And Accessories Connectors
NOSHOK offers Stabilized & Non-Stabilized Connectors, as well as Stabilized Connectors With Integral Block Valve designed to reinforce the entire installation by shifting radial-stress load away from the NPT connections.
Options And Accessories Dielectric Kits Dk Series
Dielectric Kits are designed to maintain the integrity and reliability of the pipeline and piping system through safety and corrosion protection. Dielectric Kits provide a non-conductive barrier between the process piping and the instrument and isolate components from the effects of electrical current. By eliminating metal-to-metal contact, current is halted to prevent corrosion and aid in the cathodic protection of the system.One Piece Dielectric Gasket, Pair, Steel, Acetal (DK1)One Piece Dielectric Gasket, Pair with Stainless Steel Bolts, Stainless Steel, Acetal (DK1-SS)PTFE Gasket with Dielectric Shim, Pair, Steel, PTFE, PVC (DK2)DK1Single piece design combining a Acetal sealing gasket and Acetal dielectric shimBolts, washers and dielectric bushings are included with the kitsCannot be used in conjunction with seal rings or o-ringsSeal rings or o-rings not requiredDK2Used as an alternative to a one-piece design when a separate sealing gasket or o-ring is requiredTwo piece design consisting of a PTFE sealing gasket and PVC dielectric shimBolts, washers and dielectric bushings are included with the kitsSpecifications:Material: Acetal, PVCMax operating temp 150 ºFDielectric strength exceeds 1/32 air arc gap approximately 2,500 VdcAll 316SS products meet the requirements of NACE MR0175/ISO 15156-3.
Options And Accessories Installed Options And Accessories
PackingPTFE Manifold Gasket Ring (RG1-TF1)Graphite Manifold Gasket (RG1-GF1)
Options And Accessories Manifold Kits
The manifold mounting kit is designed for direct or remote mounting to a two-inch pipe stand. This kit can be used with any NOSHOK 2-valve or 3-valve manifold by mounting a Steel or Stainless Steel bracket directly to the manifold body.Flange - Flange Mounting Kit, Steel (MK1-CS1)Flange - Flange Mounting Kit, 304 Stainless Steel (MK1-SS2)Flange - NPT Mounting Kit, Steel (MK2-CS1)Flange - NPT Mounting Kit, Steel Stainless Steel (MK2-SS2)NPT - NPT Mounting Kit, Steel (MK4-CS1) (For 2-Valve Manifolds Only)NPT - NPT Mounting Kit, 304 Stainless Steel (MK4-SS2) (For 2-Valve Manifolds Only)
Options And Accessories O Ring Options
Aflas (AF1) (For 1/8" NPT to 1/2" NPT only)Perfluoroelastomer (FFKM) 3018 (KZ1) (For 1/8" NPT to 1/2" NPT only)Perfluoroelastomer (FFKM) 4079 (KZ2) (For 1/8" NPT to 1/2" NPT only)Simriz 89D (KZ3) (For 1/8" NPT to 1/2" NPT only)Perfluoroelastomer (FFKM) 7075 (KZ4) (For 1/8" NPT to 1/2" NPT only)Elast O Lion (EL1) (For 1/8" NPT to 1/2" NPT only)EPDM 80 (EM1) (For 1/8" NPT to 1/2" NPT only)EPDM 90 (EM2) (For 1/8" NPT to 1/2" NPT only)EPDM 70 (EM3) (For 1/8" NPT to 1/2" NPT only)NBR 70 (NB1) (For 1/8" NPT to 1/2" NPT only)EPDM 70 (EM1) (For 3/4" NPT to 1-1/2" NPT only)Perfluoroelastomer (FFKM) 4079 (KZ2) (For 3/4" NPT to 1-1/2" NPT only)Elast O Lion (EL1) (For 3/4" NPT to 1-1/2" NPT only)Low Temperature FKM (VT1) (For 1/8" NPT to 1/2" NPT only)Low Temperature FKM (VT2) (For 3/4" NPT to 1-1/2" NPT only)
Options Options
o-ring materials, handles, packings, regulating stem and stem tips
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications Connection Size
1/2 in
Specifications Connection Type
National Pipe Thread (NPT) Standard or Flange
Specifications Flow Coefficient Cv
0.76
Specifications Materials
Zinc-nickel plated steel, electropolished 316 Stainless Steel
Specifications Orifice Size
0.187 in
Specifications Pressure Rating At 200 Degree Fahrenheit F Temper
6,000 psi
Specifications Process Type
Static Pressure
Specifications Related Items
MK4-CS, 5 Valve National Pipe Thread (NPT)-National Pipe Thread (NPT)/National Pipe Thread (NPT)-Flange Steel Mounting Kit | MK4-SS2, 5 Valve National Pipe Thread (NPT)-National Pipe Thread (NPT)/National Pipe Thread (NPT)-Flange 304 Stainless Steel Mounting Kit
Specifications Seat
Soft Seat
Specifications Series
2-Valve
Specifications Stem Seal And Type
All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optional
Specifications Syndication Set
1
Specifications Type
Manifold Valve
Specifications Valve Material
Stainless Steel

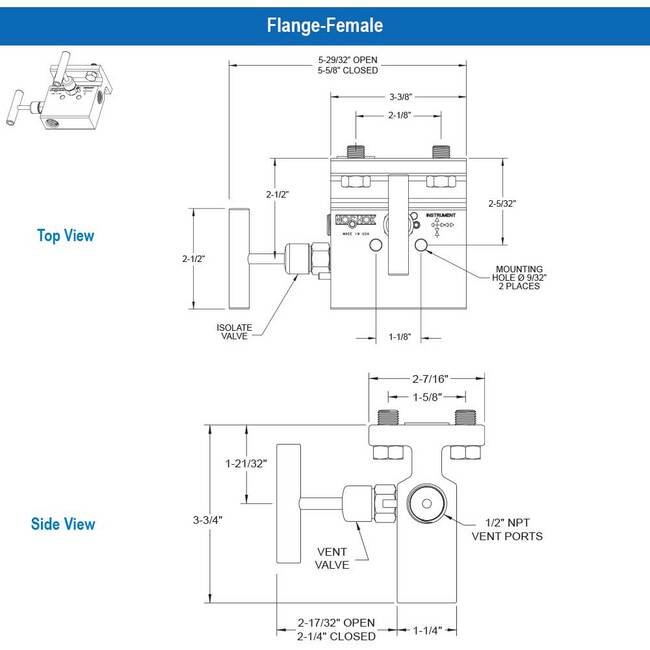

Specifications Valve Type
Flange-Female
Specifications Warranty
3 y
