NOSHOK 200 Series Multiport Needle Valve - 3/4" x 1/2" NPT, 316 Stainless Steel
NOSHOK 200 Series Multiport Needle Valve - 3/4" x 1/2" NPT, 316 Stainless Steel
SKU:NOS-c2b05a
High-performance 316 Stainless Steel multiport needle valve with 0.187" orifice and 10,000 psi rating. Ideal for industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
NOSHOK 200 Series Multiport Needle Valve - 3/4" x 1/2" NPT, 316 Stainless Steel
$129.99
Quantity: 1
Claim Your Seller Account
NOSHOK 200 Series Multiport Needle Valve - 3/4" x 1/2" NPT, 316 Stainless Steel
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

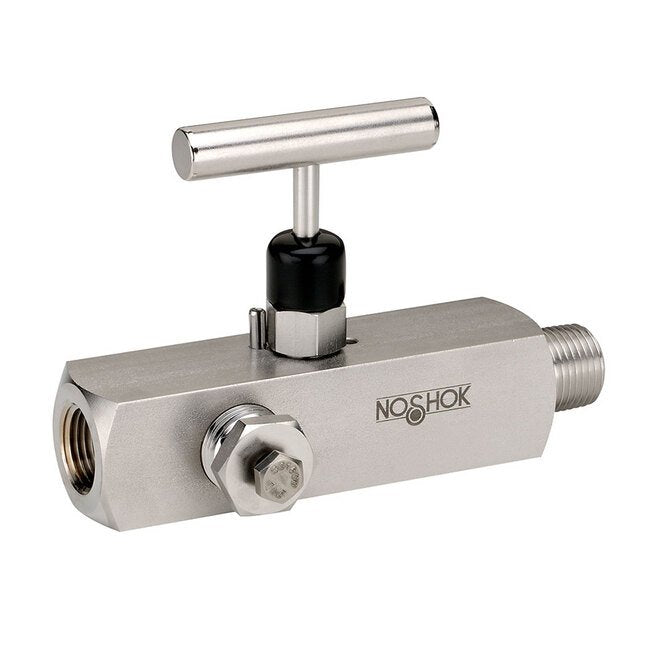

The NOSHOK 200 Series Multiport Needle Valve offers exceptional performance and reliability for industrial applications. Constructed from electropolished 316 Stainless Steel, this valve features a hard seat design with a 0.187" orifice, providing a pressure rating of 10,000 psi at 200°F. With a multiport configuration, it reduces potential leak paths and simplifies gauge connections. The valve is 100% helium leak tested, ensuring consistent quality. Additionally, options for different stem seals and packings are available for customization, making this valve versatile and durable for various system requirements.
Product Specifications
Additional Information Additional Information

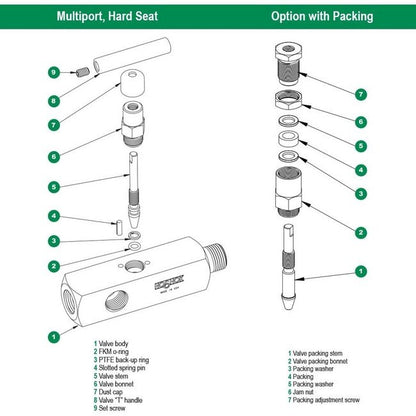

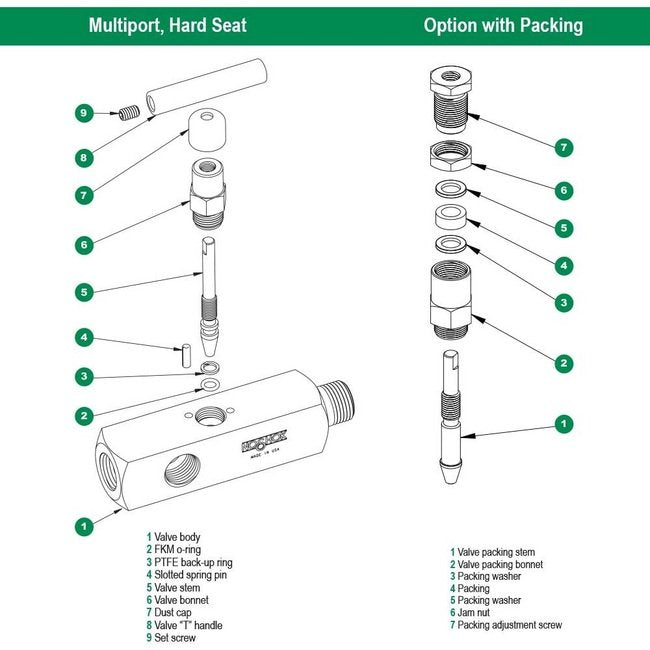

Blow-out proof stem provides a secondary stem seal in the full open positionAll stem threads are rolled for strength and ease of operationOne-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threadsSlotted spring pin to prevent accidental looseningVinyl dust cap for bonnet and stem (non-packing)
Additional Options Additional Options
Stem TipsNon-rotating (316 stainless) (T1 )Ball (440C stainless) (T5)Ball (carbide) (T6)Ball (Monel) (T8)Non-rotating regulating (316 Stainless) (T9)O-RingsEPDM (EM1)FFKM (Perfluoroelastomer 3018 or equivalent) (KZ1)NBR (NB1)Panel MountingsPanel mount (1 nut) (PM1)Panel mount (2 nuts) (PM2)Handles1-13/16" Mini "T" (HL1)1-3/8" Phenolic (HL4)1-3/4" Phenolic (HL5 )
Note Note
Plugs and bleed plugs are available and can be ordered separately.Please note that the standard o-ring in all the NOSHOK valves is FKM and the standard handles are "T" handles (HL2).The handle material will always match the material of the valve, unless otherwise specified. For example, the "T" handle (HL2) on the 204-MFC will be steel. When only the standard configuration is needed, no additional designations are necessary. Please consult the factory for special application requestsAll NOSHOK valve products conform to the MSS SP-99 instrument valves standards, and valves supplied with packing also conform to MSS SP-132 compression packing systems for instrument valves standard.Other o-ring materials available on request.
Options And Accessories Assembly Options
NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.
Options And Accessories Assembly Option For Indication Output An

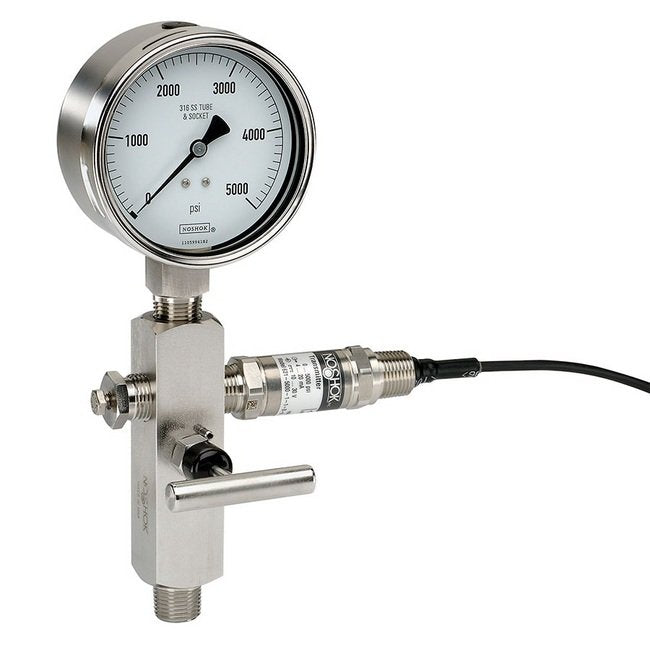

NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.For example, you can simplify your system with this easy-to-install solution from NOSHOK. Three simple components that require a single threaded connection in your piping system will provide local indication, analog output and block/isolate with bleed function. This product grouping is an ideal solution for a variety of applications including oil and gas, and is available in several high pressure ranges, including 5,000, 10,000 and 15,000 psi. Special design for Shale Gas applications.This example represents a general solution; however, we offer a diverse range of gauges, transmitters and valves which are available with a variety of connection options and ranges to suit your needs. (Photo shows 40-400 Series Pressure Gauge (Local Indication), 621 Series Pressure Transmitter (Control Output), and 200 Series Multi-Port Valve (Block/Isolate & Bleed).
Options And Accessories Bleed Valve

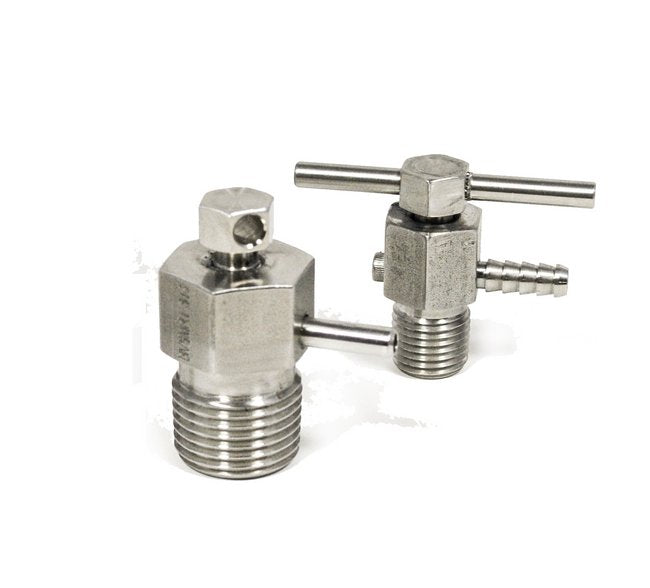

Bleed valves provide a convenient means to relieve process pressures trapped between a shut off valve and the instrument.
Options And Accessories Installed Options And Accessories
Packing (If a packing option is chosen, maximum pressure rating is 6,000 psi. Refer to the Pressure vs. Temperature: Packing Style with Compatible Fluid chart Options Reference Chart)PTFE (P1)Graphite (P2)Non-rotating (316 Stainless Steel) (T1)Ball, 440C Stainless Steel (T5)Ball, carbide (T6)Ball, ceramic (T7)Ball, Monel (T8)Non-rotating regulating, 316 Stainless Steel (T9)O-Rings (Other o-ring materials available on request)EPDM (EM1)FFKM (Perfluoroelastomer) 3018 or equivalent (KZ1)NBR (NB1)Panel Mount1 nut (PM1)2 nuts (PM2)Handles1-13/16" Mini T-Handle (HL1)1-3/8" Phenolic Handle (HL4)1-3/4" Phenolic Handle (HL5)Cleaning For Oxygen Service (Stainless Steel Only)
Options And Accessories Uninstalled Options And Accessories
Plug, Steel (PG1-CS1-ZN1)Plug, Stainless Steel (PG1-SS1-EP)Bleed Plug, Steel, 1/2" NPT (BP1-C)Bleed Plug, Stainless Steel, 1/2" NPT (BP1-S)Bleed Plug, Stainless Steel, 1/4" NPT (BP2-S)
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications Connection Size
3/4 x 1/2 in
Specifications Connection Type
Male National Pipe Thread (MNPT) x Female National Pipe Thread (FNPT)
Specifications Cv Coefficient
0.44
Specifications Material
Electropolished 316 Stainless Steel
Specifications Orifice Size
0.187 in
Specifications Packings
Graphite
Specifications Pressure Ratings At 200 Degree Fahrenheit F Tempe
10,000 psi
Specifications Related Items
804-MS, 1/2" National Pipe Thread (NPT), Male, 316 Stainless Steel, Hard Seat 0.159" Bleed Port Valve | BP1-S, 1/2" National Pipe Thread (NPT) Stainless Steel Bleed Plug | PG1-SS1-EP, 1/2" National Pipe Thread (NPT) Stainless Steel Plug
Specifications Seat
Hard Seat
Specifications Series
200
Specifications Stem Seal And Type
All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optional
Specifications Type
Needle Valve
Specifications Valve Material
Stainless Steel
Specifications Warranty
3 y
Specifications Weight
2.2 lb
