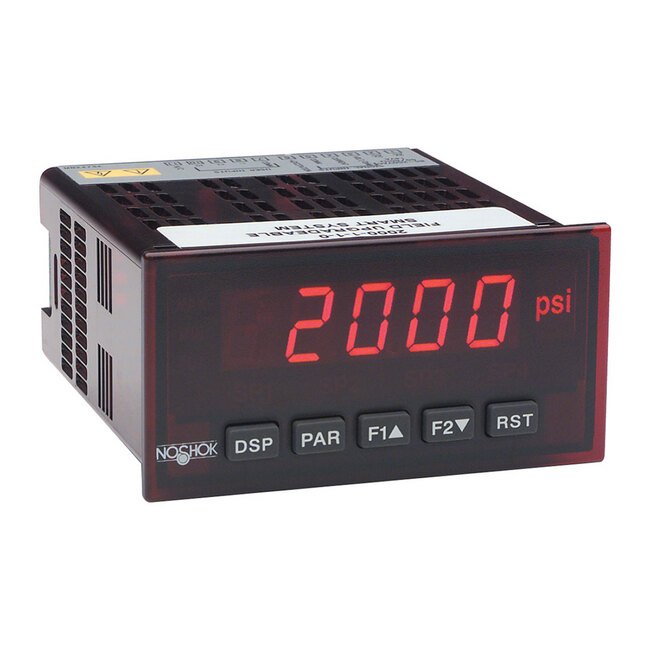

The NOSHOK 2000/2100 Series Smart System Digital Indicator is a cutting-edge solution for precise process indication and control. This intelligent digital indicator features a 5-digit, 0.56" red LED display, advanced technology for stable readouts, and field upgradeability with plug-in option cards. With a wide range of capabilities including 16-point scaling, set point alarms, and serial communication, this indicator excels in applications such as pump/compressor control, safety alarms, and local indication with signal retransmission. CE compliant and meeting NEMA 4X/IP65 environmental ratings, this indicator is a reliable choice for demanding industrial environments.
Product Specifications
Additional Information Additional Information
Easy menu-driven programmingNEMA 4X/IP65 sealed front bezelOptional PC software available for configurationAC or DC input powerSignal totalizer for batch weighing or other timed input processesProgrammable signal response timeStandard DIN panel cutoutCE compliant to suppress RFI, EMI, and ESDSerial communication (RS232 or RS485)DeviceNet communicationMODBUS communication (RS485 RTU and ASCII MODBUS)Profibus communicationAnalog output (0-20 mA, 4-20 mA or 0-10 Vdc)Dual or Quad Relay (NPN or PNP type)USB programming
Application Application
Process indicationOn/Off pump controlsCompressor controlsSafety or shutdown alarmsLocal indication with signalLocal indication with signal retransmission to computer control system
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.

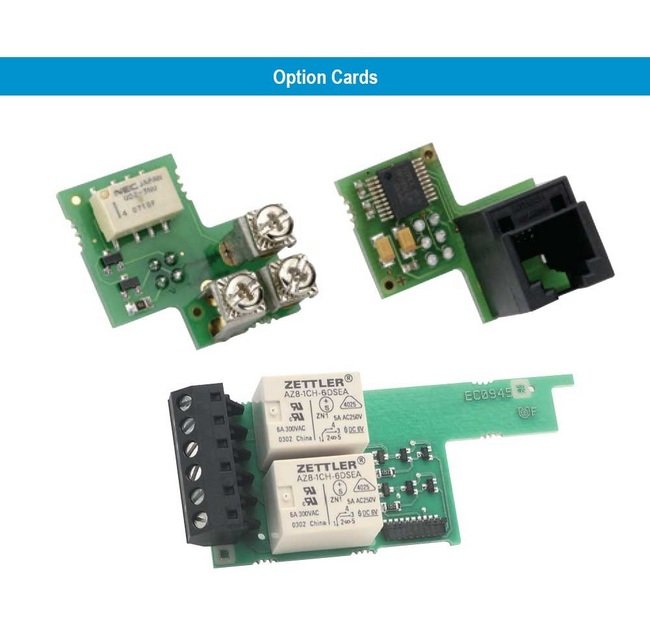

Options And Accessories 20002100 Series Smart System Intelligent
No Option CardQuad Relay Option CardQuad NPN-OC Option CardQuad PNP-OC Option CardRS232-C Serial Communications Option CardRS 485 Serial Communications Option Card

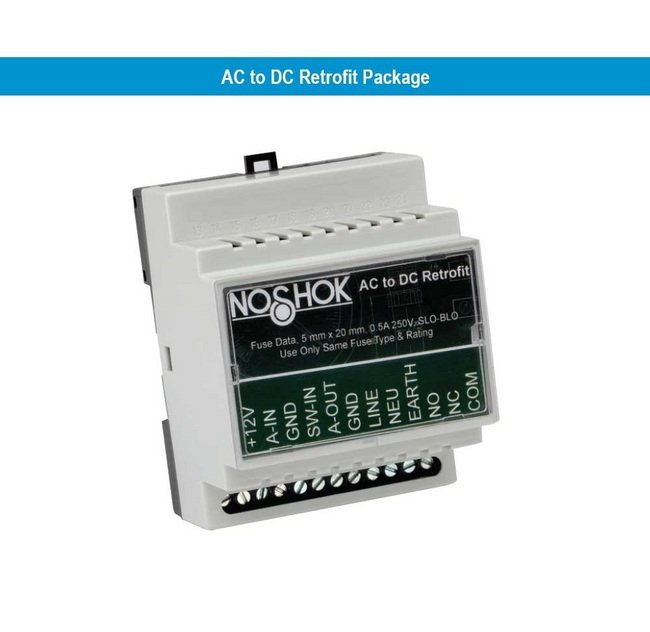

Options And Accessories Ac To Dc Retrofit Package
Easily integrates with non-metallic seal and transmitter/switch assemblies to operate with 110/240 VAC systemsSolid state relay - 10A at 250 VAC DIN rail mountable with NEMA 4X enclosure

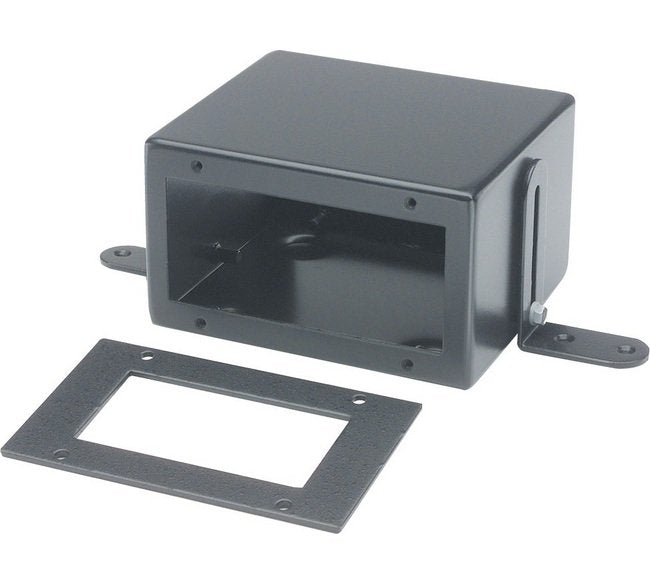

Options And Accessories Nema 4 Enclosure 1950 Series Digital Ind
NEMA 4X/IP65 enclosures (sealed bezel only) standardBlack painted steel enclosures (ENC1) are available
Specifications Accuracy
<0.03% of full scale, 64 ºF to 82 ºF (18 ºC to 50 ºC)<0.12% of full scale, 32 ºF to 122 ºF (0 ºC to 50 ºC)
Specifications Alternating Current Ac Voltage
115 V | 230 V
Specifications Altitude
0 to 2,000 m
Specifications Direct Current Dc Transmitter Power Supply Voltag
24 V
Specifications Direct Current Dc Voltage
0 to 10 V
Specifications Effect
â¤0.1 %
Specifications Electrical Connection
Screw terminals at back of case
Specifications Electromagnetic Rating
European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326-1, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Specifications Environmental Rating
National Electrical Manufacturers Association (NEMA) 4, National Electrical Manufacturers Association (NEMA) 4X, Ingress Protection (IP65) (Front of Display Only)
Specifications Full Scale Temperature
18 ºF | 10 ºC
Specifications Key Pad
3 programmable function keys, 5 total
Specifications Linearization
2 to 16 points, selectable
Specifications Memory
Electrically Erasable Programmable Read-Only Memory (EEPROM)
Specifications Non Condensing Humidity
85 %
Specifications Normal Rejection Mode
60 dB
Specifications Normal Rejection Mode Frequency
50 Hz | 60 Hz
Specifications Operating Temperature Max
50 ºC | 122 ºF
Specifications Operating Temperature Min
0 ºC | 32 ºF
Specifications Options
Resistance Temperature Device (RTD), Thermocouple
Specifications Option Cards
No Option Card
Specifications Power Requirement
AC version 85 Vac to 250 Vac, 50/60 Hz, 15 VA, DC version 11 Vdc to 36 Vdc, 11 W
Specifications Process Display
5 digit, 0.56" Red LED
Specifications Reading Minmax
Captures and stores min/max measurement
Specifications Selectable Filtering
0 to 25 s
Specifications Sensor Excitation
Built-in 24 Vdc
Specifications Series
Single Input
Specifications Shock
25 g
Specifications Storage Temperature
-40 to 140 ºF | -40 to 60 ºC
Specifications Totalizer Time Base
Second, Minute, Hour or Day
Specifications Totalizer Time Batch
Can accumulate from user input
Specifications Type
Digital Indicator
Specifications Update Rate
200 ms
Specifications User Inputs
3 programmable, 30 Vdc max. continuous
Specifications Vibration
5 to 150 Hz | 2 g
