NOSHOK 25 Series 2" Tri Clamp Pressure Transmitter
NOSHOK 25 Series 2" Tri Clamp Pressure Transmitter
SKU:NOS-b30ba8
Advanced 2" Tri Clamp Pressure Transmitter with 0.2% Accuracy, Hart® Protocol, and Stainless Steel Housing
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
NOSHOK 25 Series 2" Tri Clamp Pressure Transmitter
$599.99
Quantity: 1
Claim Your Seller Account
NOSHOK 25 Series 2" Tri Clamp Pressure Transmitter
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

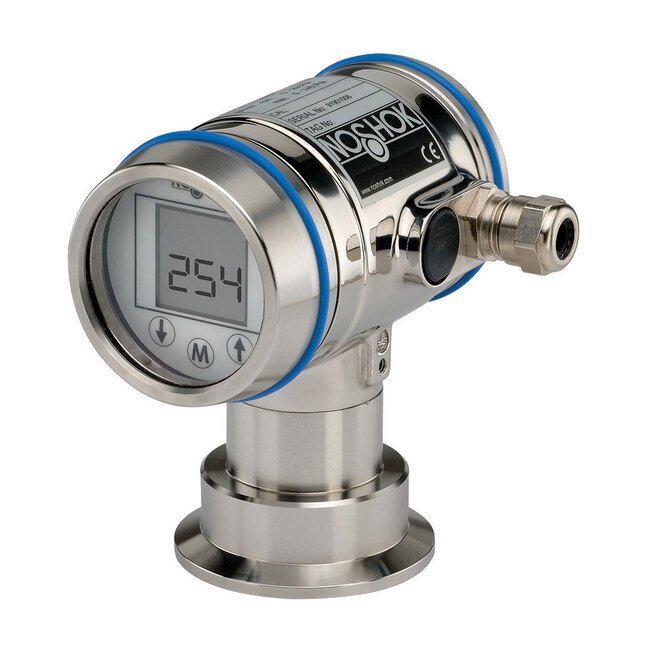

The NOSHOK 25 Series Intelligent Pressure and Level Transmitter is a versatile solution for precise pressure measurement applications. With a Tri-Clamp size of 2 inches and a pressure range adjustable from 0 to 16 inH2O to 0 to 40 inH2O, this transmitter offers exceptional accuracy of 0.2% of the adjusted span. It features a 4 to 20 mA/2-Wire output signal with Hart® Protocol, allowing seamless integration into control systems. The unit is housed in durable 304 Stainless Steel, ensuring longevity and reliability in demanding sanitary environments.
Product Specifications
Additional Information Additional Information
Strong flush diaphragm with minimal fill volumeCan be cleaned-in-place (CIP) or steamed-in-place (SIP)3A Certified
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Options And Accessories Digital Indicators
NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters.
Options And Accessories Options
Transparent Cover (for Display) (TC)

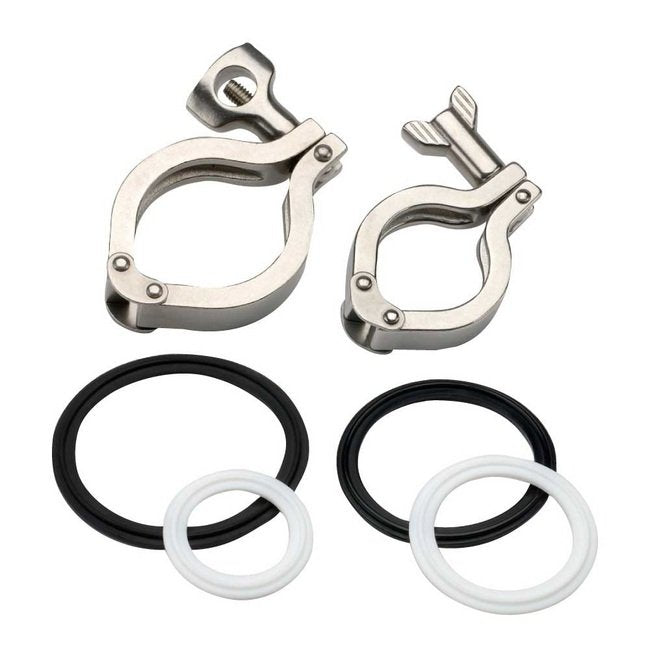

Options And Accessories Sanitary Clamps And Gaskets
Clamp-style fittings are constructed of T304 Stainless Steel; T316 Stainless Steel on requestDouble hinge design for easy installation and removalAvailable in sizes from 3/4" to 4"Standard pressure rating of 500 psi at 70 ºF (21 ºC); up to 3,000 psi rating on requestClamp gaskets are available in NBR, EPDM, PTFE and FKMAll clamps and gaskets meet FDA and 3A sanitary standardsASME-BPE Sanitary Clamp1-1/2" (CR 12)2" (CR 16)2-1/2" (CR 20)3" (CR 24)NBR Gasket1-1/2" (BG 12)2" (BG 16)2-1/2" (BG 20)3" (BG 24)PTFE Gasket1-1/2" (TG 12)2" (TG 16)2-1/2" (TG 20)3" (TG 24)
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications Adjustment
By 3 push buttons on display or optional Hart® signal
Specifications Connection Material
316 Stainless Steel
Specifications Electrical Connection
PG9 Cable Gland
Specifications Environmental Rating
Ingress Protection (IP66) (National Electrical Manufacturers Association (NEMA) 4X), Ingress Protection (IP68) (National Electrical Manufacturers Association (NEMA) 6) optional
Specifications Full Scale Best Fit Straight Line Bfsl Accuracy
0.2 % of adjusted span %
Specifications Housing Material
304 Stainless Steel, 316 Stainless Steel
Specifications Measuring Element
316 Stainless Steel (Hastelloy C or Tantalum optional)
Specifications Output Signal
4 mA to 20 mA 2-wire, 4 mA to 20 mA 2-wire and Hart® signal
Specifications Pressure Range
0 to 16 inH2O | 0 to 40 inH2O
Specifications Response Time
<100 ms
Specifications Series
25
Specifications Service Life
<10 y
Specifications Stability
< 0.1%/year
Specifications Storage Temperature Max
100 ºC | 212 ºF
Specifications Storage Temperature Min
-20 ºC | -4 ºF

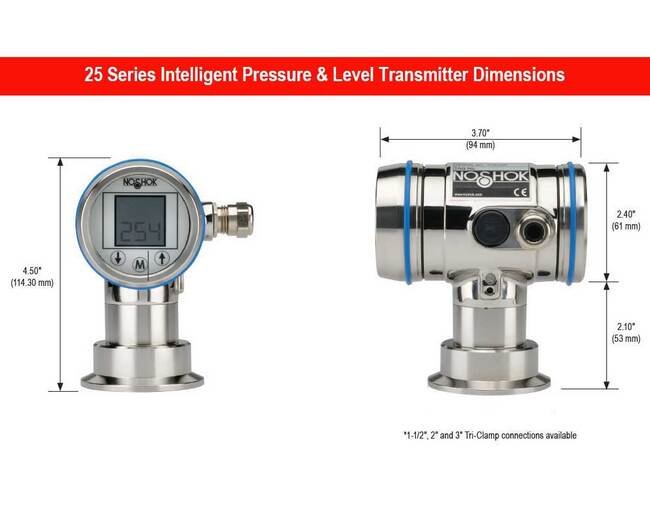

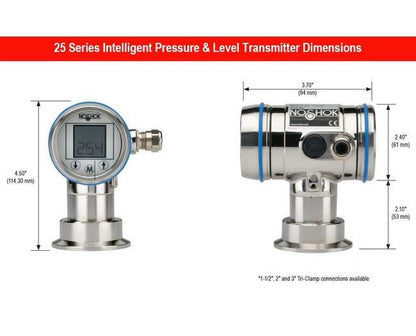

Specifications Tri Clamp Size
2 in
Specifications Type
Pressure and Level Transmitter
Specifications Weight
2.2 lb
