NOSHOK 25 Series 2" Tri Clamp Sanitary Transmitter
NOSHOK 25 Series 2" Tri Clamp Sanitary Transmitter
SKU:NOS-03c8eb
Advanced NOSHOK 25 Series 2" Tri Clamp Sanitary Transmitter with precise range adjustment and durable stainless steel construction.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
NOSHOK 25 Series 2" Tri Clamp Sanitary Transmitter
$399.99
Quantity: 1
Claim Your Seller Account
NOSHOK 25 Series 2" Tri Clamp Sanitary Transmitter
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

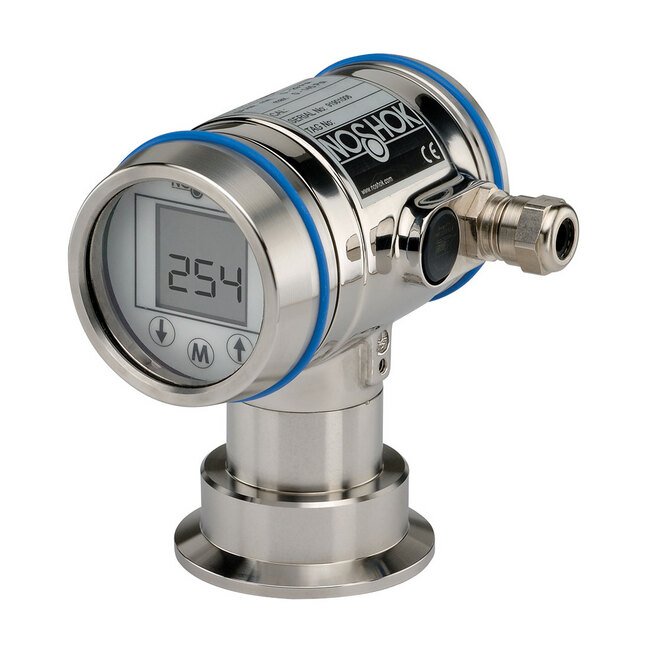

The NOSHOK 25 Series 2" Tri Clamp Sanitary Transmitter is a versatile pressure and level transmitter designed for both consumer and institutional buyers. This intelligent transmitter offers precise range adjustment from 29 to 145 psig with an impressive accuracy of 0.2% of adjusted span. Featuring a durable all stainless steel housing and wetted parts, this transmitter ensures reliable performance in various environments. With advanced features such as active temperature compensation, Hart® protocol output, and easy programming via onboard display, this transmitter is a top choice for applications requiring high-quality pressure and level measurement.
Product Specifications
Additional Information Additional Information
Strong flush diaphragm with minimal fill volumeCan be cleaned-in-place (CIP) or steamed-in-place (SIP)3A Certified
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Options And Accessories Digital Indicators
NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters.
Options And Accessories Options
Transparent Cover (for Display) (TC)

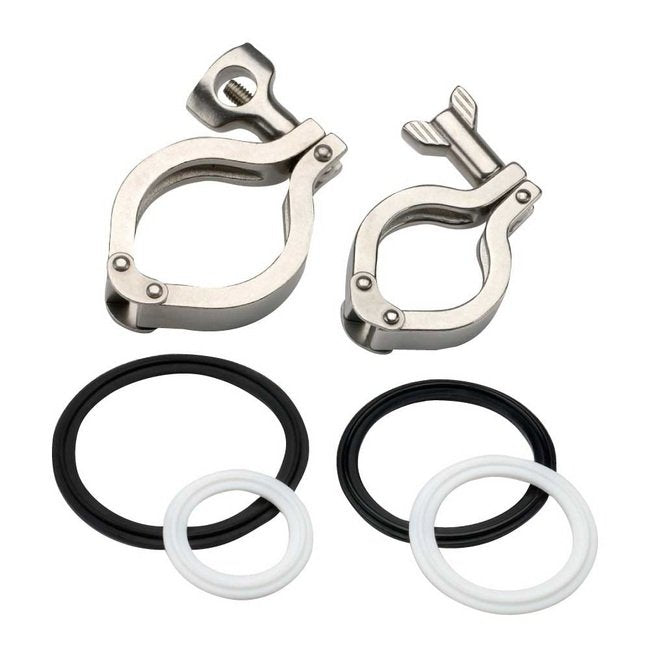

Options And Accessories Sanitary Clamps And Gaskets
Clamp-style fittings are constructed of T304 Stainless Steel; T316 Stainless Steel on requestDouble hinge design for easy installation and removalAvailable in sizes from 3/4" to 4"Standard pressure rating of 500 psi at 70 ºF (21 ºC); up to 3,000 psi rating on requestClamp gaskets are available in NBR, EPDM, PTFE and FKMAll clamps and gaskets meet FDA and 3A sanitary standardsASME-BPE Sanitary Clamp1-1/2" (CR 12)2" (CR 16)2-1/2" (CR 20)3" (CR 24)NBR Gasket1-1/2" (BG 12)2" (BG 16)2-1/2" (BG 20)3" (BG 24)PTFE Gasket1-1/2" (TG 12)2" (TG 16)2-1/2" (TG 20)3" (TG 24)
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications Adjustment
By 3 push buttons on display or optional Hart® signal
Specifications Connection Material
316 Stainless Steel
Specifications Electrical Connection
PG9 Cable Gland
Specifications Environmental Rating
Ingress Protection (IP66) (National Electrical Manufacturers Association (NEMA) 4X), Ingress Protection (IP68) (National Electrical Manufacturers Association (NEMA) 6) optional
Specifications Full Scale Best Fit Straight Line Bfsl Accuracy
0.2 % of adjusted span %
Specifications Housing Material
304 Stainless Steel, 316 Stainless Steel
Specifications Measuring Element
316 Stainless Steel (Hastelloy C or Tantalum optional)
Specifications Output Signal
4 mA to 20 mA 2-wire, 4 mA to 20 mA 2-wire and Hart® signal
Specifications Pressure Range
29 to 145 psig | 0 to 803 inH2O | 0 to 4017 inH2O
Specifications Response Time
<100 ms
Specifications Series
25
Specifications Service Life
<10 y
Specifications Stability
< 0.1%/year
Specifications Storage Temperature Max
100 ºC | 212 ºF
Specifications Storage Temperature Min
-20 ºC | -4 ºF
Specifications Tri Clamp Size
2 in
Specifications Type
Pressure and Level Transmitter
Specifications Weight
2.2 lb
