NOSHOK 3/4" NPT Stepped Shank Brass Thermowell
NOSHOK 3/4" NPT Stepped Shank Brass Thermowell
SKU:NOS-f43fa3
High-quality NPT Brass Thermowell with 9" Stem Length & 1/2" NPSM Instrument Connection, ideal for high-pressure applications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
NOSHOK 3/4" NPT Stepped Shank Brass Thermowell
$79.99
Quantity: 1
Claim Your Seller Account
NOSHOK 3/4" NPT Stepped Shank Brass Thermowell
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOSHOK 3/4" NPT Stepped Shank Brass Thermowell is designed to facilitate easy removal and replacement of temperature instruments without process shutdown. With a 9" stem length and 1/2" NPSM instrument connection, it offers protection to operators while reducing instrument damage. Suitable for 5,000 psi pressure ratings, this thermowell is ideal for HVACP, petrochemical, oil and gas applications, as well as process industries. Made of high-quality brass, it ensures durability and reliability in demanding environments.
Product Specifications
Additional Information Additional Information

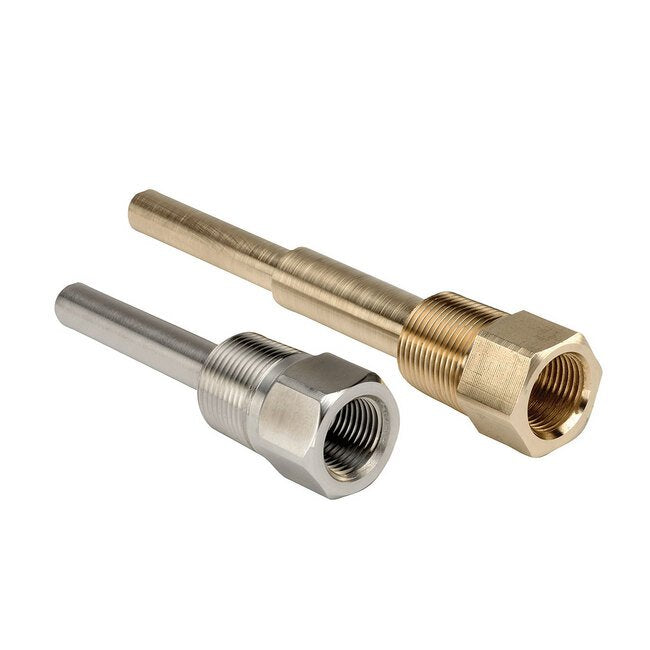

The Female thread will accept the 1/2" NPT Male thread without galling or seizingBrass, 304 Stainless Steel, or 316 Stainless Steel standard material options - other options availableStandard style is stepped, available in straight, tapered and lagging optionsMultiple lagging lengths available
Application Application

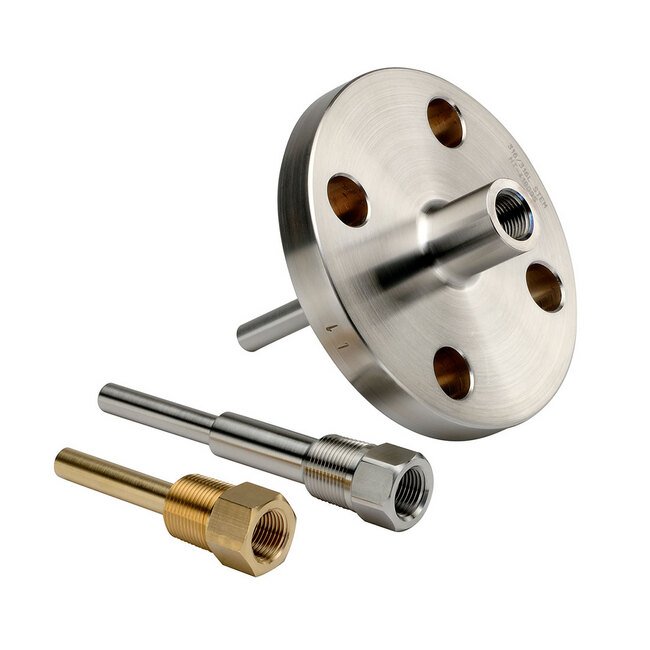

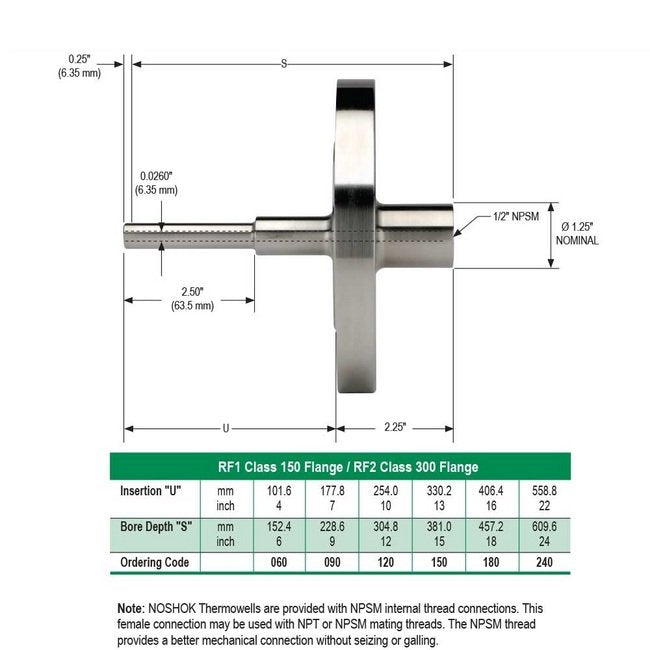

Recommended wherever the process being measured is under pressure, corrosive, abrasive, or moving at a high velocityHVACPetrochemicalOil and gasProcess (flanged thermowells)
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

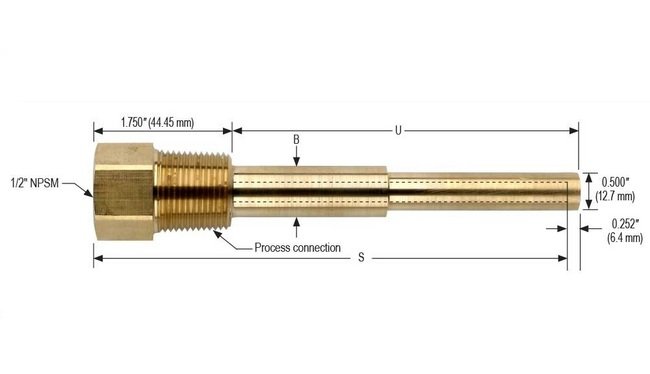

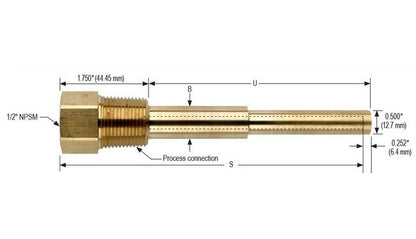

Specifications Bore Size
0.260 in | 6.35 mm
Specifications Insertion Diameter B Max
3/4 in | 19.05 mm
Specifications Instrument Connection Size
1/2 in
Specifications Instrument Connection Type
National Pipe Straight Mechanical (NPSM)
Specifications Material
Brass
Specifications Pressure Ratings At 70 Degree Fahrenheit F
5,000 psi
Specifications Process Connection Size
3/4 in
Specifications Process Connection Type
National Pipe Thread (NPT)
Specifications Shank Diameter Max
0.750 in | 19.05 mm
Specifications Stem Length
9 in
Specifications Stock
Yes
Specifications Style
Stepped Shank
Specifications Type
Thermowell
Specifications Warranty
1 y
