NOSHOK 3/4" NPT Thermowell, 304 Stainless Steel, 4" Length
NOSHOK 3/4" NPT Thermowell, 304 Stainless Steel, 4" Length
SKU:NOS-f75b28
Protect temperature instruments with the durable NOSHOK 3/4" NPT 304 Stainless Steel Thermowell, ideal for high-pressure environments.
Regular price
$58.53
Regular price
Sale price
$58.53
Unit price
per
Initiate Order
NOSHOK 3/4" NPT Thermowell, 304 Stainless Steel, 4" Length
$58.53
Quantity: 1
Claim Your Seller Account
NOSHOK 3/4" NPT Thermowell, 304 Stainless Steel, 4" Length
$58.53
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

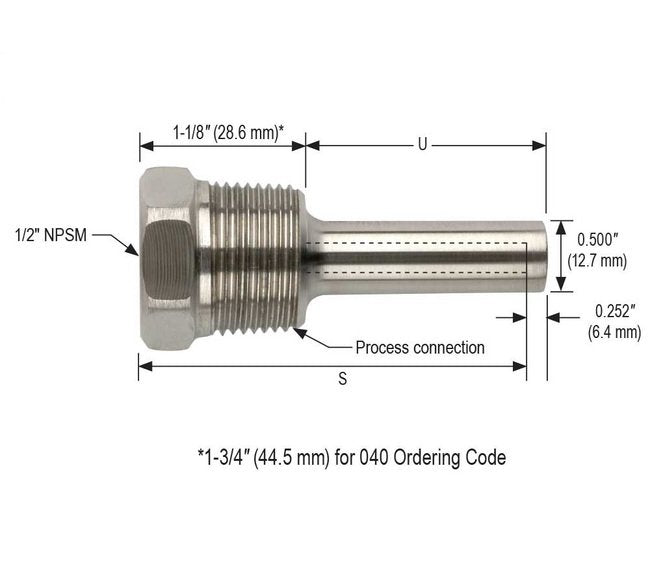

The NOSHOK 3/4" NPT Straight Shank Thermowell offers reliable protection for temperature instruments in industrial processes. Crafted from durable 304 stainless steel, this thermowell features a 1/2" NPSM instrument connection and withstands pressures up to 7,000 psi. Ideal for high-pressure, corrosive, or abrasive environments, it allows for instrument replacement without process shutdown. With options for various process connections and bore sizes, this thermowell ensures measurement accuracy and operator safety.
Product Specifications
Additional Information Additional Information
The Female thread will accept the 1/2" NPT Male thread without galling or seizingBrass, 304 Stainless Steel, or 316 Stainless Steel standard material options - other options availableStandard style is stepped, available in straight, tapered and lagging optionsMultiple lagging lengths available
Application Application
Recommended wherever the process being measured is under pressure, corrosive, abrasive, or moving at a high velocityHVACPetrochemicalOil and gasProcess (flanged thermowells)
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Note Note
Flange Connection not available.
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Specifications Bore Size
0.260 in | 6.35 mm
Specifications Insertion Diameter B Max
3/4 in | 19.05 mm
Specifications Instrument Connection Size
1/2 in
Specifications Instrument Connection Type
National Pipe Straight Mechanical (NPSM)
Specifications List Price
58.53 USD
Specifications Material
304 Stainless Steel
Specifications Pressure Ratings At 70 Degree Fahrenheit F
7,000 psi
Specifications Process Connection Size
3/4 in
Specifications Process Connection Type
National Pipe Thread (NPT)
Specifications Shank Diameter Max
0.750 in | 19.05 mm
Specifications Stem Length
4 in
Specifications Stock
Yes
Specifications Style
Straight Shank
Specifications Type
Thermowell
Specifications Warranty
1 y
