NOSHOK 300 Series 1/2" Steel Needle Valve - Soft Seat Multiport
NOSHOK 300 Series 1/2" Steel Needle Valve - Soft Seat Multiport
SKU:NOS-896191
NOSHOK 300 Series Multiport Needle Valve with Steel Construction and Soft Seat, 6,000 psi, 0.187" Orifice
Regular price
$149.58
Regular price
Sale price
$149.58
Unit price
per
Initiate Order
NOSHOK 300 Series 1/2" Steel Needle Valve - Soft Seat Multiport
$149.58
Quantity: 1
Claim Your Seller Account
NOSHOK 300 Series 1/2" Steel Needle Valve - Soft Seat Multiport
$149.58
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

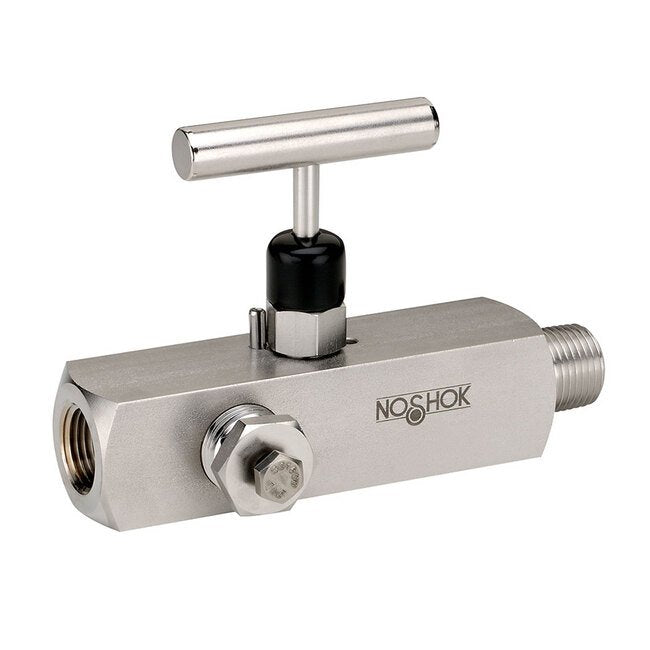

The NOSHOK 300 Series Multiport Needle Valve is designed for reducing leak paths in permanent piping installations. This valve features a zinc-nickel plated steel construction, with a high-pressure rating of 6,000 psi at 200°F. The valve is 100% helium leak tested for reliability and performance. It comes with a Male National Pipe Thread (MNPT) x Female National Pipe Thread (FNPT) connection type, providing optimal sealing. With a 0.187" orifice and a Cv coefficient of 0.64, this valve ensures precise flow control. The valve is equipped with FKM o-ring seals and PTFE packing for corrosion protection. It complies with MSS SP-99 and MSS SP-132 standards.
Product Specifications
Additional Information Additional Information

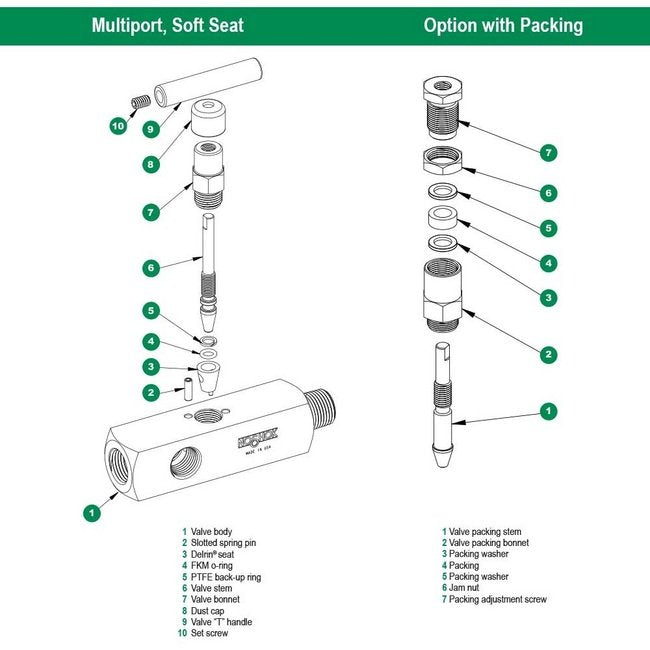

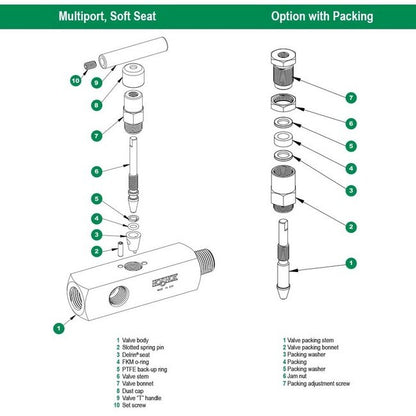

FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE packing optionalAll stem threads are rolled for strength and ease of operationOne-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threadsSlotted spring pin to prevent accidental looseningVinyl dust cap for bonnet and stem (non-packing)
Additional Options Additional Options
Soft SeatsPEEK (PK1)PCTFE (KF1)Stem TipsNon-rotating (316 stainless) (T1 )O-RingsEPDM (EM1)FFKM (Perfluoroelastomer 3018 or equivalent) (KZ1)NBR (NB1)Panel MountingsPanel mount (1 nut) (PM1)Panel mount (2 nuts) (PM2)Handles1-3/8" Phenolic (HL4)1-3/4" Phenolic (HL5 )
Note Note
Plugs and bleed plugs are available and can be ordered separately.Please note that the standard o-ring in all the NOSHOK valves is FKM and the standard handles are "T" handles (HL2).The handle material will always match the material of the valve, unless otherwise specified. For example, the "T" handle (HL2) on the 204-MFC will be steel. When only the standard configuration is needed, no additional designations are necessary. Please consult the factory for special application requestsAll NOSHOK valve products conform to the MSS SP-99 instrument valves standards, and valves supplied with packing also conform to MSS SP-132 compression packing systems for instrument valves standard.Other o-ring materials available on request.
Options And Accessories Assembly Options
NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.
Options And Accessories Bleed Valve

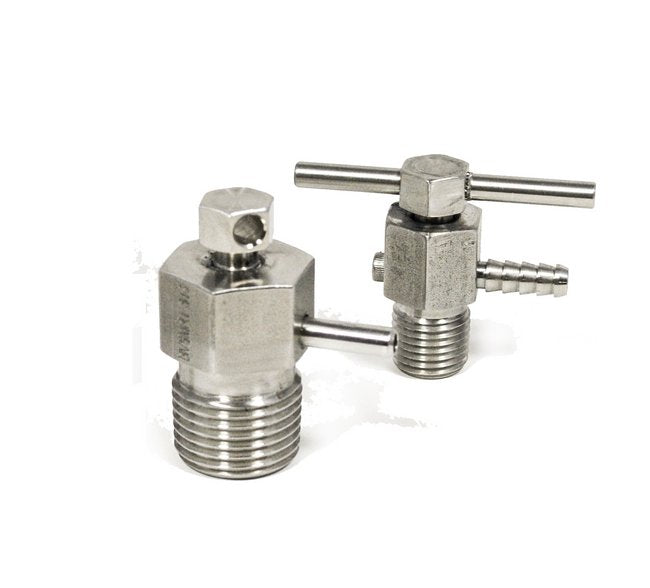

Bleed valves provide a convenient means to relieve process pressures trapped between a shut off valve and the instrument.
Options And Accessories Installed Options And Accessories
Soft SeatsPEEK (PK1)PCTFE (KF1)Packing PTFE (P1)Stem TipsNon-rotating (316 Stainless Steel) (T1)O-Rings (Other o-ring materials available on request)EPDM (EM1)FFKM (Perfluoroelastomer) 3018 or equivalent (KZ1)NBR (NB1)Panel Mount1 nut (PM1)2 nuts (PM2)Handles1-3/8" Phenolic Handle (HL4)1-3/4" Phenolic Handle (HL5)Cleaning For Oxygen Service (Stainless Steel Only)
Options And Accessories Uninstalled Options And Accessories
Plug, Steel (PG1-CS1-ZN1)Plug, Stainless Steel (PG1-SS1-EP)Bleed Plug, Steel, 1/2" NPT (BP1-C)Bleed Plug, Stainless Steel, 1/2" NPT (BP1-S)Bleed Plug, Stainless Steel, 1/4" NPT (BP2-S)
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

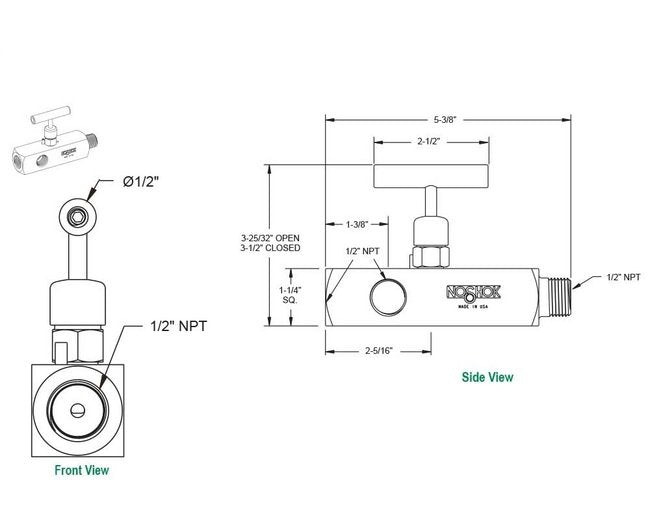

Specifications Connection Size
1/2 in
Specifications Connection Type
Male National Pipe Thread (MNPT) x Female National Pipe Thread (FNPT)
Specifications Cv Coefficient
0.64
Specifications List Price
149.58 USD
Specifications Material
Zinc-Nickel Plated Steel
Specifications Orifice Size
0.187 in
Specifications Pressure Ratings At 200 Degree Fahrenheit F Tempe
6,000 psi
Specifications Related Items
804-MS, 1/2" National Pipe Thread (NPT), Male, 316 Stainless Steel, Hard Seat 0.159" Bleed Port Valve | BP1-S, 1/2" National Pipe Thread (NPT) Stainless Steel Bleed Plug | PG1-SS1-EP, 1/2" National Pipe Thread (NPT) Stainless Steel Plug
Specifications Seat
Hard Seat
Specifications Series
300
Specifications Stem Seal And Type
All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) packing optional
Specifications Type
Needle Valve
Specifications Valve Material
Steel
Specifications Warranty
3 y
Specifications Weight
2.2 lb
