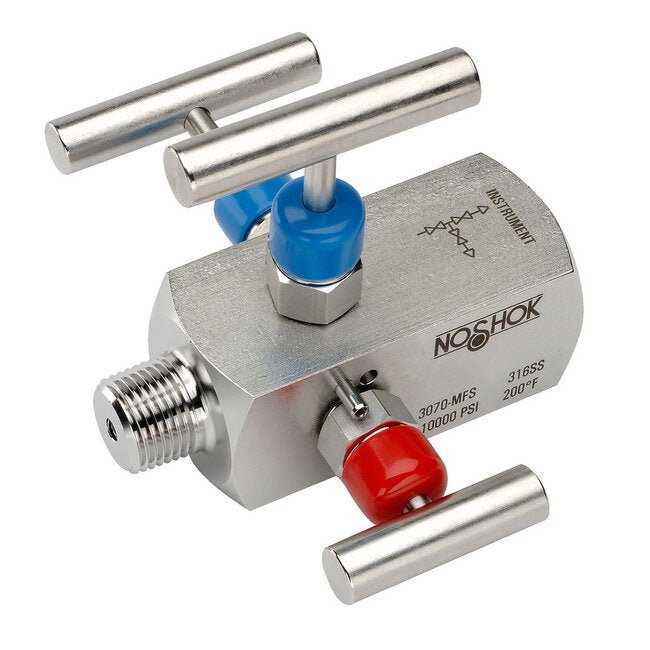

NOSHOK 3070 Series Double Block and Bleed 3-Valve Needle Valves
NOSHOK 3070 Series Double Block and Bleed 3-Valve Needle Valves
SKU:NOS-64cb58
Reliable NOSHOK 3070 Series Double Block and Bleed 3-Valve Needle Valves for precise fluid control.
Regular price
$382.33
Regular price
Sale price
$382.33
Unit price
per
Initiate Order
NOSHOK 3070 Series Double Block and Bleed 3-Valve Needle Valves
$382.33
Quantity: 1
Claim Your Seller Account
NOSHOK 3070 Series Double Block and Bleed 3-Valve Needle Valves
$382.33
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOSHOK 3070 Series Double Block and Bleed 3-Valve Needle Valves provide exceptional isolating and venting capabilities in a single valve, eliminating the need for additional tubing and fittings. Constructed from electropolished 316 Stainless Steel with a Hard Seat, these valves offer a reliable solution for downstream process fluid isolation and upstream fluid exhaustion. With a 0.187" Orifice size and a 10,000 psi Pressure Rating at 200°F, these valves are designed for performance and durability. Additionally, the valves come with various optional accessories to customize as per specific system requirements, ensuring flexibility and efficiency in operation.
Product Specifications
Additional Information Additional Information

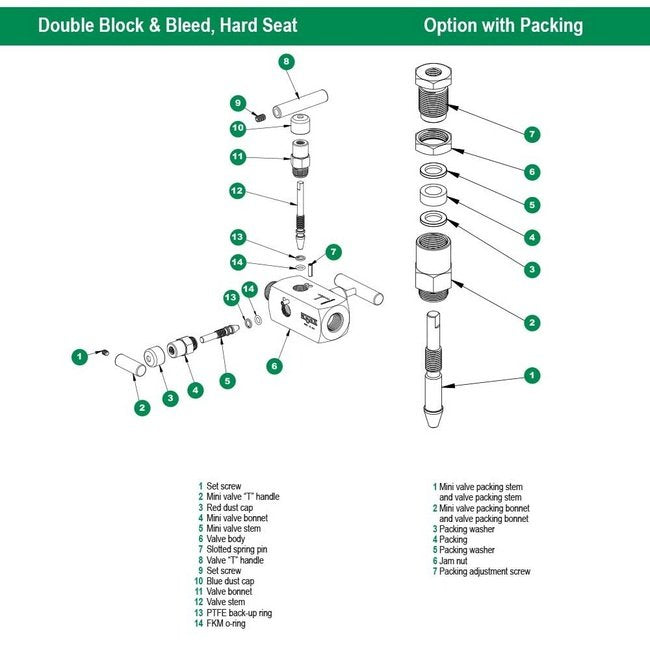

100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliabilityBlow-out proof stem provides a secondary stem seal in the full open positionFKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optionalAll stem threads are rolled for strength and ease of operationOne-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threadsSlotted spring pin to prevent accidental looseningVinyl dust cap for bonnet and stem (non-packing)
Additional Options Additional Options
PackingsPTFE (P1)Graphite (P2)Stem TipsNon-rotating (316 stainless) (T1 )Ball (440C stainless) (T5)Ball (carbide) (T6)Ball (Monel) (T8)Non-rotating regulating (316 Stainless) (T9)O-RingsEPDM (EM1)FFKM (Perfluoroelastomer 3018 or equivalent) (KZ1)NBR (NB1)Handles1-13/16" Mini "T" (HL1)2-1/2" "T" (HL2)1" Round knurled (H3)1-3/8" Phenolic (HL4)1-3/4" Phenolic (HL5 )
Note Note
Packings - If a packing option is chosen, maximum pressure rating is 6,000 psi. Refer to the "Pressure vs Temperature: Packing Style with Compatible Fluid" chart.O-Rings - Other o-ring materials available on request.Please note that the standard o-ring in all the NOSHOK valves is FKM and the standard handles are block "T" handles (HL2) and bleed 1-3/8" mini "T" handle (HL7).The handle material will always match the material of the valve, unless otherwise specified. For example, the "T" handle (HL2) on the 3070-FFC will be steel. When only the standard configuration is needed, no additional designations are necessary. Please consult the factory for special application requests. All NOSHOK valve products conform to the MSS SP-99 instrument valves standards, and valves supplied with packing also conform to MSS SP-132 compression packing systems for instrument valves standard.

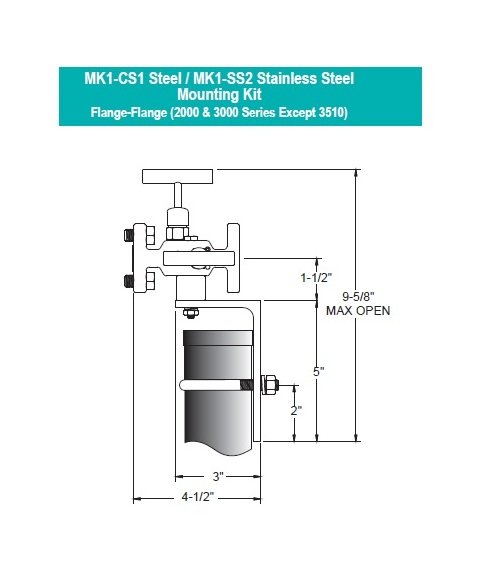

Options And Accessories Assembly Options
NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.
Options And Accessories Installed Options And Accessories
Packing (If a packing option is chosen, maximum pressure rating is 6,000 psi. Refer to the Pressure vs. Temperature: Packing Style with Compatible Fluid chart Options Reference Chart)PTFE (P1)Graphite (P2)Stem TipsNon-rotating (316 Stainless Steel) (T1)Ball, 440C Stainless Steel (T5)Ball, carbide (T6)Ball, ceramic (T7)Ball, Monel (T8)Non-rotating regulating, 316 Stainless Steel (T9)O-Rings (Other o-ring materials available on request)EPDM (EM1)FFKM (Perfluoroelastomer) 3018 or equivalent (KZ1)NBR (NB1)Panel Mount1 nut (PM1)2 nuts (PM2)Handles1-13/16" Mini T-Handle (HL1)2-1/2" T-Handle (HL2)1" Round Knurled Handle (HL3)1-3/8" Phenolic Handle (HL4)1-3/4" Phenolic Handle (HL5)Cleaning For Oxygen Service (Stainless Steel Only)
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

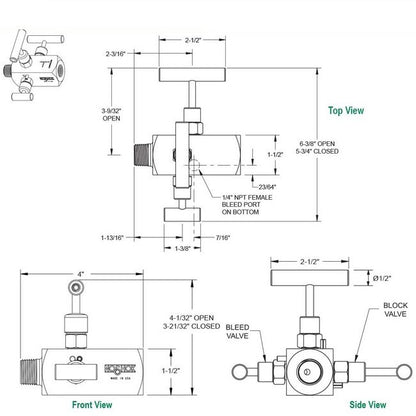

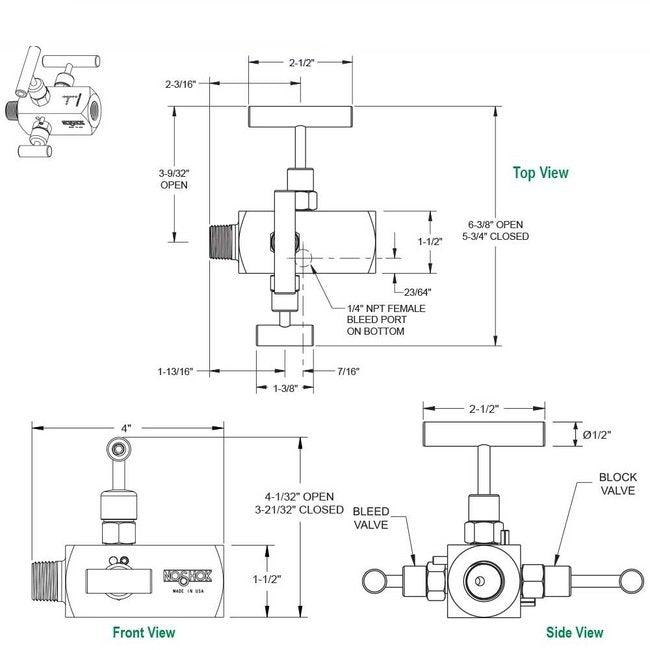

Specifications Connection Size
1/4 in
Specifications Connection Type
National Pipe Thread (NPT)
Specifications Cv Coefficient
0.44
Specifications End Size
1/4
Specifications Extended Length
5-3/8 in
Specifications Length
4 in
Specifications List Price
382.33 USD
Specifications Material
Electropolished 316 Stainless Steel
Specifications Orifice Size
0.187 in
Specifications Pressure Ratings At 200 Degree Fahrenheit F Tempe
10,000 psi
Specifications Process Type
3-Valve Block and Bleed
Specifications Seat
Hard Seat
Specifications Series
3070
Specifications Stem Seal And Type
All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optional
Specifications Type
Needle Valve
Specifications Valve Material
Stainless Steel
Specifications Valve Type
Male-Female
Specifications Warranty
3 y
Specifications Weight
3.2 lb
