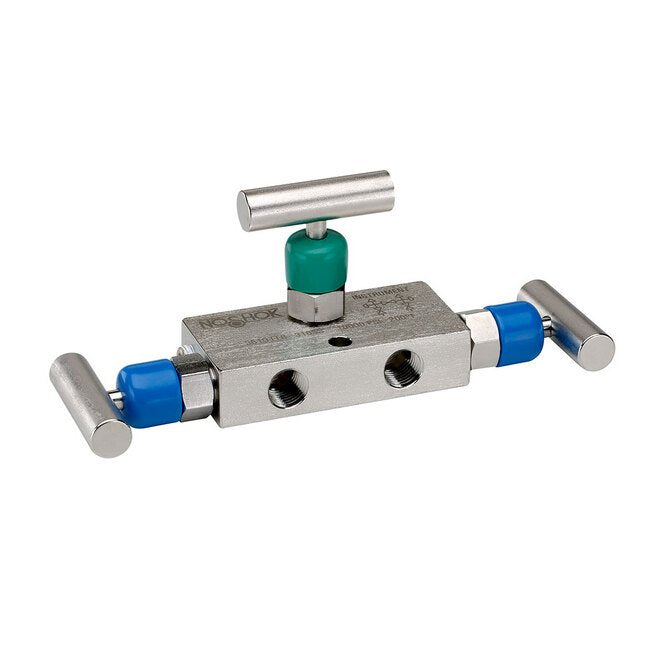

NOSHOK 3610/3710 Series 0.141in Orifice Mini 3-Valve Manifold Valve
NOSHOK 3610/3710 Series 0.141in Orifice Mini 3-Valve Manifold Valve
SKU:NOS-5de716
Premium 3-Valve Manifold Valve for precise and reliable differential pressure measurements in compact spaces.
Regular price
$323.03
Regular price
Sale price
$323.03
Unit price
per
Initiate Order
NOSHOK 3610/3710 Series 0.141in Orifice Mini 3-Valve Manifold Valve
$323.03
Quantity: 1
Claim Your Seller Account
NOSHOK 3610/3710 Series 0.141in Orifice Mini 3-Valve Manifold Valve
$323.03
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

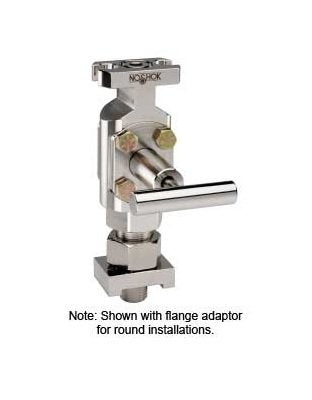

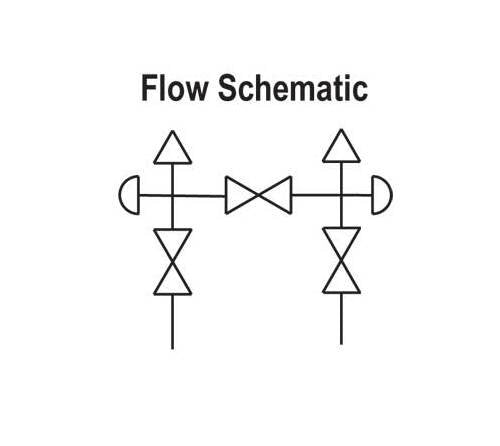

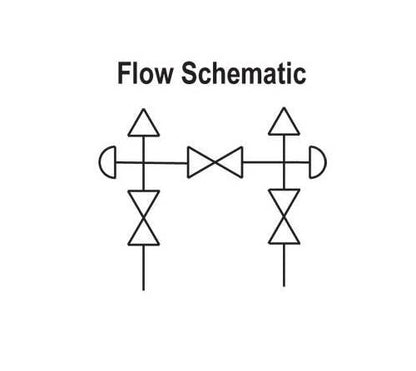

The NOSHOK 3610/3710 Series 3-Valve Manifold Valve is designed for precise differential pressure measurements in compact spaces. Constructed with electropolished 316 Stainless Steel and a soft-tip design, it offers reliable performance at up to 6,000 psi. Featuring a patented Acetal non-rotating soft tip stem and FKM o-ring seals, this valve ensures corrosion resistance and leak-free operation. With 100% helium leak testing and compliance with MSS SP-99 and SP-132 standards, this valve guarantees accuracy and durability.
Product Specifications
Additional Information Additional Information

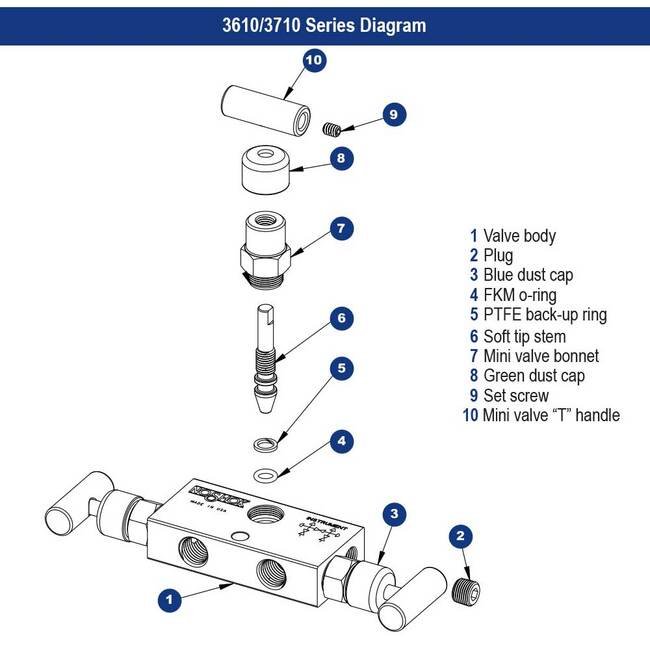

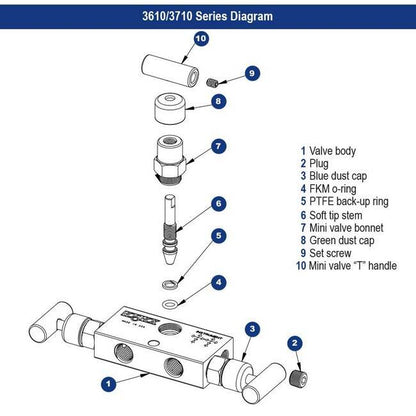

Soft tip valves feature a patented Acetal non-rotating soft tip stem, and a back-up metal-to-metal seal (U.S. Patent 6,820,857)Blow-out proof stem provides a secondary stem seal in the full open positionFKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optionalAll stems are 316 Stainless SteelAll stem threads are rolled for strength and ease of operationOne-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threadsVinyl dust caps for bonnets and stems (non-packing)Patented body-to-bonnet, metal-to-metal seal is designed to significantly increase the pressure range of the valve (U.S. Patent 7,758,014)
Additional Options Additional Options
PackingsPTFE (P1)Graphite (P2)Note for Packings - If a packing option is chosen, maximum pressure rating is 6,000 psi. Refer to the "Pressure vs Temperature: Packing Style with Compatible Fluid" chart.Stem TipsNon-rotating (316 stainless) (T1) - For 3610 only.PEEK (T4) - For 3710 only.Ball (ceramic) (T7) - For 3610 only.Regulating Acetal (T10) - For 3710 only.Acetal (Acetal) (T2) - For 3710 only.Ball (440C stainless) (T5) - For 3610 only.Ball (Monel) (T8) - For 3610 only.Regulating PCTFE (T11) - For 3710 only.PCTFE (T3) - For 3710 only.Ball (carbide) (T6) - For 3610 only.Non-rotating regulating (316 Stainless) (T9) - For 3610 only.Regulating PEEK (T12) - For 3710 only.O-ringsEPDM (EM1)FFKM (Perfluoroelastomer ( FFKM) 3018 or equivalent) (KZ1)NBR (NB1)Note for O-rings - Other o-ring materials available on request.Handles2-1/2" "T" (HL2)1-3/8" Phenolic (HL4)1" Round knurled (HL3)1-3/4" Phenolic (HL5)
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Note Note
All NOSHOK valve products conform to the MSS SP-99 instrument valves standards, and valves supplied with packing also conform to MSS SP-132 compression packing systems for instrument valves standard.Please note that the standard o-ring in all the NOSHOK valves is FKM and the standard handles are 1-3/8" mini "T" handles (HL7).The handle material will always match the material of the valve, unless otherwise specified. For example, the 1-3/8" mini "T" handle (HL7) on the 3710-FFC will be steel. When only the standard configuration is needed, no additional designations are necessary. Please consult the factory for special application requests.
Options And Accessories Connectors
NOSHOK offers Stabilized & Non-Stabilized Connectors, as well as Stabilized Connectors With Integral Block Valve designed to reinforce the entire installation by shifting radial-stress load away from the NPT connections.
Options And Accessories Dielectric Kits Dk Series

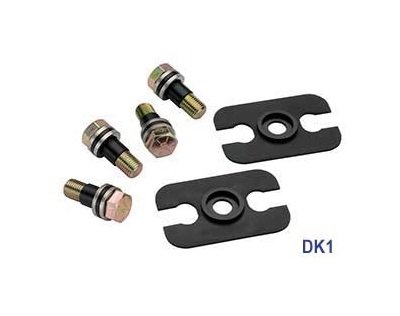

Dielectric Kits are designed to maintain the integrity and reliability of the pipeline and piping system through safety and corrosion protection. Dielectric Kits provide a non-conductive barrier between the process piping and the instrument and isolate components from the effects of electrical current. By eliminating metal-to-metal contact, current is halted to prevent corrosion and aid in the cathodic protection of the system.One Piece Dielectric Gasket, Pair, Steel, Acetal (DK1)One Piece Dielectric Gasket, Pair with Stainless Steel Bolts, Stainless Steel, Acetal (DK1-SS)PTFE Gasket with Dielectric Shim, Pair, Steel, PTFE, PVC (DK2)DK1Single piece design combining a Acetal sealing gasket and Acetal dielectric shimBolts, washers and dielectric bushings are included with the kitsCannot be used in conjunction with seal rings or o-ringsSeal rings or o-rings not requiredDK2Used as an alternative to a one-piece design when a separate sealing gasket or o-ring is requiredTwo piece design consisting of a PTFE sealing gasket and PVC dielectric shimBolts, washers and dielectric bushings are included with the kitsSpecifications:Material: Acetal, PVCMax operating temp 150 ºFDielectric strength exceeds 1/32 air arc gap approximately 2,500 VdcAll 316SS products meet the requirements of NACE MR0175/ISO 15156-3.
Options And Accessories Differential Pressure Gauges
Differential pressure gauges measure and visually indicate the difference between two pressure points within a process system. NOSHOK offers Piston Type and Diaphragm Type Differential Pressure Gauges.
Options And Accessories Installed Options And Accessories
PackingPTFE Manifold Gasket Ring (RG1-TF1)Graphite Manifold Gasket (RG1-GF1)
Options And Accessories Manifold Kits
The manifold mounting kit is designed for direct or remote mounting to a two-inch pipe stand. This kit can be used with any NOSHOK 2-valve or 3-valve manifold by mounting a Steel or Stainless Steel bracket directly to the manifold body.Flange - Flange Mounting Kit, Steel (MK1-CS1)Flange - Flange Mounting Kit, 304 Stainless Steel (MK1-SS2)Flange - NPT Mounting Kit, Steel (MK2-CS1)Flange - NPT Mounting Kit, Steel Stainless Steel (MK2-SS2)NPT - NPT Mounting Kit, Steel (MK2-CS1) (For 3-Valve Manifolds Only)NPT - NPT Mounting Kit, Stainless Steel (MK2-SS2) (For 3-Valve Manifolds Only)
Options And Accessories O Ring Options
Aflas (AF1) (For 1/8" NPT to 1/2" NPT only)Perfluoroelastomer (FFKM) 3018 (KZ1) (For 1/8" NPT to 1/2" NPT only)Perfluoroelastomer (FFKM) 4079 (KZ2) (For 1/8" NPT to 1/2" NPT only)Simriz 89D (KZ3) (For 1/8" NPT to 1/2" NPT only)Perfluoroelastomer (FFKM) 7075 (KZ4) (For 1/8" NPT to 1/2" NPT only)Elast O Lion (EL1) (For 1/8" NPT to 1/2" NPT only)EPDM 80 (EM1) (For 1/8" NPT to 1/2" NPT only)EPDM 90 (EM2) (For 1/8" NPT to 1/2" NPT only)EPDM 70 (EM3) (For 1/8" NPT to 1/2" NPT only)NBR 70 (NB1) (For 1/8" NPT to 1/2" NPT only)EPDM 70 (EM1) (For 3/4" NPT to 1-1/2" NPT only)Perfluoroelastomer (FFKM) 4079 (KZ2) (For 3/4" NPT to 1-1/2" NPT only)Elast O Lion (EL1) (For 3/4" NPT to 1-1/2" NPT only)Low Temperature FKM (VT1) (For 1/8" NPT to 1/2" NPT only)Low Temperature FKM (VT2) (For 3/4" NPT to 1-1/2" NPT only)
Options Options
o-ring materials, handles, packings, regulating stem and stem tips
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications Connection Size
1/4 in
Specifications Connection Type
National Pipe Thread (NPT)
Specifications Flow Coefficient Cv
0.44
Specifications List Price
323.03 USD
Specifications Materials
Zinc-nickel plated steel, electropolished 316 Stainless Steel
Specifications Orifice Size
0.141 in
Specifications Pressure Rating At 200 Degree Fahrenheit F Temper
6,000 psi
Specifications Process Type
Differential Pressure
Specifications Related Items
MK2-CS, 2/3 Valve National Pipe Thread (NPT)-National Pipe Thread (NPT)/National Pipe Thread (NPT)-Flange Steel Mounting Kit | MK2-SS2, 2/3 Valve National Pipe Thread (NPT)-National Pipe Thread (NPT)/National Pipe Thread (NPT)-Flange 304 Stainless Steel Mounting Kit
Specifications Seat
Soft Tip
Specifications Series
3-Valve
Specifications Stem Seal And Type
All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optional
Specifications Type
Manifold Valve
Specifications Valve Material
Stainless Steel
Specifications Valve Type
Female-Female
Specifications Warranty
3 y
