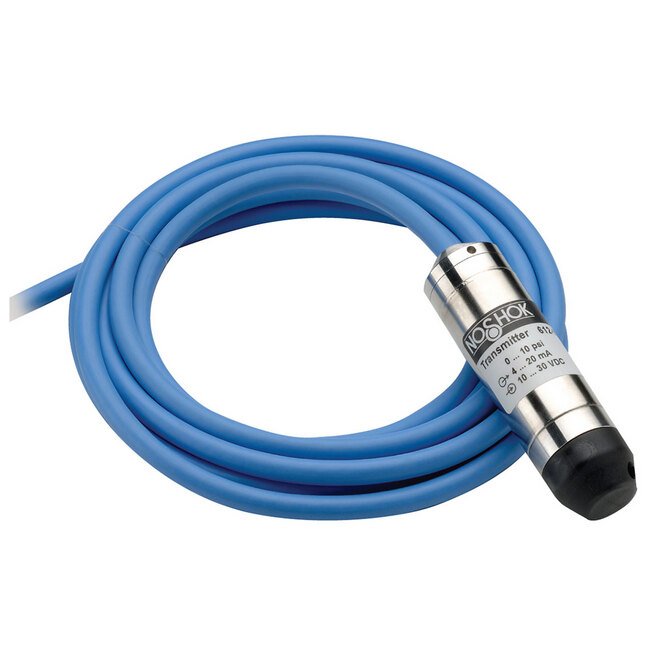

The NOSHOK 612 Series Submersible Level Transmitter is a top-of-the-line solution designed for precise pressure measurement in industrial applications. With a pressure range of 0 to 10 psig and a remarkable accuracy of 0.25%, this transmitter ensures reliable performance. It features a Full Scale Best Fit Straight Line (BFSL) for superior measurement accuracy, a 4 to 20 mA output signal for easy data transmission, and a durable construction with 316 Stainless Steel, Polyamide, and Polyurethane wetted parts. Ideal for tank monitoring, water & wastewater management, and well head measurement, this transmitter is CE compliant and meets industry standards for environmental protection and electromagnetic compatibility.
Product Specifications
Additional Information Additional Information
CE compliant to suppress RFI, EMI and ESDIdeal for applications including irrigation, tank monitoring, water & wastewater and well head measurement
Application Application
IrrigationTank monitoringWater & wastewaterWell head measurement
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.

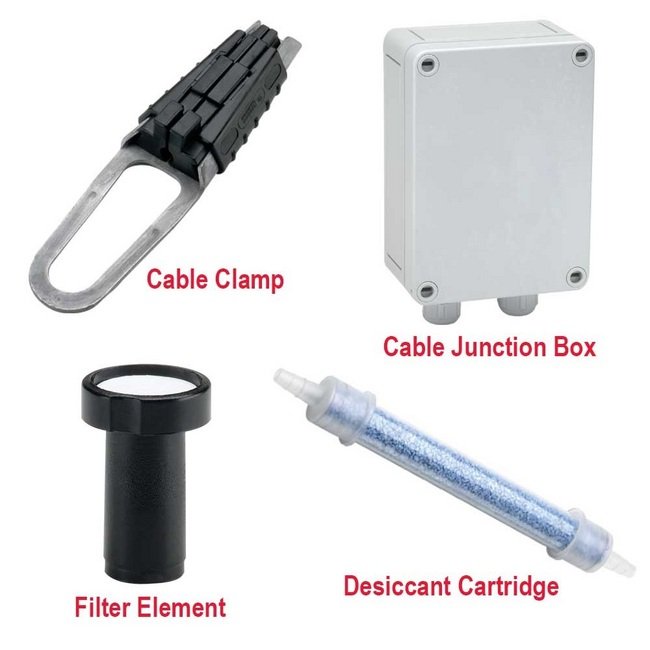

Options And Accessories Options And Accessories
Cable Clamp (CBC) Cable Junction Box (NEMA 4X) (JB)Desiccant Cartridge (DC)Filter Element (FE)Lightning Protection (LP) (Only available with PUR cable)PT100 RTD1 (PT1) (Only available with PUR cable)
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications Approximate Weight
7 oz
Specifications Burst Pressure
4 Times Range
Specifications Cable Length
26 ft
Specifications Connection Material
316 Stainless Steel

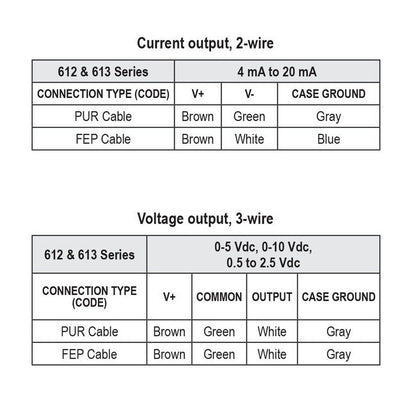

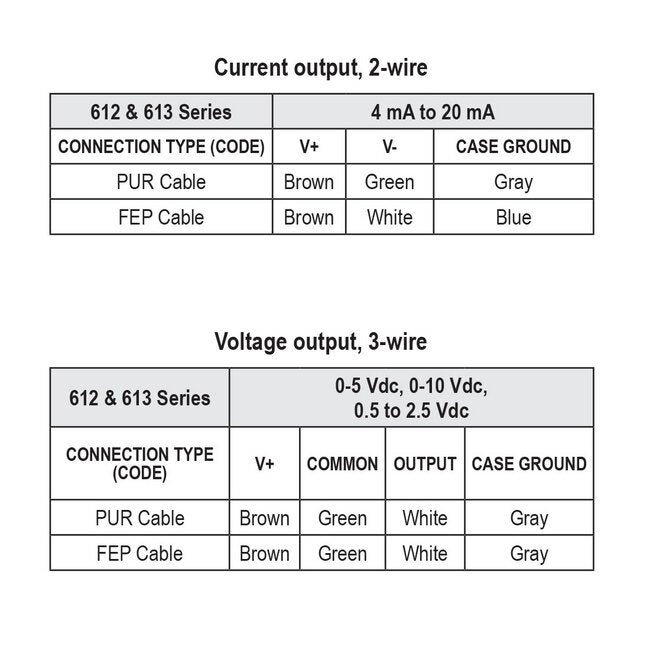

Specifications Electrical Connection
Standard Polyurethane (PUR) Cable
Specifications Electrical Protection
Reverse polarity protection, short circuit and optional lightning protection per European Standards (EN) 6100-4-5; 1.5J
Specifications Electromagnetic Rating
European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Specifications Environmental Rating
Ingress Protection (IP68)
Specifications Full Scale Best Fit Straight Line Bfsl Accuracy
0.25 %
Specifications Housing Material
316 Stainless Steel
Specifications Load Limitations
⤠(VPower-10)/0.020 Amp for 4 mA to 20 mA⥠10,000 Ω for 0 Vdc to 10 Vdc, 3-wire⥠5,000 Ω for 0 Vdc to 5 Vdc, 3-wire
Specifications Measuring Element
Cap: Polyamide, 316 stainless steel with weighted Nose ConeCable: Polyurethane, optional FEP or PVC with double water block
Specifications Note For Accuracy
Includes the effects of non-linearity, hysteresis, non-repeatability, zero point and full scale errors.
Specifications Output Signal
4 mA to 20 mA, 2-wire
Specifications Power Requirement
10 Vdc to 30 Vdc (4 mA to 20 mA, 2-wire, 0 Vdc to 5 Vdc, 3-wire)5 Vdc to 30 Vdc (0.5 Vdc to 2.5 Vdc, 3-wire)14 Vdc to 30 Vdc (0 Vdc to 10 Vdc, 3-wire)
Specifications Pressure Range
0 to 10 psig | 23.1 ftH2O
Specifications Process Connections
Nose Cone
Specifications Proof Pressure
2 Times Range
Specifications Related Items
612-CABLE-CLAMP, Submersible Cable Clamp | 612-FILTER-ELEMENT, Submersible Filter Element
Specifications Response Time
â¤1 ms
Specifications Series
612
Specifications Service Life
< 100,000,000 load cycles
Specifications Shock According To International Electrotechnical
100 g
Specifications Stability
⤠± 0.2% full scale for 1 year, non-accumulating
Specifications Storage Temperature Max
80 ºC | 175 ºF
Specifications Storage Temperature Min
-30 ºC | -22 ºF
Specifications Style
Level Transmitter
Specifications Type
Submersible Level Transmitter
Specifications Vibration According To International Electrotechn
15 g
Specifications Warranty
3 y
Temperature Ranges Compensated Temperature Range
32 to 122 ºF | 0 to 50 ºC
Temperature Ranges Media Temperature Range
14 to 122 ºF | -10 to 50 ºC
Temperature Ranges Note For Compensated Temperature Range
Effect ± 0.01%/ºF for zero and span
