NOSHOK 623 Series 0-30 psig Pressure Transmitter
NOSHOK 623 Series 0-30 psig Pressure Transmitter
SKU:NOS-8bb968
Accurate and reliable pressure transmitter for hazardous environments, 0-30 psig range, 316 stainless steel construction, CSA and CE compliant.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
NOSHOK 623 Series 0-30 psig Pressure Transmitter
$349.99
Quantity: 1
Claim Your Seller Account
NOSHOK 623 Series 0-30 psig Pressure Transmitter
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

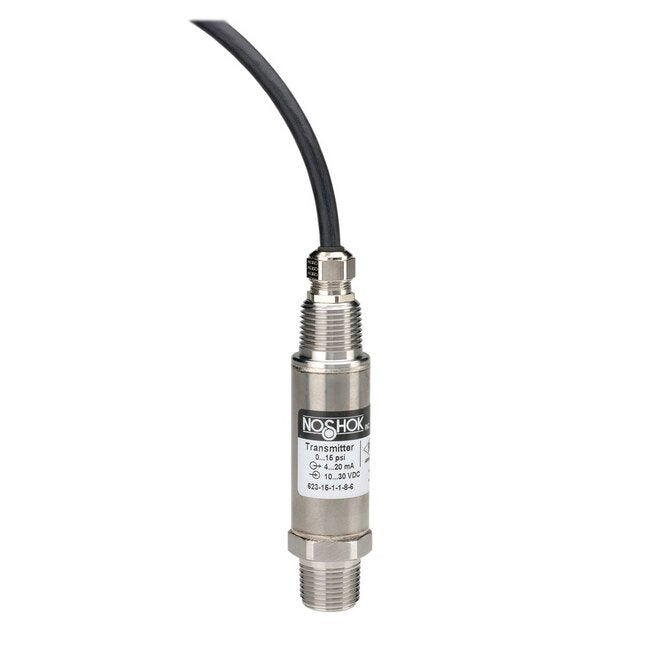

The NOSHOK 623 Series Non-Incendive Pressure Transmitter is a versatile solution designed for precision pressure measurement in hazardous environments. With a pressure range of 0 to 30 psig and 0.25% accuracy, this transmitter ensures reliable and consistent performance. Constructed with 316 stainless steel and Elgiloy wetted parts, it meets stringent industry standards such as Factory Mutual approval, CSA compliance, and CE certification for RFI, EMI, and ESD suppression. The robust design, coupled with a 4-20 mA output and 6 ft integral cable, makes it ideal for applications in chemical processing, oil fields, mining, and more.
Product Specifications
Additional Information Additional Information
NOSHOK 621 and 622 Series transmitters are Factory Mutual and Canadian Standards Association approved for use in hazardous location applications as follows:Non-Incendive for: Class I, Division 2, Groups A, B, C and D.I.P.Class II, Division 1, Groups E, F and G Maximum ratings 30 Vdc, 20 mA.CE compliant with pressure equipment directive 2014/68/EU.ANSI/ISA-12.27.01, Approved single seal.
Application Application
Chemical processingGas pressure measurementOil field & offshoreMiningWell head measurement
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Load Limitations Current For 4 To 20 Milliampere Ma
0.020 A
Load Limitations Resistance For 1 To 5 Direct Current Dc Voltage
⥠10,000 Ω
Options And Accessories Assembly Options
NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.
Options And Accessories Digital Indicators
NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters.
Options And Accessories Options And Accessories
SS Threaded Orifice - 623 Only (ST8)30 foot cable/lead attached to 1/2" NPT Male Conduit w/ 6 foot integral cable

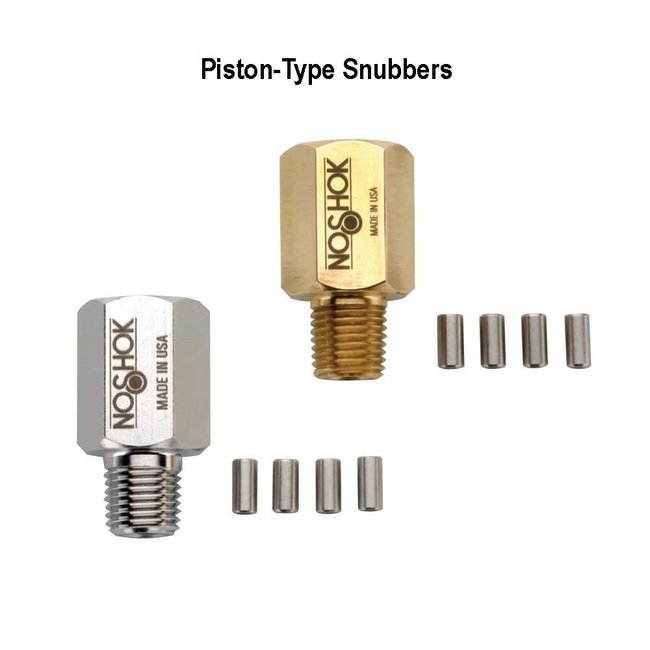

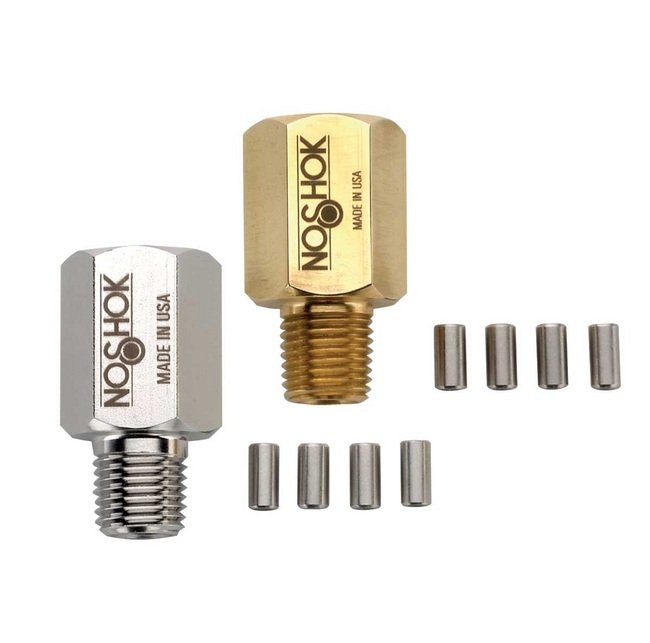

Options And Accessories Pressure Snubbers Piston Type
Resist clogging and are self-cleaningFive different sized pistons included with each snubber to ensure the correct amount of snubbing for virtually every applicationAvailable in Brass and 316 Stainless Steel in 1/4" NPT, 1/2" NPT or SAE J1926-3: 7/16-20Weight approximately 0.2 lb. for 1/4" & 7/16", and approximately 0.4 lb. for 1/2"ââââââ
Options And Accessories Pressure Snubbers Sintered Type
Cost effective solution to protect expensive instrumentationIncreases gauge readability by smoothing out pressure surges, pulsations and spikes5 basic elements available for each snubber to accommodate specific application needsSnubbing action achieved by utilizing a corrosion resistant 316 Stainless Steel sintered porous elementExotic materials or intermediate disc grades availableProvides long service life with no moving parts to wear outWeight approximately 0.2 lb. for 1/4" & 7/16", and approximately 0.4 lb. for 1/2
Options And Accessories Steam Syphons
Protect the instrument from the damaging effects of high temperature steamRecommended for use in all steam applicationsAvailable in 1/4" and 1/2" NPT sizes in welded steel, welded 316 Stainless Steel or seamless 316 Stainless Steel with ratings to 3,800 psi at 850 ºF
Options And Accessories Swivel Adapters
Temperature ratings: 15,000 psi at 200 ºF and 3,000 psi at 1,000 ºFUsed with gauges and gauge valves to adjust the line of sightRotates 360º to allow the connected instrument to be positioned in the desired directionThe pressure connection is achieved with a tapered cone style compression fitting simply by tightening the swivel hex nutAll 316 Stainless Steel constructionStandard with 1/2" NPT male process - 1/2" NPT female instrument connectionsAlso available with 1/4" NPT connections, same specifications applyWeight approximately 0.8 lb.
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications Absolute Pressure Range
0 to 100 psia
Specifications Ambient Temperature Range
-22 to 176 ºF | -30 to 80 ºC
Specifications Compensated Temperature Range
32 to 176 ºF | 0 to 80 ºC
Specifications Connection Material
316 Stainless Steel
Specifications Connection Size
1/4 in
Specifications Connection Size Search Only
1/4 in
Specifications Connection Type
Male National Pipe Thread (MNPT)
Specifications Electrical Connection
1/2 in. NPT male conduit with 6 ft integral cable
Specifications Electrical Protection
Reverse polarity, over-voltage and short circuit protected
Specifications Electromagnetic Rating
European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Specifications Environmental Rating
Ingress Protection (IP65) to Ingress Protection (IP67) dependent upon electrical connection
Specifications Full Scale Best Fit Straight Line Bfsl Accuracy
0.25 %
Specifications Housing Material
316 Stainless Steel
Specifications Measuring Element
623 Series is 316 stainless steel for ranges up through 0 psi to 300 psi, 316 stainless steel and Elgiloy for ranges 0 psig to 500 psig and higher
Specifications Media Temperature Range
-40 to 212 ºF | -40 to 100 ºC
Specifications Note For Compensated Temperature Range
Zero effect is ±0.011% full scale/ºF within compensated rangeSpan effect is ±0.011% full scale/ºF within compensated range
Specifications Output Signal
4 mA to 20 mA, 2-wire
Specifications Power Requirement
10 Vdc to 30 Vdc (4 mA to 20 mA, 2-wire)6 Vdc to 30 Vdc (1 Vdc to 5 Vdc, 3-wire, 0.5 Vdc to 4.5 Vdc, 3-wire)14 Vdc to 30 Vdc (0 Vdc to 10 Vdc, 3-wire)
Specifications Pressure Range
0 to 30 psig
Specifications Response Time
â¤1 ms
Specifications Series
Stainless Steel Threaded Connection
Specifications Service Life
> 100,000,000 Load Cycles
Specifications Shock According To International Electrotechnical
1,000 g
Specifications Stability
⤠±0.2% full scale for 1 year, non-accumulating
Specifications Storage Temperature Max
100 ºC | 212 ºF
Specifications Storage Temperature Min
-300 ºC | -22 ºF
Specifications Type
Pressure Transmitter
