NOSHOK 626 Series Intrinsically Safe Pressure Transmitter
NOSHOK 626 Series Intrinsically Safe Pressure Transmitter
SKU:NOS-9248d1
Highly accurate NOSHOK 626 Series Intrinsically Safe Pressure Transmitter for precise industrial pressure measurements.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
NOSHOK 626 Series Intrinsically Safe Pressure Transmitter
$289.99
Quantity: 1
Claim Your Seller Account
NOSHOK 626 Series Intrinsically Safe Pressure Transmitter
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

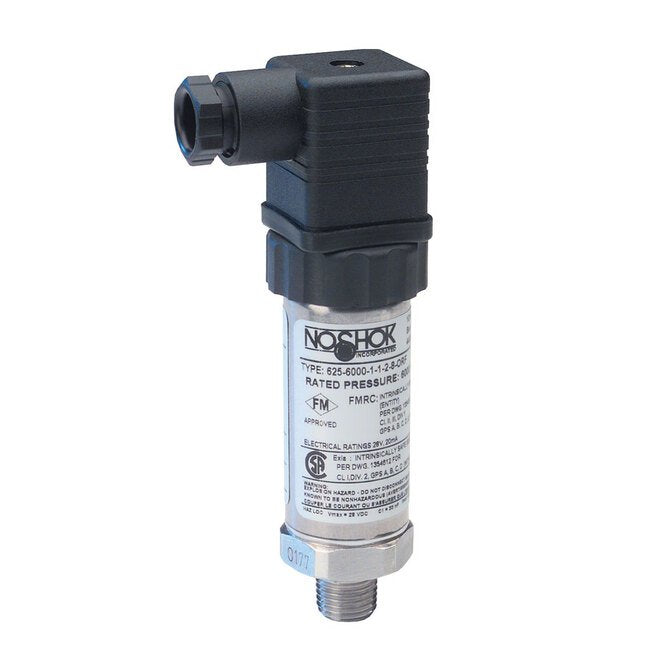

The NOSHOK 626 Series Intrinsically Safe Pressure Transmitter is a precision instrument designed for a wide range of industrial applications. With a pressure range of 0 to 2,000 psig and an impressive 0.25% accuracy, this transmitter delivers reliable and accurate pressure measurements. The stainless steel construction, DIN electrical connection, and multiple certifications ensure durability and safety in hazardous environments. Ideal for chemical processing, gas pressure measurement, and more, this transmitter guarantees high performance and compliance with industry standards.
Product Specifications
Additional Information Additional Information
Factory Mutual and Canadian Standards Association approvedCE compliant to suppress RFI, EMI and ESDNSI/ISA-12.27.01 approved single sealNOSHOK 625 and 626 Series transmitters are Factory Mutual and Canadian Standards Association approved for use in hazardous location applications as follows:Intrinsically Safe, entity approval for Class I, II and III, Division 1, Groups A, B, C, D, E, F and G; and Class I, Zone 0 Aex ia IICDust Ignition-proof for Class II and III, Division 2, Groups F and GNon-incendive for Class I, Division 2, Groups A, B, C and D.CE compliant with pressure equipment directive 2014/68/EU. ANSI/ISA-12.27.01, Approved single seal.Ideal for applications including chemical processing, gas pressure measurement, oil field & offshore, mining, vapory recovery systems, well head measurement
Application Application
Chemical processingGas pressure measurementOil field & offshoreMiningVapory recovery systemsWell head measurement
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Options And Accessories Assembly Options
NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.
Options And Accessories Digital Indicators
NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters.
Options And Accessories Options And Accessories
SS Threaded Orifice- 625 Only (ST8)G 1 Weld-on Adaptor - 626 Only (G1)G 1/2 Weld-on Adaptor - 626 Only (G1/2)

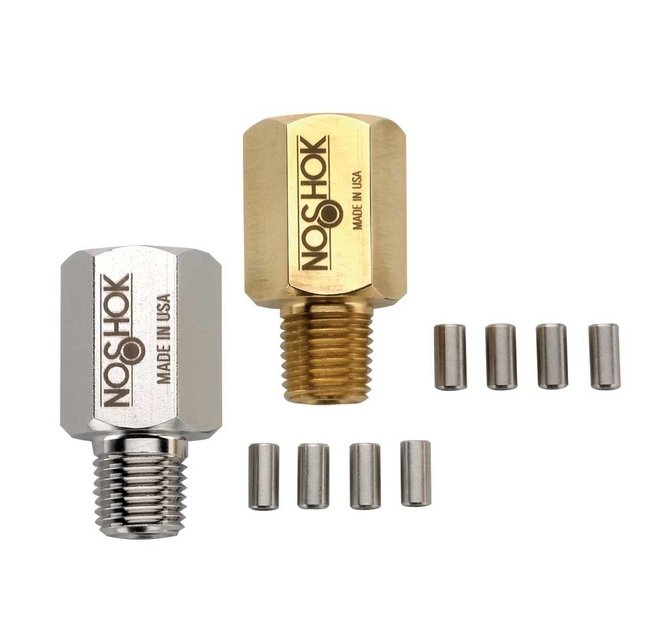

Options And Accessories Pressure Snubbers Piston Type
Resist clogging and are self-cleaningFive different sized pistons included with each snubber to ensure the correct amount of snubbing for virtually every applicationAvailable in Brass and 316 Stainless Steel in 1/4" NPT, 1/2" NPT or SAE J1926-3: 7/16-20Weight approximately 0.2 lb. for 1/4" & 7/16", and approximately 0.4 lb. for 1/2"ââââââ
Options And Accessories Pressure Snubbers Sintered Type
Cost effective solution to protect expensive instrumentationIncreases gauge readability by smoothing out pressure surges, pulsations and spikes5 basic elements available for each snubber to accommodate specific application needsSnubbing action achieved by utilizing a corrosion resistant 316 Stainless Steel sintered porous elementExotic materials or intermediate disc grades availableProvides long service life with no moving parts to wear outWeight approximately 0.2 lb. for 1/4" & 7/16", and approximately 0.4 lb. for 1/2
Options And Accessories Steam Syphons
Protect the instrument from the damaging effects of high temperature steamRecommended for use in all steam applicationsAvailable in 1/4" and 1/2" NPT sizes in welded steel, welded 316 Stainless Steel or seamless 316 Stainless Steel with ratings to 3,800 psi at 850 ºF
Options And Accessories Swivel Adapters
Temperature ratings: 15,000 psi at 200 ºF and 3,000 psi at 1,000 ºFUsed with gauges and gauge valves to adjust the line of sightRotates 360º to allow the connected instrument to be positioned in the desired directionThe pressure connection is achieved with a tapered cone style compression fitting simply by tightening the swivel hex nutAll 316 Stainless Steel constructionStandard with 1/2" NPT male process - 1/2" NPT female instrument connectionsAlso available with 1/4" NPT connections, same specifications applyWeight approximately 0.8 lb.
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications Adjustment
± 10% full scale for zero and span
Specifications Ambient Temperature Range
-4 to 176 ºF | -20 to 80 ºC
Specifications Approximate Weight
7 oz
Specifications Burst Pressure
4 Times Full Scale
Specifications Compensated Temperature Range
32 to 176 ºF | 0 to 80 ºC
Specifications Connection Material
316 Stainless Steel

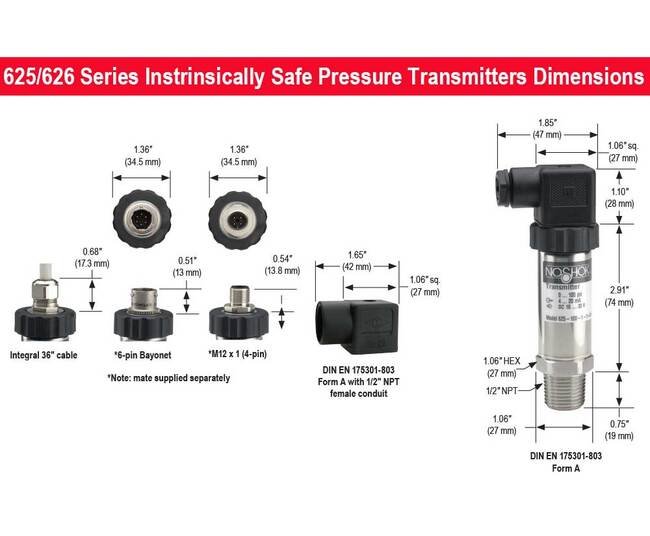

Specifications Electrical Connection
DIN EN 175301-803 Form A with 1/2" NPT Female Conduit
Specifications Electrical Protection
Reverse polarity, over-voltage and short circuit protected
Specifications Electromagnetic Rating
European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Specifications Environmental Rating
Ingress Protection (IP65) to Ingress Protection (IP67) depending upon electrical connection
Specifications Full Scale Best Fit Straight Line Bfsl Accuracy
0.25 %
Specifications Housing Material
316 Stainless Steel
Specifications Load Limitations
⤠(VPower-10)/0.020 Amp
Specifications Measuring Element
316 stainless steel for ranges up through 0 psi to 300 psi, 316 stainless steel with 17-4PH stainless steel for â¥300 psi
Specifications Media Temperature Range
-4 to 185 ºF | -20 to 85 ºC
Specifications Note For Accuracy
Includes the effects of non-linearity, hysteresis, non-repeatability, zero point and full scale errors.
Specifications Note For Compensated Temperature Range
Zero effect is ±0.011% full scale/ºFSpan effect is ±0.011% full scale/ºF

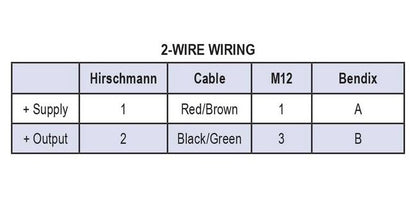

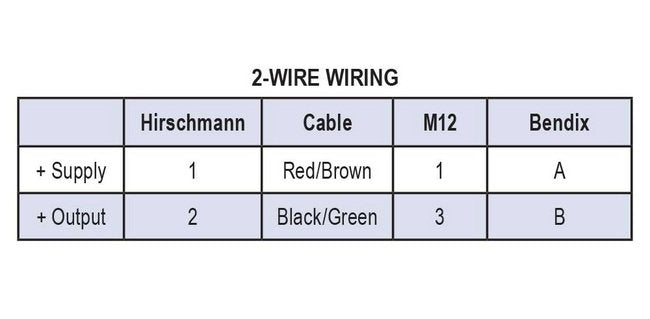

Specifications Output Signal
4 mA to 20 mA, 2-wire
Specifications Power Requirement
10 Vdc to 30 Vdc (4 mA to 20 mA, 2-wire)
Specifications Pressure Range
0 to 2,000 psig
Specifications Process Connections
1/2 in. Male National Pipe Thread (MNPT)
Specifications Proof Pressure
2 Times Full Scale
Specifications Related Items
2070-MFS, 1/2" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Hard Seat, 0.187" Orifice Block and Bleed 2-Valve | 304-MFS, 1/2" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, 0.187" Orifice Soft Seat Multiport Valve | 3070-MFS, 1/2" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Hard Seat, 0.187" Orifice Double Block and Bleed 3-Valve | 504-MFS, 1/2" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Soft Seat, 0.187" Orifice Needle Valve
Specifications Response Time
â¤1 ms
Specifications Series
Stainless Steel Threaded Connection
Specifications Service Life
< 100,000,000 load cycles
Specifications Shock According To International Electrotechnical
1,000 g
Specifications Stability
⤠± 0.2% full scale for 1 year, non-accumulating
Specifications Storage Temperature Max
105 ºC | 221 ºF
