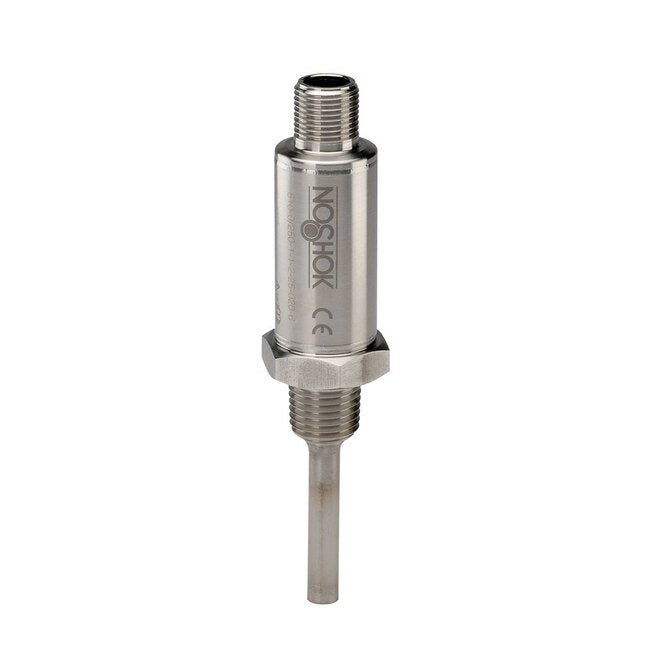

NOSHOK 810 Series Compact Temperature Transmitter
NOSHOK 810 Series Compact Temperature Transmitter
SKU:NOS-5f235b
High-performance NOSHOK 810 Series Compact Temperature Transmitter for precise temperature measurement in industrial applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
NOSHOK 810 Series Compact Temperature Transmitter
$299.99
Quantity: 1
Claim Your Seller Account
NOSHOK 810 Series Compact Temperature Transmitter
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOSHOK 810 Series Compact Temperature Transmitter is designed for precision and reliability in temperature measurement applications. With a temperature range from -22 to 250 ºF and a 4-20 mA output, this transmitter offers unbeatable performance. The PT1000 platinum resistance sensor ensures stability and accuracy, while the 1/2 NPT process connection and 6 mm diameter sensor make it versatile for various industrial uses. Compliant with European Conformity (CE), Electromagnetic Compatibility (EMC) standards, and IP67 environmental protection, this transmitter is ideal for mobile hydraulics, automotive, HVAC, and more.
Product Specifications
Application Application
Mobile hydraulicsAutomotiveHeat exchangersHVACTransportationRefrigeration controls
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications Accuracy
±0.80 ºF (± 0.45 ºC)Maximum uncertainty calculated @ maximum span, maximum measurement temperature, and ambient temperature. Maximum uncertainty includes Usensing element, Usensor measurement, Uoutput linearization.
Specifications Ambient Temperature Range
-40 to 185 ºF | -40 to 85 ºC

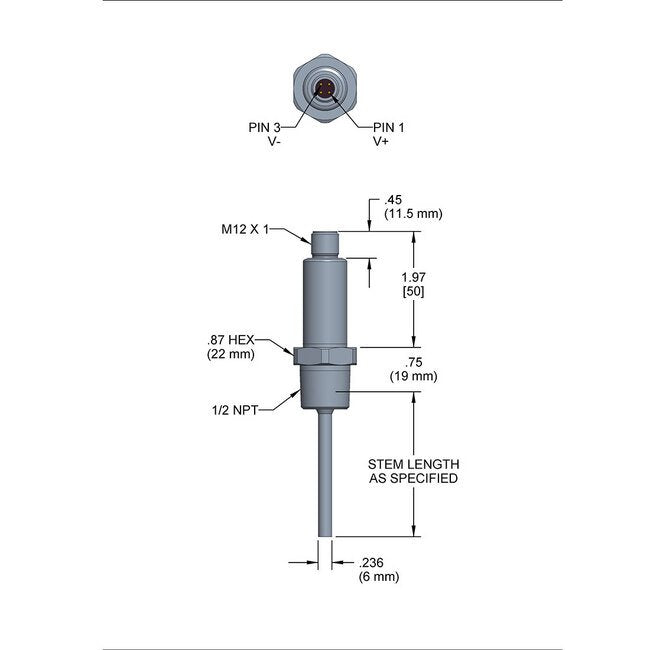

Specifications Connection Size
1/2 in
Specifications Connection Type
Male National Pipe Thread (MNPT)
Specifications Electrical Connection
M12 x 1 (4-Pin)
Specifications Electrical Protection
Reverse polarity, over-voltage and short circuit protection
Specifications Environmental Protection
Ingress Protection (IP67)
Specifications High Calibrated Temperature Range
250 ºF
Specifications Housing Material
316 Stainless Steel
Specifications Industry Standardscertifications
European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) per EN 61326Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Specifications Load Limitations
â¤(Supply Voltage - 10 Volts)/0.023 A
Specifications Low Calibrated Temperature Range
-22 ºF
Specifications Measuring Element
PT1000 Class A
Specifications Measuring Element Accuracy
PT1000 Class A
Specifications Output Signal
4 to 20 mA, 2-Wire
Specifications Power Supply
10 to 30 Vdc
Specifications Pressure Rating
3,915 psi
Specifications Seal Material
316 Stainless Steel
Specifications Sensor Diameter
6 mm
Specifications Sensor Length
4 in
Specifications Sensor Protection
Burnout Protected from 3.3 to 23 mA
Specifications Series
810
Specifications Standard Temperature Ranges
-22 to 302 ºF
Specifications Storage Temperature Max
85 ºC | 185 ºF
Specifications Storage Temperature Min
-40 ºC | -40 ºF
Specifications Temperature Sensor Accuracy
For ºF: ±[1.8*(0.15 + 0.002 (t - 32) / 1.8)]For ºC: ±(0.15 K + 0.002 I t I) per EN 60751
Specifications Type
Transmitter
Specifications Warranty
3 y
Thermowells Thermowells
Thermowells allow a temperature instrument to be removed and replaced without shutting down and draining the process, and reduce the possibility of damage to the temperature instrument.
