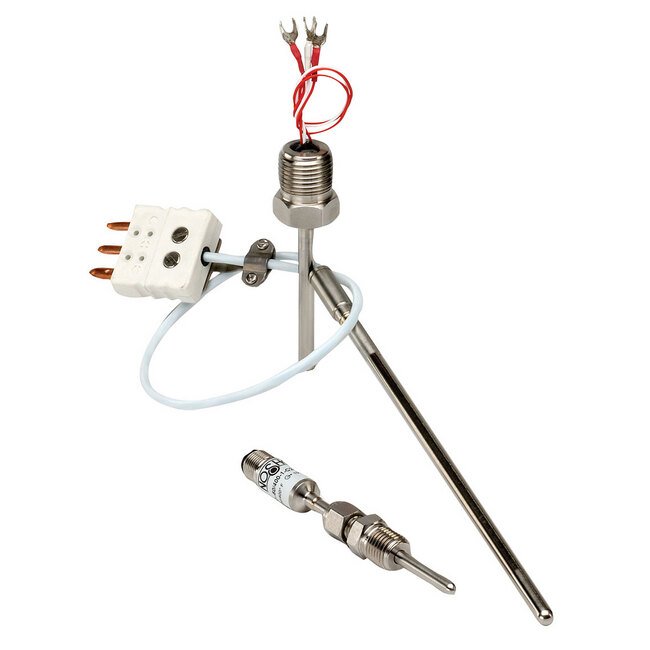

NOSHOK 900 Series 3-Wire Industrial RTD Probe with Integrated Cable
NOSHOK 900 Series 3-Wire Industrial RTD Probe with Integrated Cable
SKU:NOS-011fe8
Precision industrial RTD probe with Male NPT connection, wide temperature range, and durable design for OEM applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
NOSHOK 900 Series 3-Wire Industrial RTD Probe with Integrated Cable
$89.99
Quantity: 1
Claim Your Seller Account
NOSHOK 900 Series 3-Wire Industrial RTD Probe with Integrated Cable
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOSHOK 900 Series Industrial RTD Probe is a high-precision temperature sensing device designed for a wide range of applications including chemical processing, automotive, HVAC, and more. With a Male National Pipe Thread connection, accuracy of ±0.12% at 0°C, and a temperature range from -50°F to 400°F, this probe ensures reliable and accurate temperature measurements. The 1/8" diameter stem and 36" integral cable provide versatility and ease of installation, making it ideal for OEM applications. With PVC or PTFE insulation options, this RTD probe offers durability and long-lasting performance.
Product Specifications
Additional Information Additional Information
A variety of fitting sizes and probe diameters are availableRTD PT100 Ω standard, others available2, 3 or 4-wire circuit typesIsolation to 500 VdcCustom designs available
Application Application
Chemical processingTextile productionAutomotivePlastics processingHVAC
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Note Note
Thermowells are recommended for pressure, corrosive fluids and high velocity applications.
Options And Accessories Thermowells
Thermowells allow a temperature instrument to be removed and replaced without shutting down and draining the process, and reduce the possibility of damage to the temperature instrument.
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications Accuracy
±0.12% (±0.3 ºC) at 0 ºC, Class B
Specifications Circuit Types
Single, 3-Wire
Specifications Connection Size
1/2 in
Specifications Connection Type
Male National Pipe Thread (MNPT)
Specifications Electrical Connection

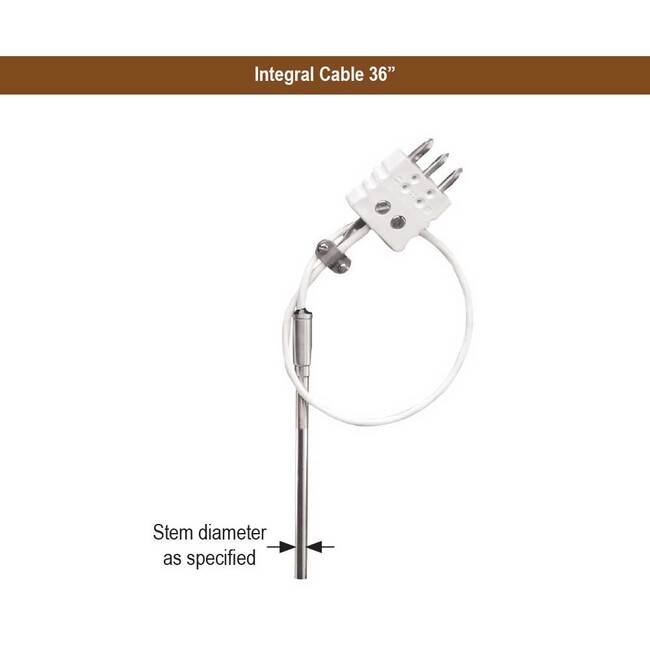

Integral Cable 36 in.
Specifications Insulation Resistance
Single Element Probes: 100 mega Ω/min. at 500 Vdc, Leads to CaseDual Element Probes: 100 mega Ω/min. at 100 Vdc, Between Element and Leads to Case
Specifications Lead Wires
Stranded 22 AWG standard, Polyvinyl Chloride (PVC) or Polytetrafluoroethylene (PTFE) Insulation
Specifications Pressure Ratings For Tube
500 psi | 34.5 bar
Specifications Resistance Temperature Device Rtd Element
PT100 Ω at 32 ºF (0 ºC), α=0.00385 International Electrotechnical Commission (IEC 751)
Specifications Self Heating
50 mW / ºC Typical in Moving Water
Specifications Series
900
Specifications Standard Finish Max
32 micro-inches maximum | 32 µin
Specifications Stem Diameters
1/8 in
Specifications Stock
Yes
Specifications Temperature Ranges Max
400 ºF
Specifications Temperature Ranges Min
-50 ºF
Specifications Transition
Sheath to Wire Transition Maximum Temperature 266 ºF (130 ºC)
Specifications Type
Probe
Specifications Warranty
3 y
