NOSHOK 920 Series RTD Transmitter
NOSHOK 920 Series RTD Transmitter
SKU:NOS-463dd8
Cutting-edge NOSHOK 920 Series RTD Transmitter for precise, reliable temperature monitoring in industrial environments.
Regular price
$181.40
Regular price
Sale price
$181.40
Unit price
per
Initiate Order
NOSHOK 920 Series RTD Transmitter
$181.40
Quantity: 1
Claim Your Seller Account
NOSHOK 920 Series RTD Transmitter
$181.40
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

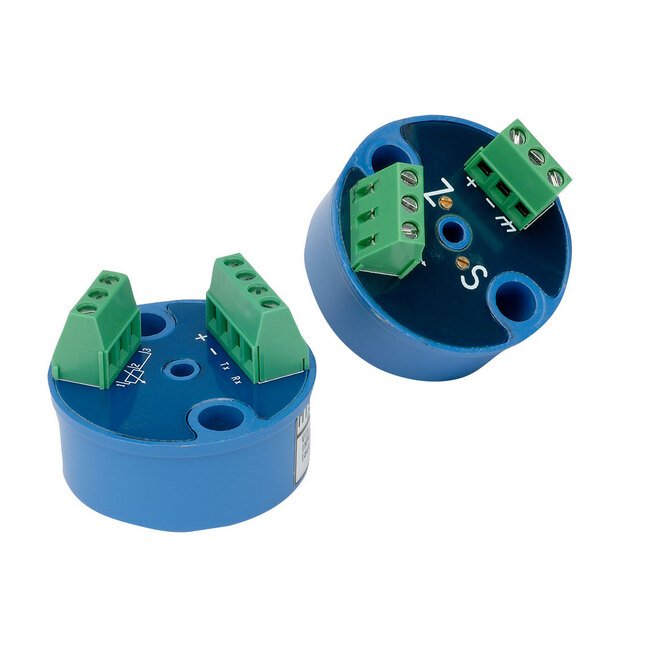

The NOSHOK 920 Series Resistance Temperature Device (RTD) Transmitter is a cutting-edge 2-wire loop-powered device with a 4 mA to 20 mA linearized output for precise temperature monitoring. This head-mounted transmitter features a rugged die-cast zinc housing with enamel paint finish, ensuring burnout resistance in industrial environments. With a wide ambient temperature range, high accuracy of 0.1%, and long-term stability, this transmitter is ideal for institutional and government applications requiring reliable temperature measurement. The potentiometer adjustments allow for easy calibration, while its compatibility with RTD PT100 sensors ensures optimal performance in diverse settings.
Product Specifications
Additional Information Additional Information
Factory calibrated for fixed rangeMetal housingFits standard headsOptional model is fully field re-programmable with module and PC-based software
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Note Note
Calibrated Temperature Range - Please specify low/high
Options And Accessories 920 Series Resistance Temperature Device
920 PC Programming Kit (920-PKIT)
Specifications Accuracy
0.1% Full Scale (FS) (Includes Effects of Linearity, Hysteresis and Repeatability)
Specifications Ambient Temperature Range
-40 to 176 ºF | -40 to 80 ºC
Specifications Excitation Current Resistance Temperature Device
0.8 mA
Specifications Height
1.15 in
Specifications High Accuracy
0.1 %
Specifications High Calibrated Temperature Range
200 ºF

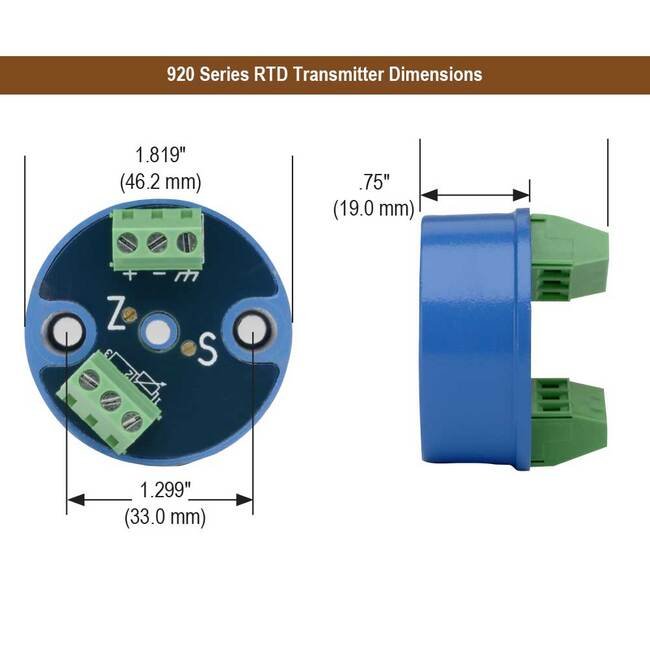

Specifications Housing Diameter
1.82 in
Specifications Housing Material
Die-Cast Zinc, Enamel Painted
Specifications List Price
181.40 USD
Specifications Long Term Drift
â¤0.5% FS/year
Specifications Low Calibrated Temperature Range
0 ºF
Specifications Maximum Loop Resistance
Rmax. = [ ( Vsupply - 9 Vdc ) / 20 mA
Specifications Open Circuit Detection Overscale Limit
27.0 mA
Specifications Open Circuit Detection Underscale Limit
2.2 mA
Specifications Options
None
Specifications Output
4 to 20 mA, 2-Wire
Specifications Power Supply
12 to 32 Vdc, Polarity Protected
Specifications Sensor Lead Resistance Temperature Device Rtd Max
500 Ω
Specifications Series
920
Specifications Spanzero Adjustment
20 Turn Potentiometer, ±10% for Zero and Span
Specifications Span Drift
±0.01% FS/ ºC
Specifications Stock
Yes
Specifications Storage Temperature Max
80 ºC | 176 ºF
Specifications Storage Temperature Min
-40 ºC | -40 ºF
Specifications Supply Effect
0.02%/V, 0.001%/V with Computer Programmable Version
Specifications Type
Head-Mounted Transmitter
Specifications Warm Up
30 s
Specifications Warranty
3 y
Specifications Zero Drift
±0.01% FS/ ºC
