NOSHOK 920 Series RTD Transmitter
NOSHOK 920 Series RTD Transmitter
SKU:NOS-4e1c56
Get precise temperature readings with NOSHOK 920 RTD Transmitter. 4-20mA output, 0.1% Full Scale accuracy & durable design.
Regular price
$181.40
Regular price
Sale price
$181.40
Unit price
per
Initiate Order
NOSHOK 920 Series RTD Transmitter
$181.40
Quantity: 1
Claim Your Seller Account
NOSHOK 920 Series RTD Transmitter
$181.40
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

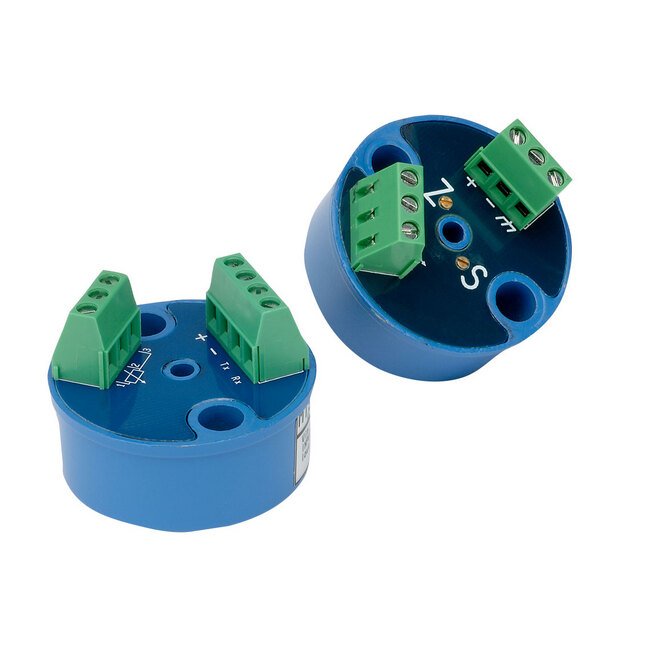

The NOSHOK 920 Series RTD Transmitter is a cutting-edge 2-wire loop-powered device with a 4mA to 20mA output, providing linearized temperature readings for precise monitoring. Equipped with a high accuracy of 0.1% Full Scale, this transmitter offers a wide temperature range from 0°F to 250°F and features die-cast zinc housing for enhanced durability. With a 20-turn potentiometer for span and zero adjustment, this transmitter ensures optimal performance and reliability in industrial settings. Factory calibrated and field re-programmable, it meets stringent industry standards for seamless integration and exceptional temperature control.
Product Specifications
Additional Information Additional Information
Factory calibrated for fixed rangeMetal housingFits standard headsOptional model is fully field re-programmable with module and PC-based software
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Note Note
Calibrated Temperature Range - Please specify low/high
Options And Accessories 920 Series Resistance Temperature Device
920 PC Programming Kit (920-PKIT)
Specifications Accuracy
0.1% Full Scale (FS) (Includes Effects of Linearity, Hysteresis and Repeatability)
Specifications Ambient Temperature Range
-40 to 176 ºF | -40 to 80 ºC
Specifications Excitation Current Resistance Temperature Device
0.8 mA
Specifications Height

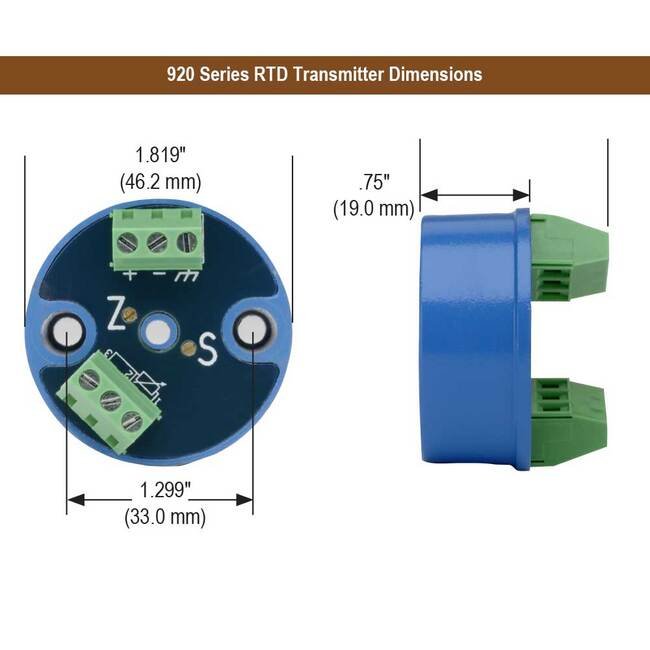

1.15 in
Specifications High Accuracy
0.1 %
Specifications High Calibrated Temperature Range
250 ºF
Specifications Housing Diameter
1.82 in
Specifications Housing Material
Die-Cast Zinc, Enamel Painted
Specifications List Price
181.40 USD
Specifications Long Term Drift
â¤0.5% FS/year
Specifications Low Calibrated Temperature Range
0 ºF
Specifications Maximum Loop Resistance
Rmax. = [ ( Vsupply - 9 Vdc ) / 20 mA
Specifications Open Circuit Detection Overscale Limit
27.0 mA
Specifications Open Circuit Detection Underscale Limit
2.2 mA
Specifications Options
None
Specifications Output
4 to 20 mA, 2-Wire
Specifications Power Supply
12 to 32 Vdc, Polarity Protected
Specifications Sensor Lead Resistance Temperature Device Rtd Max
500 Ω
Specifications Series
920
Specifications Spanzero Adjustment
20 Turn Potentiometer, ±10% for Zero and Span
Specifications Span Drift
±0.01% FS/ ºC
Specifications Stock
Yes
Specifications Storage Temperature Max
80 ºC | 176 ºF
Specifications Storage Temperature Min
-40 ºC | -40 ºF
Specifications Supply Effect
0.02%/V, 0.001%/V with Computer Programmable Version
Specifications Type
Head-Mounted Transmitter
Specifications Warm Up
30 s
Specifications Warranty
3 y
Specifications Zero Drift
±0.01% FS/ ºC
