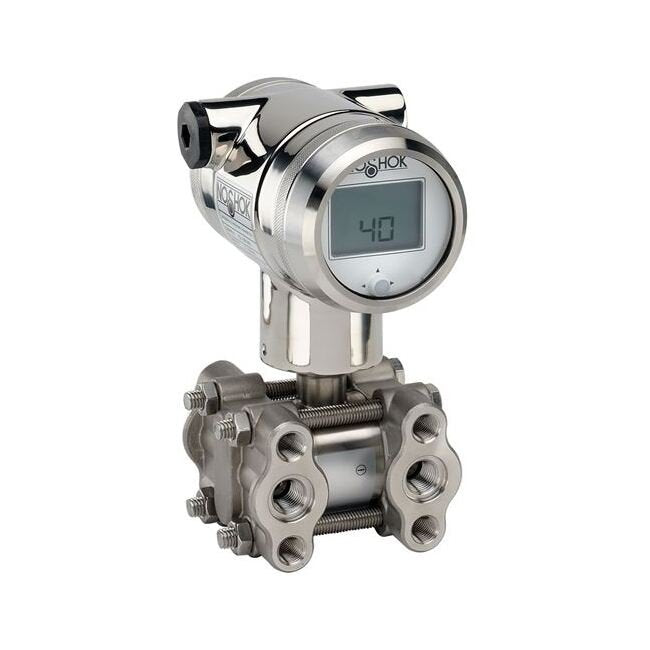

The NOSHOK Inc. PTI40 Series Premier Accuracy Intelligent Industrial Pressure Transmitters & Transducers offer unparalleled precision with a pressure range of 0.3 psi to 30 psi and an exceptional accuracy of ±0.075%. With a 4 mA to 20 mA output signal, 2-wire with HART compatibility, and a durable construction of 316 Stainless Steel, these transmitters ensure reliable performance in demanding industrial environments. Designed with a 1/4" NPT female IEC 61518 flange and bleed valves, and a 1/2" NPT female electrical connection, these transmitters meet the highest standards for pressure measurement in industries such as food & beverage, pulp & paper, water & wastewater, power generation, and general industrial applications.
Product Specifications
Additional Technical Information Adjustment
By 1 push button joystick on display or HART® protocol
Additional Technical Information Ambient Temperature Range
-4 to 158 ºF | -20 to 70 ºC
Additional Technical Information Approximate Weight
6.9 lb
Additional Technical Information Connection Material
316 Stainless Steel
Additional Technical Information Measuring Element
316 Stainless Steel (Hastelloy C or Gold plated optional)
Additional Technical Information Response Time
<200 ms
Additional Technical Information Service Life
>10 y
Additional Technical Information Stability
<0.1%/year
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Options And Accessories Digital Indicators
NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters.
Options And Accessories Options
TC Transparent Cover (for display)
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Related Items Related Items
3010-MFS, Hard Seat, Flange x 1/2" National Pipe Thread (NPT) Female, 316 Stainless Steel, 0.187" Orifice 3 Manifold Valve | 3010-MMS, Hard Seat, Flange x Flange, 316 Stainless Steel, 0.187" Orifice 3 Manifold Valve | 5030-MFS-FP, Hard Seat, Flange x 1/2" National Pipe Thread (NPT) Female, 316 Stainless Steel, Flare Patternâ¢, 0.187" Orifice 5 Manifold Valve | 5030-MMS-FP, Hard Seat, Flange x Flange, 316 Stainless Steel, Flare Patternâ¢, 0.187" Orifice 5 Manifold Valve
Specifications Accuracy
±0.075% of adjusted span with up to 100:1 turn down
Specifications Applications
Food & beveragePulp & paperWater & wastewaterPower generationGeneral Industrial
Specifications Electrical Connection
1/2" National Pipe Thread (NPT) female
Specifications Environmental Rating
IP66
Specifications Materials Of Construction Wetted Parts
316 Stainless Steel with 304 Stainless Steel housing
Specifications Media Temperature Range
-4 to 176 ºF | -20 to 80 ºC
Specifications Output Signal
4 mA to 20 mA, 2-wire with HART
Specifications Power Requirement
12 Vdc to 36 Vdc
Specifications Pressure Range
Min. span 0.3 psi, max. span 30 psi
Specifications Process Connection
1/4" National Pipe Thread (NPT) female IEC 61518 flange with bleed valves
Specifications Product Series
PTI40 Premier Accuracy Intelligent Pressure Transmitter
