NOSHOK PT100 3-Wire 1/2" NPT 6" Stem Industrial RTD Probe
NOSHOK PT100 3-Wire 1/2" NPT 6" Stem Industrial RTD Probe
SKU:NOS-34755e
High-precision NOSHOK PT100 3-Wire Industrial RTD Probe for precise temperature sensing in industrial applications.
Regular price
$258.03
Regular price
Sale price
$258.03
Unit price
per
Initiate Order
NOSHOK PT100 3-Wire 1/2" NPT 6" Stem Industrial RTD Probe
$258.03
Quantity: 1
Claim Your Seller Account
NOSHOK PT100 3-Wire 1/2" NPT 6" Stem Industrial RTD Probe
$258.03
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

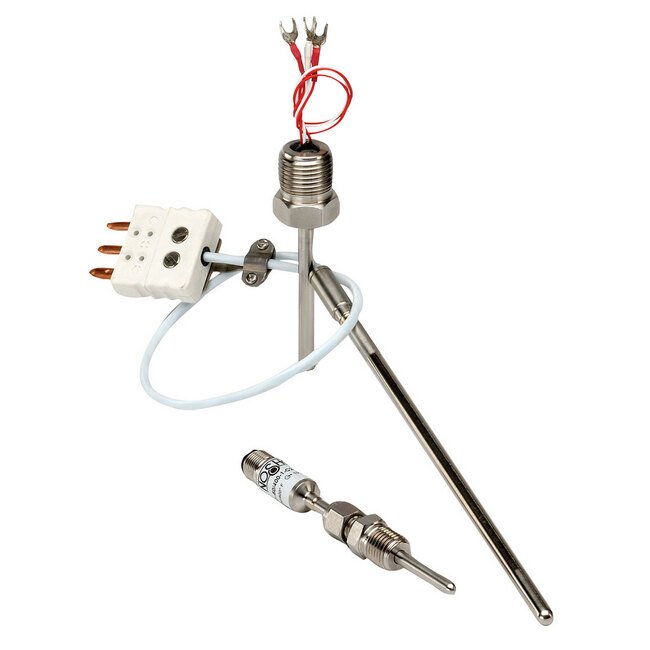

The NOSHOK PT100 3-Wire Industrial RTD Probe from the 900 Series is a high-precision temperature sensing solution designed for a wide range of applications. With a male NPT connection, this probe offers a temperature range from -50 to 400 °F with an accuracy of ±0.12%. Featuring PVC or PTFE lead wires, 1/2" NPT conduit with flying leads, and a self-heating rate of 50 mW/°C, this probe is ideal for chemical processing, automotive, HVAC, and more. It meets rigorous standards for durability, accuracy, and performance, making it a reliable choice for industrial needs.
Product Specifications
Additional Information Additional Information
A variety of fitting sizes and probe diameters are availableRTD PT100 Ω standard, others available2, 3 or 4-wire circuit typesIsolation to 500 VdcCustom designs available
Application Application
Chemical processingTextile productionAutomotivePlastics processingHVAC
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Note Note
Thermowells are recommended for pressure, corrosive fluids and high velocity applications.
Options And Accessories Thermowells
Thermowells allow a temperature instrument to be removed and replaced without shutting down and draining the process, and reduce the possibility of damage to the temperature instrument.
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications Accuracy
±0.12% (±0.3 ºC) at 0 ºC, Class B
Specifications Circuit Types
Single, 3-Wire
Specifications Connection Size
1/2 in
Specifications Connection Type
Male National Pipe Thread (MNPT)
Specifications Electrical Connection

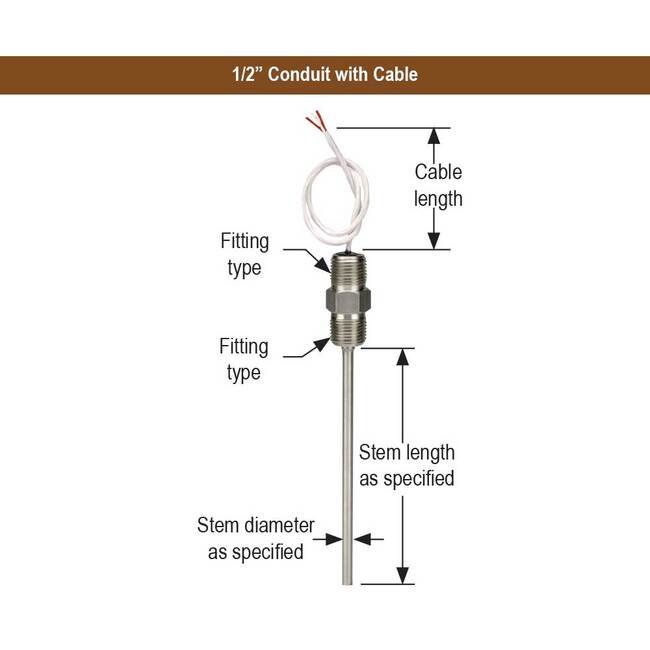

1/2 in. National Pipe Thread (NPT) Conduit with 6 in. Flying Leads
Specifications Insulation Resistance
Single Element Probes: 100 mega Ω/min. at 500 Vdc, Leads to CaseDual Element Probes: 100 mega Ω/min. at 100 Vdc, Between Element and Leads to Case
Specifications Lead Wires
Stranded 22 AWG standard, Polyvinyl Chloride (PVC) or Polytetrafluoroethylene (PTFE) Insulation
Specifications List Price
258.03 USD
Specifications Pressure Ratings For Tube
500 psi | 34.5 bar
Specifications Related Items
50-060-304-SS, 1/2" National Pipe Thread (NPT) Stepped Shank, 6" Length, 1/2" National Pipe Straight Mechanical (NPSM) Instrument Connection, 304 Stainless Steel Thermowell | 50-060-316-SS, 1/2" National Pipe Thread (NPT) Stepped Shank, 6" Length, 1/2" National Pipe Straight Mechanical (NPSM) Instrument Connection, 316 Stainless Steel Thermowell | 75-060-304-SS, 3/4" National Pipe Thread (NPT) Stepped Shank, 6" Length, 1/2" National Pipe Straight Mechanical (NPSM) Instrument Connection, 304 Stainless Steel Thermowell | 75-060-316-SS, 3/4" National Pipe Thread (NPT) Stepped Shank, 6" Length, 1/2" National Pipe Straight Mechanical (NPSM) Instrument Connection, 316 Stainless Steel Thermowell
Specifications Resistance Temperature Device Rtd Element
PT100 Ω at 32 ºF (0 ºC), α=0.00385 International Electrotechnical Commission (IEC 751)
Specifications Self Heating
50 mW / ºC Typical in Moving Water
Specifications Series
900
Specifications Standard Finish Max
32 micro-inches maximum | 32 µin
Specifications Stem Diameters
1/4 in
Specifications Stem Lengths
6 in
Specifications Stock
Yes
Specifications Temperature Ranges Max
400 ºF
Specifications Temperature Ranges Min
-50 ºF
Specifications Transition
Sheath to Wire Transition Maximum Temperature 266 ºF (130 ºC)
Specifications Type
Probe
Specifications Warranty
3 y
