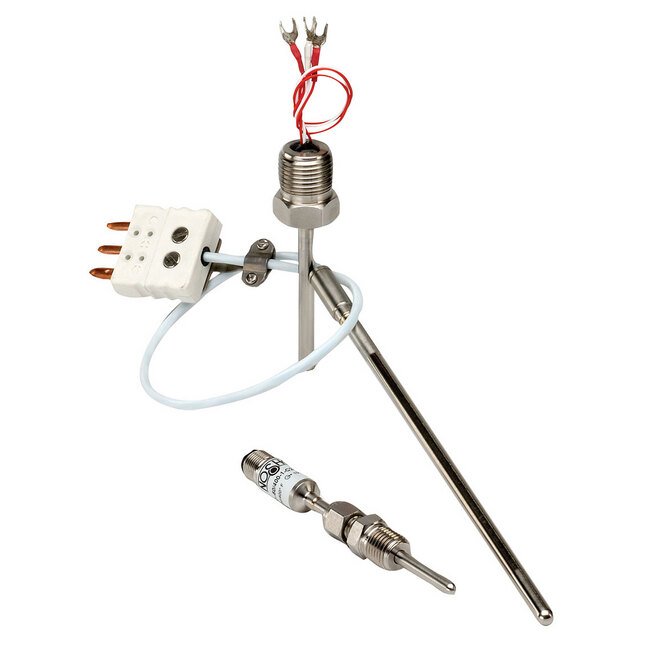

NOSHOK PT100 3-Wire Industrial RTD Probe - 1/2" NPT, 12" Stem
NOSHOK PT100 3-Wire Industrial RTD Probe - 1/2" NPT, 12" Stem
SKU:NOS-9321f5
NOSHOK PT100 3-Wire Industrial RTD Probe - Reliable, accurate, and durable for diverse industrial applications.
Regular price
$270.15
Regular price
Sale price
$270.15
Unit price
per
Initiate Order
NOSHOK PT100 3-Wire Industrial RTD Probe - 1/2" NPT, 12" Stem
$270.15
Quantity: 1
Claim Your Seller Account
NOSHOK PT100 3-Wire Industrial RTD Probe - 1/2" NPT, 12" Stem
$270.15
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOSHOK 900 Series PT100 3-Wire Industrial RTD Probe is a versatile solution for OEM applications in industries such as chemical processing, automotive, and HVAC. This probe features a precise PT100 Ω RTD element with an accuracy of ±0.3 °C at 0 °C, ensuring reliable temperature monitoring. With a stem diameter of 1/4" and a length of 12", it provides flexibility for various setups. The probe is designed with durable materials and offers a wide temperature range from -50 °F to 400 °F, making it suitable for demanding environments. Additionally, the PVC or PTFE insulation on the lead wires enhances safety and longevity.
Product Specifications
Additional Information Additional Information
A variety of fitting sizes and probe diameters are availableRTD PT100 Ω standard, others available2, 3 or 4-wire circuit typesIsolation to 500 VdcCustom designs available
Application Application
Chemical processingTextile productionAutomotivePlastics processingHVAC
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Note Note
Thermowells are recommended for pressure, corrosive fluids and high velocity applications.
Options And Accessories Thermowells
Thermowells allow a temperature instrument to be removed and replaced without shutting down and draining the process, and reduce the possibility of damage to the temperature instrument.
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications Accuracy
±0.12% (±0.3 ºC) at 0 ºC, Class B
Specifications Circuit Types
Single, 3-Wire
Specifications Connection Size
1/2 in
Specifications Connection Type
Male National Pipe Thread (MNPT)
Specifications Electrical Connection
1/2 in. National Pipe Thread (NPT) Conduit with 6 in. Flying Leads
Specifications Insulation Resistance
Single Element Probes: 100 mega Ω/min. at 500 Vdc, Leads to CaseDual Element Probes: 100 mega Ω/min. at 100 Vdc, Between Element and Leads to Case
Specifications Lead Wires
Stranded 22 AWG standard, Polyvinyl Chloride (PVC) or Polytetrafluoroethylene (PTFE) Insulation
Specifications List Price
270.15 USD
Specifications Pressure Ratings For Tube
500 psi | 34.5 bar
Specifications Related Items
50-120-304-SS, 1/2" National Pipe Thread (NPT) Stepped Shank, 12" Length, 1/2" National Pipe Straight Mechanical (NPSM) Instrument Connection, 304 Stainless Steel Thermowell | 50-120-316-SS, 1/2" National Pipe Thread (NPT) Stepped Shank, 12" Length, 1/2" National Pipe Straight Mechanical (NPSM) Instrument Connection, 316 Stainless Steel Thermowell | 75-120-304-SS, 3/4" National Pipe Thread (NPT) Stepped Shank, 12" Length, 1/2" National Pipe Straight Mechanical (NPSM) Instrument Connection, 304 Stainless Steel Thermowell
Specifications Resistance Temperature Device Rtd Element
PT100 Ω at 32 ºF (0 ºC), α=0.00385 International Electrotechnical Commission (IEC 751)
Specifications Self Heating
50 mW / ºC Typical in Moving Water
Specifications Series
900
Specifications Standard Finish Max
32 micro-inches maximum | 32 µin
Specifications Stem Diameters
1/4 in
Specifications Stem Lengths
12 in
Specifications Stock
Yes
Specifications Temperature Ranges Max
400 ºF
Specifications Temperature Ranges Min
-50 ºF
Specifications Transition
Sheath to Wire Transition Maximum Temperature 266 ºF (130 ºC)
Specifications Type
Probe
Specifications Warranty
3 y
