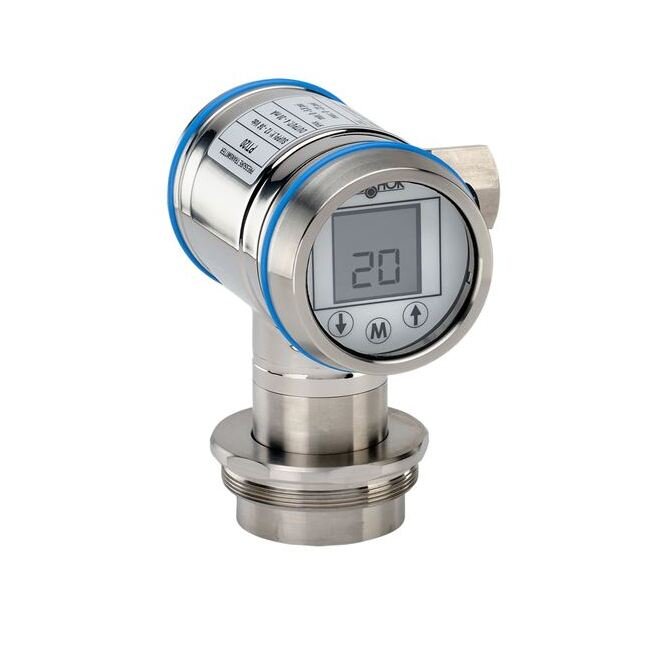

NOSHOK PTI20 Intelligent Industrial Pressure Transmitter
NOSHOK PTI20 Intelligent Industrial Pressure Transmitter
SKU:NOS-1347b9
Highly accurate NOSHOK PTI20 Pressure Transmitter for industrial applications. Pressure range 14.5 psi to 58 psi, 2-wire output, IP66 rated.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
NOSHOK PTI20 Intelligent Industrial Pressure Transmitter
$399.99
Quantity: 1
Claim Your Seller Account
NOSHOK PTI20 Intelligent Industrial Pressure Transmitter
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOSHOK PTI20 Intelligent Industrial Pressure Transmitter is a top-of-the-line solution for accurate pressure measurement in industrial settings. With a pressure range from 14.5 psi to 58 psi, this transmitter boasts an impressive accuracy of ±0.2% of the adjusted span with a 4:1 turn down ratio. Its 2-wire output signal of 4 mA to 20 mA ensures reliable data transmission, while the threaded flush diaphragm and PG9 cable gland provide secure connections. Constructed with 316 Stainless Steel and featuring an environmental rating of IP66, this transmitter is designed to withstand harsh conditions and provide long-term stability. Ideal for applications in food & beverage, pulp & paper, water & wastewater, power generation, and general industrial environments.
Product Specifications
Additional Technical Information Adjustment
By 3 push buttons on display or optional HART® protocol
Additional Technical Information Ambient Temperature Range
-4 to 158 ºF | -20 to 70 ºC
Additional Technical Information Approximate Weight
3.3 lb
Additional Technical Information Connection Material
316 Stainless Steel
Additional Technical Information Flange Temperature Range
-4 to 212 ºF | -20 to 100 ºC
Additional Technical Information Measuring Element
316 Stainless Steel (Hastelloy C or Tantalum optional)
Additional Technical Information Response Time
<100 ms
Additional Technical Information Service Life
>10 y
Additional Technical Information Stability
<0.1%/year
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Options And Accessories Digital Indicators
NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters.
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Related Items Related Items
2070-MFS, 1/2" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Hard Seat, 0.187" Orifice Block and Bleed 2-Valve | 504-MFS, 1/2" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Soft Seat, 0.187" Orifice Needle Valve
Specifications Accuracy
±0.2% of adjusted span with 4:1 turn down
Specifications Applications
Food & beveragePulp & paperWater & wastewaterPower generationGeneral Industrial
Specifications Electrical Connection
PG9 Cable Gland
Specifications Environmental Rating
IP66
Specifications Materials Of Construction Wetted Parts
316 Stainless Steel with 304 Stainless Steel housing
Specifications Media Temperature Range
-4 to 176 ºF | -20 to 80 ºC
Specifications Output Signal
4 mA to 20 mA, 2-wire
Specifications Power Requirement
12 Vdc to 36 Vdc
Specifications Pressure Range
Min. span 14.5 psi, max. span 58 psi (lowest vacuum pressure -15 psig)
Specifications Process Connection
Threaded flush diaphragm for flange
Specifications Product Series
PTI20 Intelligent Pressure Transmitter
