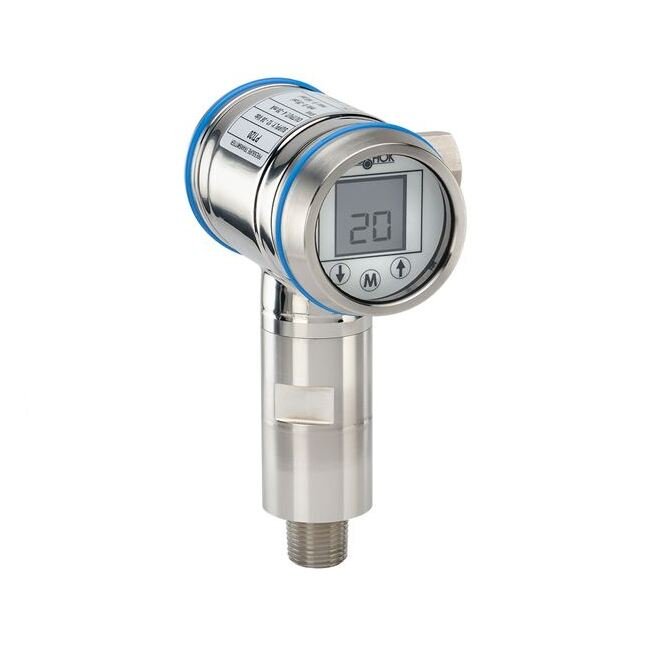

The NOSHOK PTI20 Series Intelligent Industrial Pressure Transmitters & Transducers offer exceptional accuracy with a pressure range of 87 psi to 350 psi, making them suitable for various industries including food & beverage, pulp & paper, and power generation. With a 4 mA to 20 mA output signal, 2-wire HART® communication, and durable stainless steel construction, these transmitters ensure reliable performance in demanding environments. Designed with IP66 environmental rating and compliance with industry standards, they provide long service life and precise measurement capabilities.
Product Specifications
Additional Technical Information Adjustment
By 3 push buttons on display or optional HART® protocol
Additional Technical Information Ambient Temperature Range
-4 to 158 ºF | -20 to 70 ºC
Additional Technical Information Approximate Weight
3.3 lb
Additional Technical Information Connection Material
316 Stainless Steel
Additional Technical Information Flange Temperature Range
-4 to 212 ºF | -20 to 100 ºC
Additional Technical Information Measuring Element
316 Stainless Steel (Hastelloy C or Tantalum optional)
Additional Technical Information Response Time
<100 ms
Additional Technical Information Service Life
>10 y
Additional Technical Information Stability
<0.1%/year
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Options And Accessories Digital Indicators
NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters.
Options And Accessories Options
TC Transparent Cover (for display)
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Related Items Related Items
2070-MFS, 1/2" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Hard Seat, 0.187" Orifice Block and Bleed 2-Valve | 504-MFS, 1/2" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Soft Seat, 0.187" Orifice Needle Valve
Specifications Accuracy
±0.2% of adjusted span with 4:1 turn down
Specifications Applications
Food & beveragePulp & paperWater & wastewaterPower generationGeneral Industrial
Specifications Electrical Connection
1/2" National Pipe Thread (NPT) female
Specifications Environmental Rating
IP66
Specifications Materials Of Construction Wetted Parts
316 Stainless Steel with 304 Stainless Steel housing
Specifications Media Temperature Range
-4 to 176 ºF | -20 to 80 ºC
Specifications Output Signal
4 mA to 20 mA, 2-wire with HART®
Specifications Power Requirement
12 Vdc to 36 Vdc
Specifications Pressure Range
Min. span 87 psi, max. span 350 psi (lowest vacuum pressure -15 psig)
Specifications Process Connection
1/2" National Pipe Thread (NPT) male
Specifications Product Series
PTI20 Intelligent Pressure Transmitter
