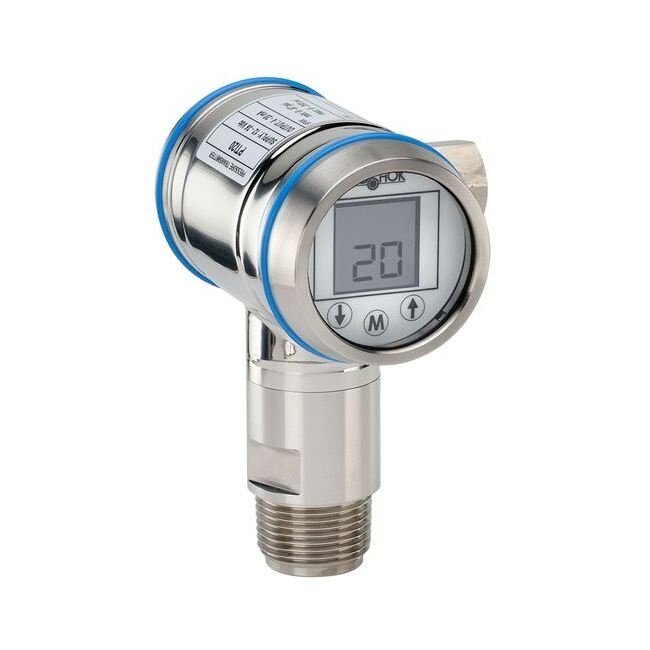

NOSHOK PTI20 Series Intelligent Industrial Pressure Transmitters & Transducers
NOSHOK PTI20 Series Intelligent Industrial Pressure Transmitters & Transducers
SKU:NOS-2166a5
Precision industrial pressure transmitters with 5.8-23 psi range, ±0.2% accuracy, 4-20 mA output signal & durable stainless steel construction.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
NOSHOK PTI20 Series Intelligent Industrial Pressure Transmitters & Transducers
$499.99
Quantity: 1
Claim Your Seller Account
NOSHOK PTI20 Series Intelligent Industrial Pressure Transmitters & Transducers
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOSHOK PTI20 Series Intelligent Industrial Pressure Transmitters & Transducers are precision instruments designed for industrial applications, offering a pressure range from 5.8 psi to 23 psi with excellent accuracy of ±0.2%. These transmitters provide a reliable 4 mA to 20 mA output signal, making them ideal for monitoring processes in industries such as food & beverage, pulp & paper, water & wastewater, power generation, and general industrial settings. Built with durable 316 Stainless Steel construction, these transmitters ensure long-term stability and resistance to harsh environmental conditions. With features like IP66 environmental rating, fast response time, and easy adjustment via push buttons or optional HART® protocol, the PTI20 Series transmitters are a dependable choice for demanding industrial environments.
Product Specifications
Additional Technical Information Adjustment
By 3 push buttons on display or optional HART® protocol
Additional Technical Information Ambient Temperature Range
-4 to 158 ºF | -20 to 70 ºC
Additional Technical Information Approximate Weight
3.3 lb
Additional Technical Information Connection Material
316 Stainless Steel
Additional Technical Information Flange Temperature Range
-4 to 212 ºF | -20 to 100 ºC
Additional Technical Information Measuring Element
316 Stainless Steel (Hastelloy C or Tantalum optional)
Additional Technical Information Response Time
<100 ms
Additional Technical Information Service Life
>10 y
Additional Technical Information Stability
<0.1%/year
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Options And Accessories Digital Indicators
NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters.
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Related Items Related Items
2070-MFS, 1/2" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Hard Seat, 0.187" Orifice Block and Bleed 2-Valve | 504-MFS, 1/2" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Soft Seat, 0.187" Orifice Needle Valve
Specifications Accuracy
±0.2% of adjusted span with 4:1 turn down
Specifications Applications
Food & beveragePulp & paperWater & wastewaterPower generationGeneral Industrial
Specifications Electrical Connection
1/2" National Pipe Thread (NPT) female
Specifications Environmental Rating
IP66
Specifications Materials Of Construction Wetted Parts
316 Stainless Steel with 304 Stainless Steel housing
Specifications Media Temperature Range
-4 to 176 ºF | -20 to 80 ºC
Specifications Output Signal
4 mA to 20 mA, 2-wire
Specifications Power Requirement
12 Vdc to 36 Vdc
Specifications Pressure Range
Min. span 5.8 psi, max. span 23 psi (lowest vacuum pressure -15 psig)
Specifications Process Connection
1" National Pipe Thread (NPT) male flush
Specifications Product Series
PTI20 Intelligent Pressure Transmitter
