NOSHOK PTI30 High Accuracy Industrial Pressure Transmitter
NOSHOK PTI30 High Accuracy Industrial Pressure Transmitter
SKU:NOS-d4280c
NOSHOK PTI30: High precision, reliable 2-wire pressure transmitter for industrial applications. 1.45-5.8 psi range, ±0.1% accuracy, IP66 rated. Ideal for food & beverage, power generation.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
NOSHOK PTI30 High Accuracy Industrial Pressure Transmitter
$349.99
Quantity: 1
Claim Your Seller Account
NOSHOK PTI30 High Accuracy Industrial Pressure Transmitter
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

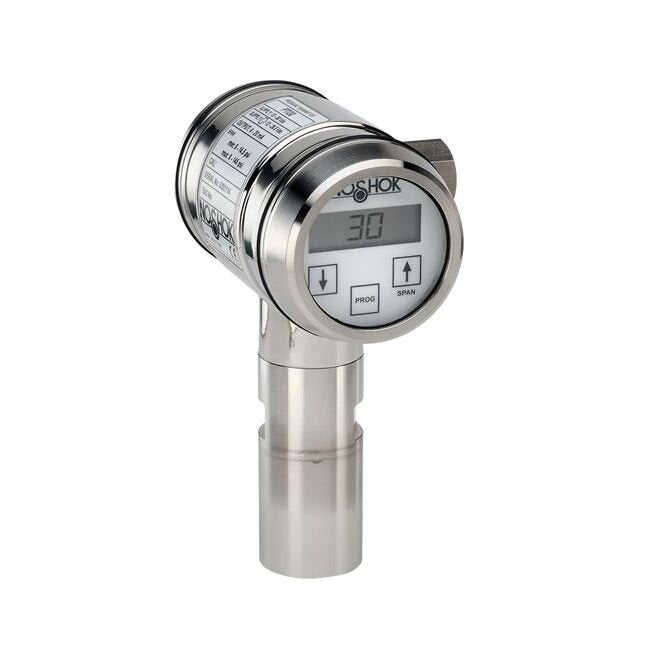

The NOSHOK PTI30 Series High Accuracy Intelligent Industrial Pressure Transmitter sets the standard for precision and reliability in industrial pressure measurement. With a pressure range from 1.45 psi to 5.8 psi, this transmitter offers accuracy of ±0.1% of adjusted span with 10:1 turn down, making it ideal for critical applications. This 2-wire transmitter with HART® protocol features a durable 316 Stainless Steel construction, IP66 environmental rating, and a wide media temperature range from -4 to 176 ºF. Trusted by industries like food & beverage, pulp & paper, and power generation, the NOSHOK PTI30 ensures long-term performance and accurate readings. Upgrade to NOSHOK for superior quality and performance in pressure measurement.
Product Specifications
Additional Technical Information Adjustment
By 3 push buttons on display or optional HART® protocol
Additional Technical Information Ambient Temperature Range
-4 to 158 ºF | -20 to 70 ºC
Additional Technical Information Approximate Weight
3.3 lb
Additional Technical Information Connection Material
316 Stainless Steel
Additional Technical Information Flange Temperature Range
-4 to 212 ºF | -20 to 100 ºC
Additional Technical Information Measuring Element
316 Stainless Steel (Hastelloy C, Tantalum or Goldplated Optional)
Additional Technical Information Response Time
<250 ms
Additional Technical Information Service Life
>10 y
Additional Technical Information Stability
<0.1%/year
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Options And Accessories Digital Indicators
NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters.
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Related Items Related Items
2070-MFS, 1/2" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Hard Seat, 0.187" Orifice Block and Bleed 2-Valve | 504-MFS, 1/2" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Soft Seat, 0.187" Orifice Needle Valve
Specifications Accuracy
±0.1% of adjusted span with 10:1 turn down
Specifications Applications
Food & beveragePulp & paperWater & wastewaterPower generationGeneral Industrial
Specifications Electrical Connection
1/2 National Pipe Thread (NPT) female
Specifications Environmental Rating
IP66
Specifications Materials Of Construction Wetted Parts
316 Stainless Steel with 304 Stainless Steel housing
Specifications Media Temperature Range
-4 to 176 ºF | -20 to 80 ºC
Specifications Output Signal
4 mA to 20 mA, 2-wire with HART®
Specifications Power Requirement
12 Vdc to 36 Vdc
Specifications Pressure Range
Min. span 1.45 psi, max. span 5.8 psi (lowest vacuum pressure -5.8 psig)
Specifications Process Connection
1/2 National Pipe Thread (NPT) female
Specifications Product Series
PTI30 High Accuracy Intelligent Pressure Transmitter
