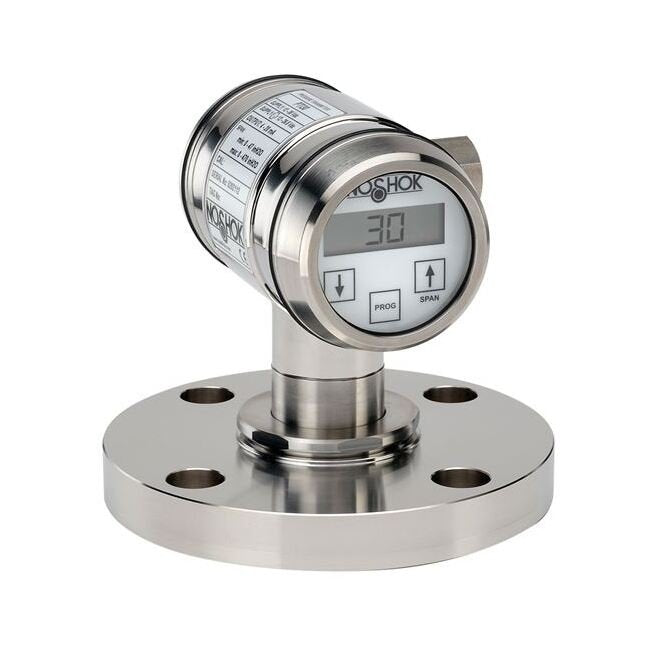

NOSHOK PTI30 High Accuracy Pressure Transmitter & Transducer
NOSHOK PTI30 High Accuracy Pressure Transmitter & Transducer
SKU:NOS-d7c0ee
High Accuracy Intelligent Pressure Transmitter with 4-17.4 psi range, ±0.1% accuracy, ideal for industrial applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
NOSHOK PTI30 High Accuracy Pressure Transmitter & Transducer
$899.99
Quantity: 1
Claim Your Seller Account
NOSHOK PTI30 High Accuracy Pressure Transmitter & Transducer
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOSHOK PTI30 Series High Accuracy Intelligent Industrial Pressure Transmitter & Transducer is a precision-engineered solution designed to meet the demanding requirements of industrial applications. With a pressure range from 4 psi to 17.4 psi, this transmitter ensures accuracy with a deviation of only ±0.1% of the adjusted span. It features a 4 mA to 20 mA output signal, 2-wire connection with HART® protocol, and a robust construction with 316 Stainless Steel wetted parts. Suitable for various industries including food & beverage, pulp & paper, water & wastewater, and power generation, this transmitter guarantees reliable performance in diverse environments.
Product Specifications
Additional Technical Information Adjustment
By 3 push buttons on display or optional HART® protocol
Additional Technical Information Ambient Temperature Range
-4 to 158 ºF | -20 to 70 ºC
Additional Technical Information Approximate Weight
3.3 lb
Additional Technical Information Connection Material
316 Stainless Steel
Additional Technical Information Flange Temperature Range
-4 to 212 ºF | -20 to 100 ºC
Additional Technical Information Measuring Element
316 Stainless Steel (Hastelloy C, Tantalum or Goldplated Optional)
Additional Technical Information Response Time
<250 ms
Additional Technical Information Service Life
>10 y
Additional Technical Information Stability
<0.1%/year
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Options And Accessories Digital Indicators
NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters.
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Related Items Related Items
2070-MFS, 1/2" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Hard Seat, 0.187" Orifice Block and Bleed 2-Valve | 504-MFS, 1/2" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Soft Seat, 0.187" Orifice Needle Valve
Specifications Accuracy
±0.1% of adjusted span with 10:1 turn down
Specifications Applications
Food & beveragePulp & paperWater & wastewaterPower generationGeneral Industrial
Specifications Electrical Connection
PG9 Cable Gland
Specifications Environmental Rating
IP66
Specifications Materials Of Construction Wetted Parts
316 Stainless Steel with 304 Stainless Steel housing
Specifications Media Temperature Range
-4 to 176 ºF | -20 to 80 ºC
Specifications Output Signal
4 mA to 20 mA, 2-wire with HART®
Specifications Power Requirement
12 Vdc to 36 Vdc
Specifications Pressure Range
Min. span 4 psi, max. span 17.4 psi (lowest vacuum pressure -15 psig)
Specifications Process Connection
1-1/2" American National Standards Institute (ANSI) 150# flange
Specifications Product Series
PTI30 High Accuracy Intelligent Pressure Transmitter
