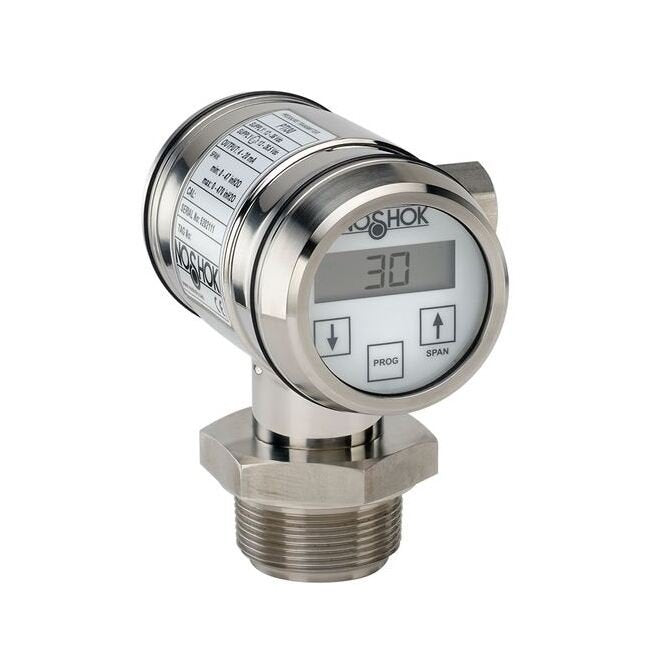

NOSHOK PTI30 Series Industrial Pressure Transmitters

NOSHOK PTI30 Series Industrial Pressure Transmitters

SKU:NOS-22f695

NOSHOK PTI30 Series Industrial Pressure Transmitters offer unmatched accuracy and reliability for critical industrial applications. 316 Stainless Steel construction with IP66 rating ensures durability and longevity.

Regular price $549.99
Regular price Sale price $549.99
Sale

Initiate Order

NOSHOK PTI30 Series Industrial Pressure Transmitters

NOSHOK PTI30 Series Industrial Pressure Transmitters

$549.99

Quantity: 1

Claim Your Seller Account

NOSHOK PTI30 Series Industrial Pressure Transmitters

NOSHOK PTI30 Series Industrial Pressure Transmitters

$549.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The NOSHOK PTI30 Series High Accuracy Intelligent Industrial Pressure Transmitters & Transducers offer unparalleled precision with a pressure range of 1.45 psi to 5.8 psi. With an accuracy of ±0.1% and a stable output signal of 4 mA to 20 mA, these transmitters are ideal for critical industrial applications in food & beverage, pulp & paper, water & wastewater, power generation, and general industry. Constructed with 316 Stainless Steel and featuring an IP66 environmental rating, these transmitters ensure reliability and longevity even in harsh conditions. The PTI30 Series can be easily adjusted via push buttons or HART® protocol, providing flexibility and ease of use.

Product Specifications

Additional Technical Information Adjustment
By 3 push buttons on display or optional HART® protocol
Additional Technical Information Ambient Temperature Range
-4 to 158 ºF | -20 to 70 ºC
Additional Technical Information Approximate Weight
3.3 lb
Additional Technical Information Connection Material
316 Stainless Steel
Additional Technical Information Flange Temperature Range
-4 to 212 ºF | -20 to 100 ºC
Additional Technical Information Measuring Element
316 Stainless Steel (Hastelloy C, Tantalum or Goldplated Optional)
Additional Technical Information Response Time
<250 ms
Additional Technical Information Service Life
>10 y
Additional Technical Information Stability
<0.1%/year
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Options And Accessories Digital Indicators
NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters.
Options And Accessories Options
TC Transparent Cover (for display)
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Related Items Related Items
2070-MFS, 1/2" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Hard Seat, 0.187" Orifice Block and Bleed 2-Valve | 504-MFS, 1/2" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Soft Seat, 0.187" Orifice Needle Valve
Specifications Accuracy
±0.1% of adjusted span with 10:1 turn down
Specifications Applications
Food & beveragePulp & paperWater & wastewaterPower generationGeneral Industrial
Specifications Electrical Connection
PG9 Cable Gland
Specifications Environmental Rating
IP66
Specifications Materials Of Construction Wetted Parts
316 Stainless Steel with 304 Stainless Steel housing
Specifications Media Temperature Range
-4 to 176 ºF | -20 to 80 ºC
Specifications Output Signal
4 mA to 20 mA, 2-wire
Specifications Power Requirement
12 Vdc to 36 Vdc
Specifications Pressure Range
Min. span 1.45 psi, max. span 5.8 psi (lowest vacuum pressure -5.8 psig)
Specifications Process Connection
1-1/2 National Pipe Thread (NPT) male flush
Specifications Product Series
PTI30 High Accuracy Intelligent Pressure Transmitter
