NOSHOK PTI40 Premier Accuracy Pressure Transmitter
NOSHOK PTI40 Premier Accuracy Pressure Transmitter
SKU:NOS-d55f69
Get precise readings with NOSHOK PTI40 Premier Accuracy Pressure Transmitter. Ideal for industrial applications with exceptional accuracy and durability.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
NOSHOK PTI40 Premier Accuracy Pressure Transmitter
$599.99
Quantity: 1
Claim Your Seller Account
NOSHOK PTI40 Premier Accuracy Pressure Transmitter
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOSHOK PTI40 Series Premier Accuracy Intelligent Industrial Pressure Transmitters & Transducers offer unparalleled precision with a pressure range of 0.15 psi to 6.0 psi and an exceptional accuracy of ±0.075% of adjusted span. Designed for industrial applications, these transmitters provide a 4 mA to 20 mA output signal with HART communication for seamless integration. Built with durable 316 Stainless Steel construction, they feature IEC 61518 flange with bleed valves and exceptional environmental and temperature ranges. Ensure reliability and accuracy with NOSHOK's premier pressure transmitters.
Product Specifications
Additional Technical Information Adjustment
By 1 push button joystick on display or HART® protocol
Additional Technical Information Ambient Temperature Range
-4 to 158 ºF | -20 to 70 ºC
Additional Technical Information Approximate Weight
6.9 lb
Additional Technical Information Connection Material
316 Stainless Steel
Additional Technical Information Measuring Element
316 Stainless Steel (Hastelloy C or Gold plated optional)
Additional Technical Information Response Time
<200 ms
Additional Technical Information Service Life
>10 y
Additional Technical Information Stability
<0.1%/year
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Options And Accessories Digital Indicators
NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters.
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Related Items Related Items
3010-MFS, Hard Seat, Flange x 1/2" National Pipe Thread (NPT) Female, 316 Stainless Steel, 0.187" Orifice 3 Manifold Valve | 3010-MMS, Hard Seat, Flange x Flange, 316 Stainless Steel, 0.187" Orifice 3 Manifold Valve | 5030-MFS-FP, Hard Seat, Flange x 1/2" National Pipe Thread (NPT) Female, 316 Stainless Steel, Flare Patternâ¢, 0.187" Orifice 5 Manifold Valve | 5030-MMS-FP, Hard Seat, Flange x Flange, 316 Stainless Steel, Flare Patternâ¢, 0.187" Orifice 5 Manifold Valve
Specifications Accuracy
±0.075% of adjusted span with up to 100:1 turn down
Specifications Applications
Food & beveragePulp & paperWater & wastewaterPower generationGeneral Industrial
Specifications Electrical Connection
1/2" National Pipe Thread (NPT) female
Specifications Environmental Rating
IP66
Specifications Materials Of Construction Wetted Parts
316 Stainless Steel with 304 Stainless Steel housing
Specifications Media Temperature Range
-4 to 176 ºF | -20 to 80 ºC
Specifications Output Signal
4 mA to 20 mA, 2-wire with HART
Specifications Power Requirement
12 Vdc to 36 Vdc
Specifications Pressure Range
Min. span 0.15 psi, max. span 6.0 psi
Specifications Process Connection

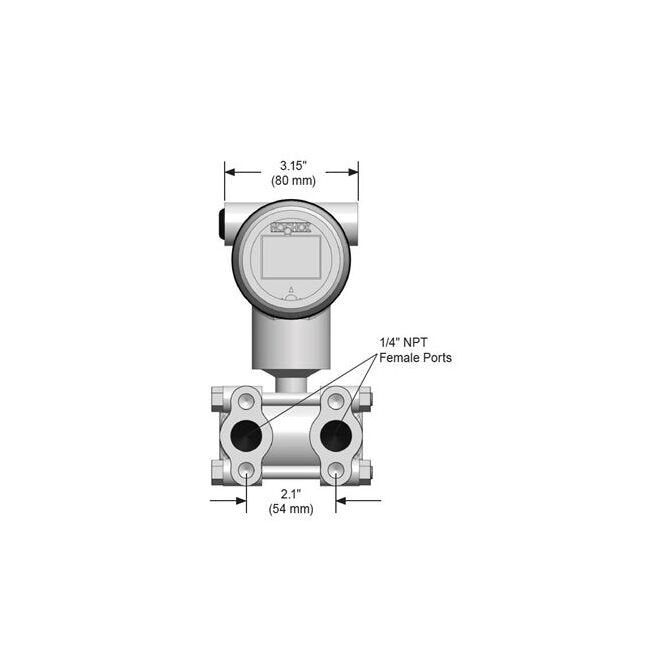

1/4" National Pipe Thread (NPT) female IEC 61518 flange with bleed valves
Specifications Product Series
PTI40 Premier Accuracy Intelligent Pressure Transmitter
