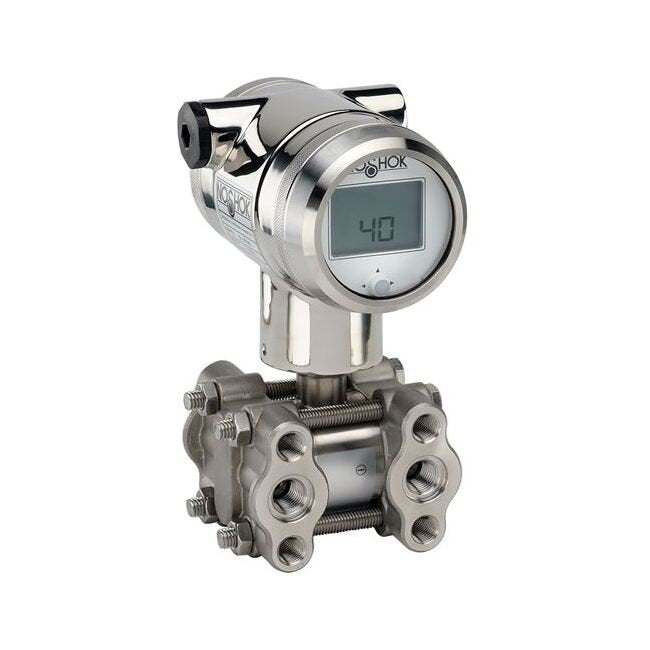

NOSHOK PTI40 Premier Industrial Pressure Transmitter
NOSHOK PTI40 Premier Industrial Pressure Transmitter
SKU:NOS-ddee26
Get precise pressure measurements with the NOSHOK PTI40 Premier Accuracy Industrial Pressure Transmitter. Rugged, reliable, and accurate.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
NOSHOK PTI40 Premier Industrial Pressure Transmitter
$699.99
Quantity: 1
Claim Your Seller Account
NOSHOK PTI40 Premier Industrial Pressure Transmitter
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOSHOK PTI40 Series Premier Accuracy Intelligent Industrial Pressure Transmitter & Transducer is a high-performance solution designed for industrial applications where precision and reliability are paramount. With a pressure range from 0.15 psi to 1.0 psi and an accuracy of ±0.075% of adjusted span, this transmitter offers exceptional performance with up to 100:1 turn down. It features a 4 mA to 20 mA output signal, 1/4" NPT female IEC 61518 flange with bleed valves, and a 1/2" NPT female electrical connection. Constructed with 316 Stainless Steel housing and a transparent cover, this transmitter ensures durability and longevity in demanding environments. Ideal for food & beverage, pulp & paper, water & wastewater, power generation, and general industrial applications.
Product Specifications
Additional Technical Information Adjustment
By 1 push button joystick on display or HART® protocol
Additional Technical Information Ambient Temperature Range
-4 to 158 ºF | -20 to 70 ºC
Additional Technical Information Approximate Weight
6.9 lb
Additional Technical Information Connection Material
316 Stainless Steel
Additional Technical Information Measuring Element
316 Stainless Steel (Hastelloy C or Gold plated optional)
Additional Technical Information Response Time
<200 ms
Additional Technical Information Service Life
>10 y
Additional Technical Information Stability
<0.1%/year
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Options And Accessories Digital Indicators
NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters.
Options And Accessories Options
TC Transparent Cover (for display)
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Related Items Related Items
3010-MFS, Hard Seat, Flange x 1/2" National Pipe Thread (NPT) Female, 316 Stainless Steel, 0.187" Orifice 3 Manifold Valve | 3010-MMS, Hard Seat, Flange x Flange, 316 Stainless Steel, 0.187" Orifice 3 Manifold Valve | 5030-MFS-FP, Hard Seat, Flange x 1/2" National Pipe Thread (NPT) Female, 316 Stainless Steel, Flare Patternâ¢, 0.187" Orifice 5 Manifold Valve | 5030-MMS-FP, Hard Seat, Flange x Flange, 316 Stainless Steel, Flare Patternâ¢, 0.187" Orifice 5 Manifold Valve
Specifications Accuracy
±0.075% of adjusted span with up to 100:1 turn down
Specifications Applications
Food & beveragePulp & paperWater & wastewaterPower generationGeneral Industrial
Specifications Electrical Connection
1/2" National Pipe Thread (NPT) female
Specifications Environmental Rating
IP66
Specifications Materials Of Construction Wetted Parts
316 Stainless Steel with 304 Stainless Steel housing
Specifications Media Temperature Range
-4 to 176 ºF | -20 to 80 ºC
Specifications Output Signal
4 mA to 20 mA, 2-wire with HART
Specifications Power Requirement
12 Vdc to 36 Vdc
Specifications Pressure Range
Min. span 0.15 psi, max. span 1.0 psi
Specifications Process Connection

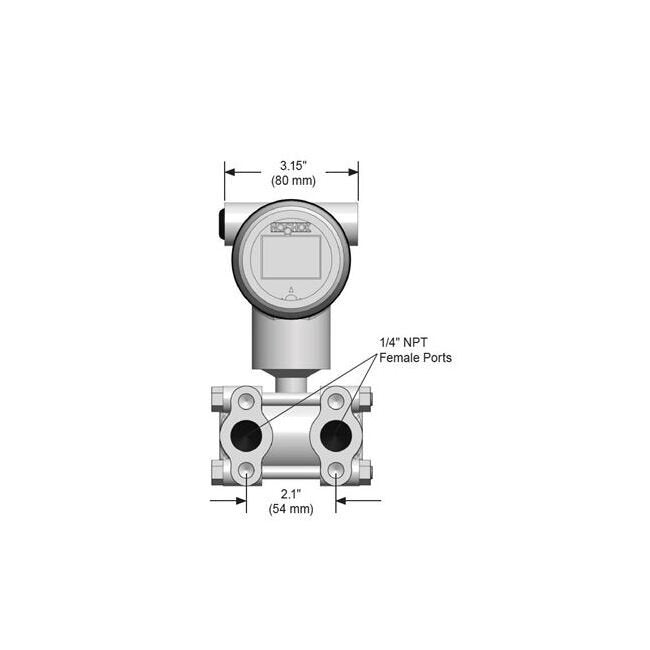

1/4" National Pipe Thread (NPT) female IEC 61518 flange with bleed valves
Specifications Product Series
PTI40 Premier Accuracy Intelligent Pressure Transmitter
