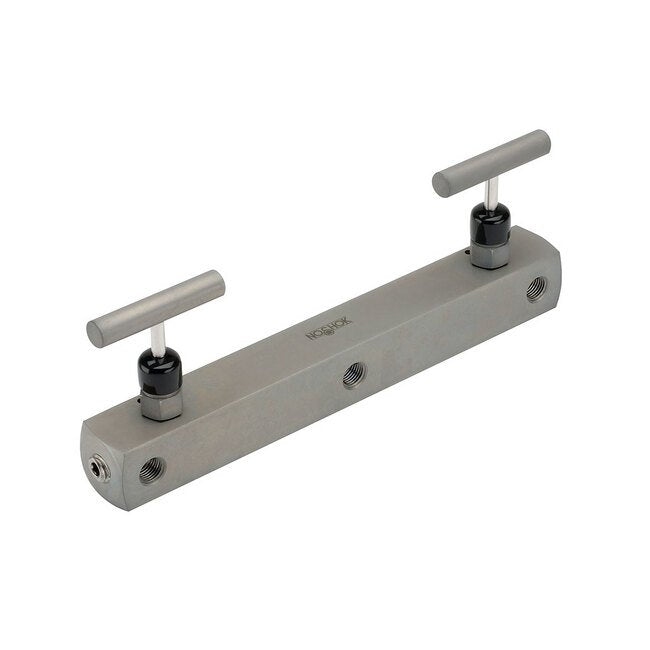

NOSHOK Soft Seat 1/4" NPT Steel 2-Valve Chart Recorder Manifold
NOSHOK Soft Seat 1/4" NPT Steel 2-Valve Chart Recorder Manifold
SKU:NOS-cdfbe3
High-performance NOSHOK Soft Seat 2-Valve Chart Recorder Manifold for reliable and precise control.
Regular price
$336.92
Regular price
Sale price
$336.92
Unit price
per
Initiate Order
NOSHOK Soft Seat 1/4" NPT Steel 2-Valve Chart Recorder Manifold
$336.92
Quantity: 1
Claim Your Seller Account
NOSHOK Soft Seat 1/4" NPT Steel 2-Valve Chart Recorder Manifold
$336.92
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOSHOK Soft Seat 2-Valve Chart Recorder Manifold is designed to ensure optimal performance and reliability for chart recorders. With a zinc-nickel plated steel and electropolished 316 Stainless Steel construction, this manifold features a replaceable Acetal seat and straight through porting for bidirectional, high-capacity flow. It is helium leak tested to 1 x 10-4 ml/s, making it ideal for critical applications. The manifold is rated at 6,000 psi with an orifice size of 0.187 inches, offering precise control and durability.
Product Specifications
Additional Information Additional Information
Blow-out proof stem provides a secondary stem seal in the full open positionFKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE packing optionalAll stems are 316 Stainless SteelAll stem threads are rolled for strength and ease of operationOne-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threadsSlotted spring pin to prevent accidental looseningVinyl dust caps for bonnets and stems (non-packing)
Additional Options Additional Options
PackingsPTFE (P1)Stem TipsNon-rotating (316 stainless) (T1)O-ringsEPDM (EM1)FFKM (Perfluoroelastomer ( FFKM) 3018 or equivalent) (KZ1)NBR (NB1)Note for O-rings - Other o-ring materials available on request.Handles1" Round knurled (HL3)1-3/8" Phenolic (HL4)1-3/4" Phenolic (HL5)
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Options And Accessories Installed Options And Accessories
PackingPTFE Manifold Gasket Ring (RG1-TF1)Graphite Manifold Gasket (RG1-GF1)
Options And Accessories O Ring Options
Aflas (AF1) (For 1/8" NPT to 1/2" NPT only)Perfluoroelastomer (FFKM) 3018 (KZ1) (For 1/8" NPT to 1/2" NPT only)Perfluoroelastomer (FFKM) 4079 (KZ2) (For 1/8" NPT to 1/2" NPT only)Simriz 89D (KZ3) (For 1/8" NPT to 1/2" NPT only)Perfluoroelastomer (FFKM) 7075 (KZ4) (For 1/8" NPT to 1/2" NPT only)Elast O Lion (EL1) (For 1/8" NPT to 1/2" NPT only)EPDM 80 (EM1) (For 1/8" NPT to 1/2" NPT only)EPDM 90 (EM2) (For 1/8" NPT to 1/2" NPT only)EPDM 70 (EM3) (For 1/8" NPT to 1/2" NPT only)NBR 70 (NB1) (For 1/8" NPT to 1/2" NPT only)EPDM 70 (EM1) (For 3/4" NPT to 1-1/2" NPT only)Perfluoroelastomer (FFKM) 4079 (KZ2) (For 3/4" NPT to 1-1/2" NPT only)Elast O Lion (EL1) (For 3/4" NPT to 1-1/2" NPT only)Low Temperature FKM (VT1) (For 1/8" NPT to 1/2" NPT only)Low Temperature FKM (VT2) (For 3/4" NPT to 1-1/2" NPT only)
Options Options
o-ring materials, handles, packings, regulating stem and stem tips
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications Connection Size
1/4 in
Specifications Connection Type
National Pipe Thread (NPT)
Specifications Flow Coefficient Cv
0.76
Specifications List Price
336.92 USD
Specifications Materials
Zinc-nickel plated steel, electropolished 316 Stainless Steel
Specifications Orifice Size
0.187 in
Specifications Pressure Rating At 200 Degree Fahrenheit F Temper
6,000 psi
Specifications Process Type
Chart Recorder Manifold
Specifications Seat
Soft Seat
Specifications Series
2-Valve
Specifications Stem Seal And Type
All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) packing optional
Specifications Type
Manifold Valve
Specifications Valve Material
Steel
Specifications Valve Type
Female-Female
Specifications Warranty
3 y
