NOSHOK Stainless Steel Stabilized Connector Valve Pair
NOSHOK Stainless Steel Stabilized Connector Valve Pair
SKU:NOS-07cca9
High-performance stainless steel connector pair with integral block valve for gas flow control, rated at 6,000 psi, ideal for secure installations.
Regular price
$609.30
Regular price
Sale price
$609.30
Unit price
per
Initiate Order
NOSHOK Stainless Steel Stabilized Connector Valve Pair
$609.30
Quantity: 1
Claim Your Seller Account
NOSHOK Stainless Steel Stabilized Connector Valve Pair
$609.30
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

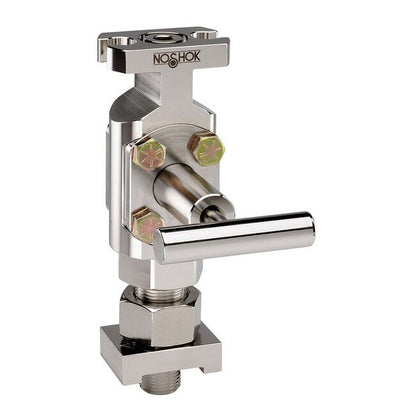

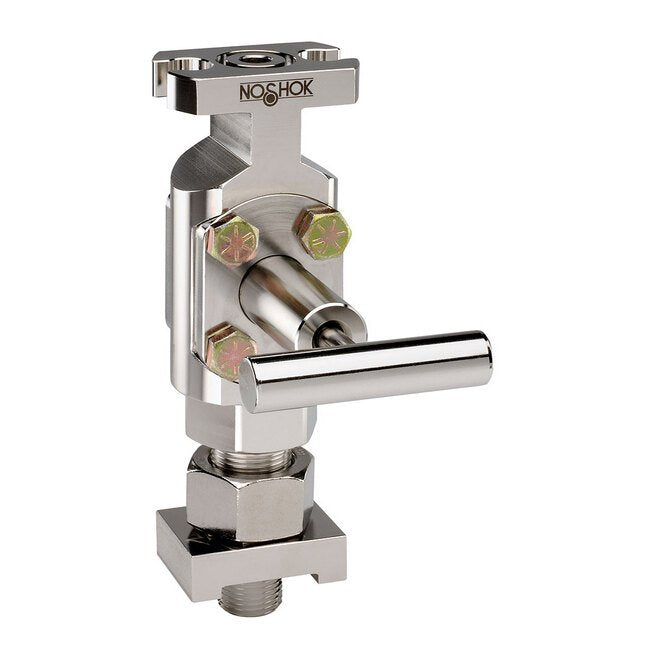

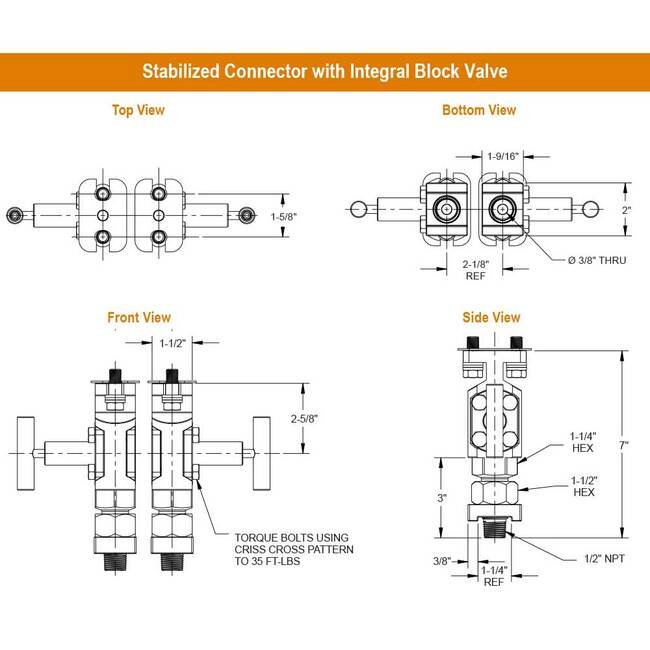

The NOSHOK SV Series Stabilized Connectors with Integral Block Valve offer unparalleled performance and durability for both consumer and institutional buyers. Constructed from high-grade stainless steel, these connectors feature a 0.375" bore for unrestricted gas flow, a pressure rating of 6,000 psi at 200°F, and a flow coefficient (Cv) of 3.0. With a weight of 10.6 lb and compatible with 1/2" connections, these connectors are designed to shift radial-stress load away from NPT connections, ensuring a secure and reliable installation. The design includes features such as a blow-out proof stem, replaceable Acetal seat, and straight through porting for bidirectional flow. Ideal for flat installations, these connectors come with a 3-year warranty for added peace of mind.
Product Specifications
Additional Information Additional Information

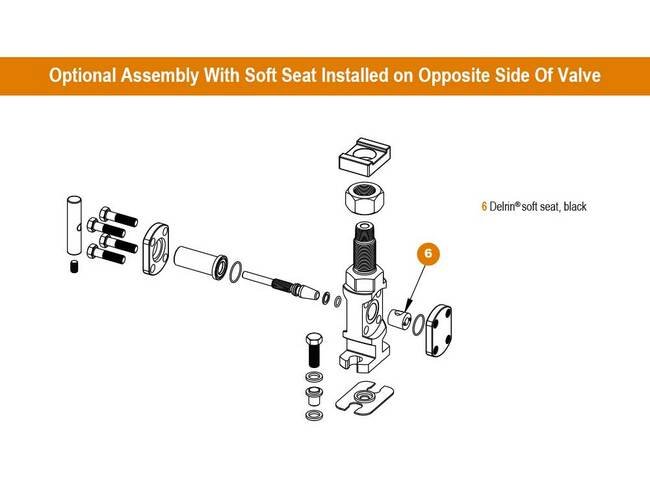

Non-rotating stem tip standard on block valvesBlow-out proof stem provides a secondary stem seal in the full open positionFeatures a replaceable Acetal seat, and straight through porting for bidirectional, high capacity flow and easy roddable cleaning on the block valvesMetal body-to-bonnet and body-to-flange plug with secondary o-ring seals FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and gallingIncludes PTFE gaskets and carbon steel bolts for manifold installationOptional dielectric barrier creates a non-conductive shield between the instrument and the orifice fitting
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Options And Accessories Dielectric Kits Dk Series

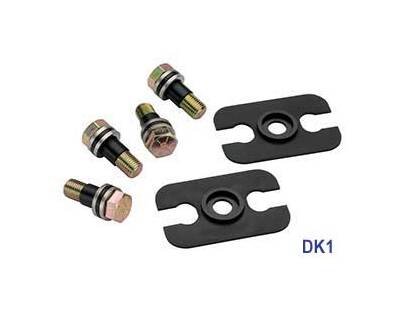

Dielectric Kits are designed to maintain the integrity and reliability of the pipeline and piping system through safety and corrosion protection. Dielectric Kits provide a non-conductive barrier between the process piping and the instrument and isolate components from the effects of electrical current. By eliminating metal-to-metal contact, current is halted to prevent corrosion and aid in the cathodic protection of the system.One Piece Dielectric Gasket, Pair, Steel, Acetal (DK1)One Piece Dielectric Gasket, Pair with Stainless Steel Bolts, Stainless Steel, Acetal (DK1-SS)PTFE Gasket with Dielectric Shim, Pair, Steel, PTFE, PVC (DK2)DK1Single piece design combining a Acetal sealing gasket and Acetal dielectric shimBolts, washers and dielectric bushings are included with the kitsCannot be used in conjunction with seal rings or o-ringsSeal rings or o-rings not requiredDK2Used as an alternative to a one-piece design when a separate sealing gasket or o-ring is requiredTwo piece design consisting of a PTFE sealing gasket and PVC dielectric shimBolts, washers and dielectric bushings are included with the kitsSpecifications:Material: Acetal, PVCMax operating temp 150 ºFDielectric strength exceeds 1/32 air arc gap approximately 2,500 VdcAll 316SS products meet the requirements of NACE MR0175/ISO 15156-3.
Options And Accessories Direct Connect Assembly For Oil And Gas

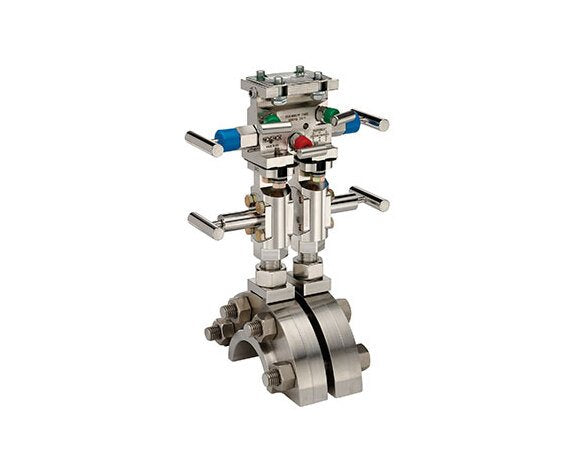

The NOSHOK Direct Connect Assembly provides an installation that keeps the meter close to the orifice taps for accurate flow measurements.
Options And Accessories Installed Options And Accessories
Low temperature FKM o-ring (VT3)
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications Bolt Material
Carbon Steel
Specifications Connection Size
1/2 in
Specifications Connection Type
National Pipe Thread (NPT), Flange
Specifications Connector Type
Stabilized connector pair with integral valve (For flat installations, orifice fitting)
Specifications Flow Coefficient Cv
3.0
Specifications List Price
609.30 USD
Specifications Material
Stainless Steel
Specifications Orifice Size
0.375 in
Specifications Pressure Rating At 200 Degree Fahrenheit F Temper
6,000 psi
Specifications Related Items
VHS, 316 Stainless Steel Vertical to Horizontal Manifold Adapter
Specifications Series
SV
Specifications Stem Seal And Type
All 316 Stainless Steel stems with FKM o-ring and PTFE back-up ring below the threads
Specifications Type
Stabilized Connector
Specifications Warranty
3 y
Specifications Weight
10.6 lb
