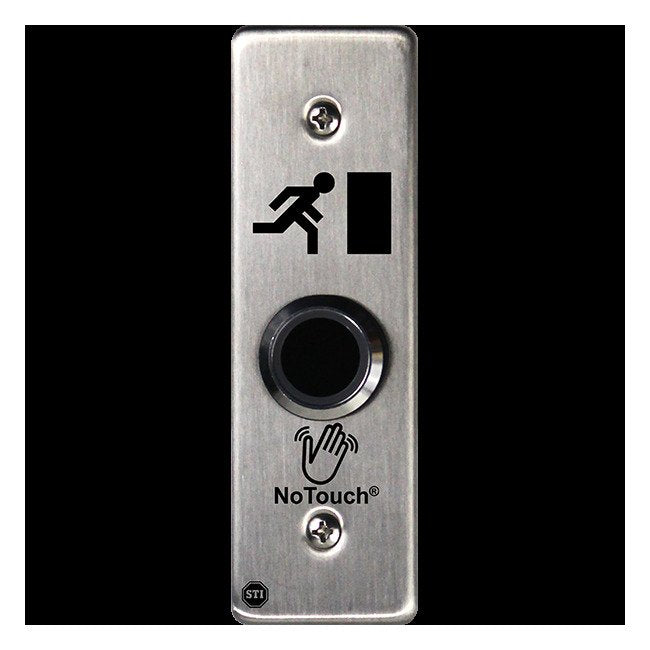

NoTouch® Slim/Mullion Mount, Door Symbol Stainless Steel Infrared (IR) Pushbutton Switch
NoTouch® Slim/Mullion Mount, Door Symbol Stainless Steel Infrared (IR) Pushbutton Switch
SKU:NOT-77b7d7
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
NoTouch® Slim/Mullion Mount, Door Symbol Stainless Steel Infrared (IR) Pushbutton Switch
$49.99
Quantity: 1
Claim Your Seller Account
NoTouch® Slim/Mullion Mount, Door Symbol Stainless Steel Infrared (IR) Pushbutton Switch
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Helps Stop the Spread of GermsThis touch free button applies NoTouch® technology which helps eliminate the spread of germs in any public building. To exit, a person must simply wave their hand in front of the device. The infrared will detect the motion and unlatch the time adjustable door.
Product Specifications
Accessories
KIT-BB0SS - Surface mount back box for NoTouch® Slim/Mullion Stainless Steel Button
Additional Information
The button is constructed of corrosion resistant stainless steel, allowing it to take tough knocks in stride. Also, the faceplate is slightly oversized for retrofit applications to cover marks from a previous install. This durable and long lasting button is easily installed within minutes right on site.NoTouch® Stainless Steel Button offers three standard models: OPEN, EXIT and the international exit symbol representing a person exiting. Custom models are also available with printing capabilities at STI’s corporate and international offices.
Approvals And Warranty Testing
It has been tested and approved or listed by:Conformity European (CE)UK Conformity Assessed (CA)
Approvals And Warranty Warranty
One year guarantee on electro mechanical and electronic components.
Features
NoTouch® infrared wave actionAllows user to exit a protected door without the touch of a buttonTo exit, person waves hand in front of the IR switchHelps reduce the spread of germsFaceplate constructed of medical/food grade 304 stainless steelDual color status LED (green/red)Form "C" dry contact, 0.5A at 120VAC, 1A at 24VDC
How It Works

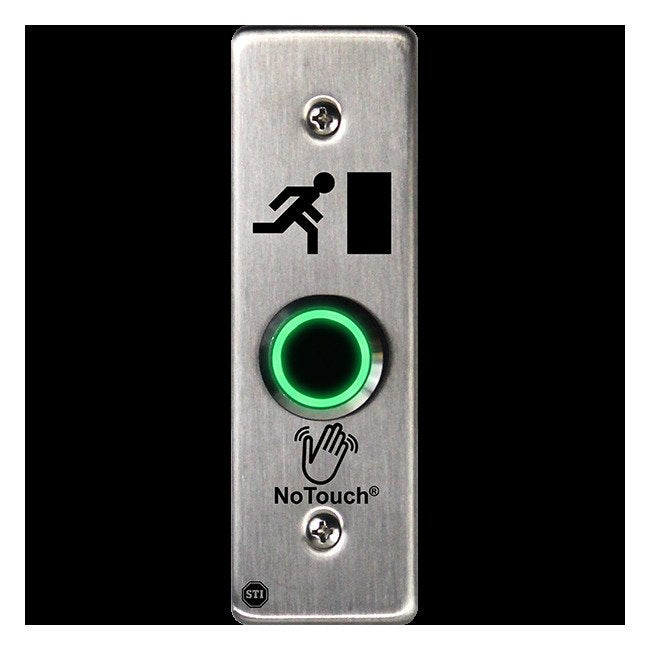

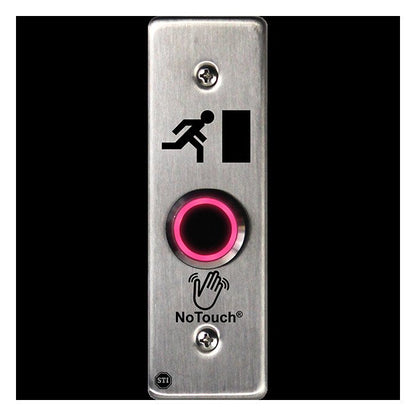

Buttons are shipped with the red light indicating standby, and it changes to green when active. Wave a hand in front of the red illuminated button and the color turns to green indicating the door released. Option for the opposite colors, green/standby and red/active, can be easily changed on site.
Key Features Construction
Faceplate is constructed of medical/food grade 304 stainless steel.
Key Features Electronics
NoTouch® infrared detection.
Key Features General Information
Ideal for public buildings of almost any kind.State indicator LED - Standby/Active Red/Green (default) or selectable green/red.Switch IP65.
Key Features Installation
Faceplate is slightly oversized to cover old installation marks.
Key Features Options
Available sizesSlim/Mullion mount, back box includedUS single-gang, back box availableUS double-gangEuropean single-gang, back box available
Specifications Adjustable Relay Latch Time
0.5 to 20 sec
Specifications Button Construction Material
Polycarbonate
Specifications Detection Range
1.5 to 6 in | 4 to 15 cm
Specifications Direct Current Dc Operating Voltage
12 to 24 V
Specifications Dry Contact Current At 120 Volt V Alternating Cur
0.5 A
Specifications Dry Contact Current At 24 Volt V Direct Current D
1 A
Specifications Face Plate Construction Material
304 Stainless Steel
Specifications Heavy Duty Switch Plate And Back Box Thickness
1.5 mm
Specifications Infrared Ir Sensor Operating Life
1,00,000 hours
Specifications Language
ES = Spanish | FR = French
Specifications Maximum Operating Direct Current Dc
45 mA
Specifications Maximum Slim Model Operating Current
35 mA
Specifications Mechanical Relay Operating Life
1,000,000 cycles
Specifications Operating Temperature
14 to 158 ºF | -10 to 70 ºC
Specifications Type
Slim/Mullion Mount, Door Symbol (Running Man)
