NPT Check Valve, Ball Type - Brass & Stainless Steel, 1/4" NPT Female/Male
NPT Check Valve, Ball Type - Brass & Stainless Steel, 1/4" NPT Female/Male
SKU:CHE-67920f
Reliable NPT Check Valve for liquids/gases. Brass & SS construction, high-pressure capability, metal-to-metal seat for one-way flow control.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
NPT Check Valve, Ball Type - Brass & Stainless Steel, 1/4" NPT Female/Male
$29.99
Quantity: 1
Claim Your Seller Account
NPT Check Valve, Ball Type - Brass & Stainless Steel, 1/4" NPT Female/Male
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

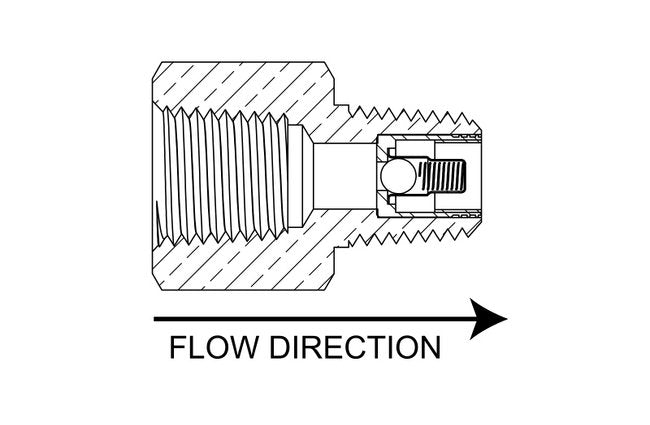

The NPT Check Valve, Ball Type, offers reliable one-way flow control for liquids or gases. Constructed with durable Brass and 304 SS materials, it ensures long-lasting performance. Featuring a high-pressure capability, choice of cracking pressure, and metal-to-metal seat construction, this valve excels in preventing reverse flow. With a max operating pressure of 200 psig and a max temperature of 300°F, it meets high industry standards for performance and durability.
Product Specifications

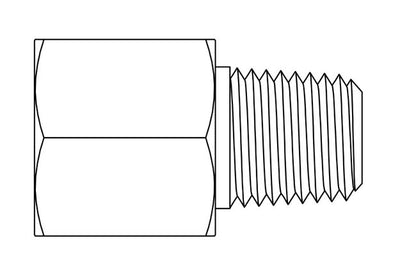

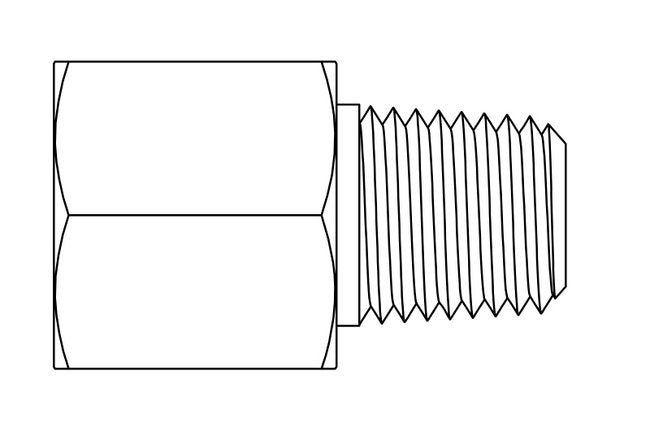

Dimensions Total Length
1.25 in
Dimensions Width Across Flats Hex
3/4 in
Features Features
All metal construction Long life operation Choice of cracking pressure High pressure capability
Flow Data Air Flow At 100 Psig
781 ft³/h
Flow Data Water Flow At 100 Psig
1.9 gpm
Specifications Ball Material
304 SS
Specifications Connection A
1/4" NPT Female
Specifications Connection B
1/4" NPT Male
Specifications Cracking Pressure
2 psig
Specifications Cv
0.190
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
