NPT Compact Nickel Plated Brass Fittings, 1/2 in
NPT Compact Nickel Plated Brass Fittings, 1/2 in
SKU:FIT-9c935d
Durable NPT Compact Brass Fittings for secure box connections. UL Listed, CSA Certified, RoHS WEEE Compliant. Ideal for various applications.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
NPT Compact Nickel Plated Brass Fittings, 1/2 in
$14.99
Quantity: 1
Claim Your Seller Account
NPT Compact Nickel Plated Brass Fittings, 1/2 in
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

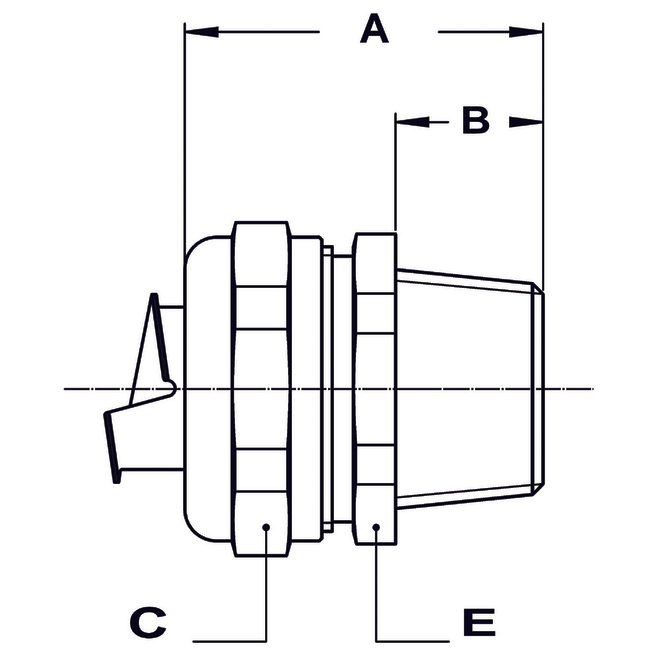

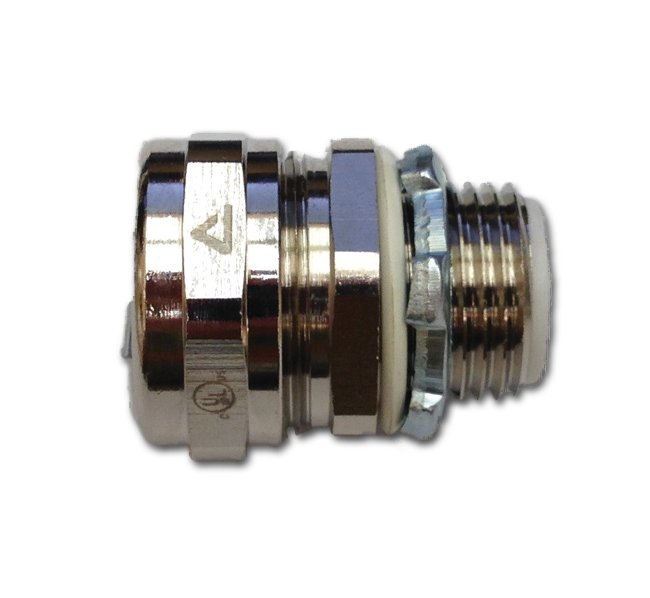

The NPT Compact Nickel Plated Brass Fittings are expertly constructed with nickel-plated brass, comprising four essential parts: counter nut, clamping ring, ferrule, and body. Equipped with a sealing ring and galvanized steel lock nut, these fittings ensure secure connections to boxes. Certified UL Listed, CSA Certified, and RoHS WEEE Compliant, these fittings meet the highest industry standards. With a straight connector type and NPT thread type, these fittings feature dimensions A: 1.388 in, B: 0.472 in, C: 1.141 in, and E: 1.063 in, making them ideal for various applications. The brass core material and Ingress Protection (IP) 66/67 rating provide durable and liquid-tight performance.
Product Specifications
Specifications Connector Type
Straight
Specifications Core Material
Brass
Specifications Dimension A
1.388 in
Specifications Dimension B
0.472 in
Specifications Dimension C
1.141 in
Specifications Dimension E
1.063 in
Specifications Electrical Trade Size
1/2 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Jacket Benefits
Liquid Tight
Specifications Thread Type
NPT
Specifications Type
Compact Nickel Plated Brass
