NPT Nickel Plated Brass Compact Fitting 1-1/4in
NPT Nickel Plated Brass Compact Fitting 1-1/4in
SKU:FIT-8c5559
Durable NPT Nickel Plated Brass Fitting with sealing ring, certified by UL & CSA, RoHS WEEE compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
NPT Nickel Plated Brass Compact Fitting 1-1/4in
$24.99
Quantity: 1
Claim Your Seller Account
NPT Nickel Plated Brass Compact Fitting 1-1/4in
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

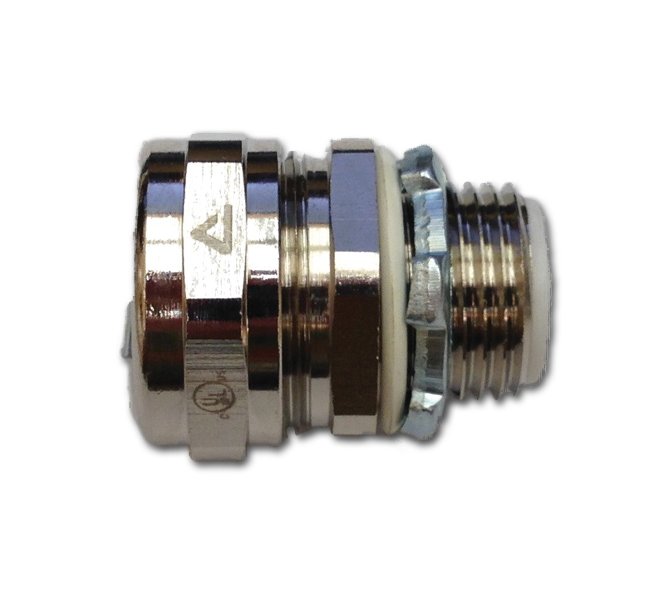

The NPT Nickel Plated Brass Compact Fitting is a durable construction made of nickel plated brass with 4 essential parts for secure connections: counter nut, clamping ring, ferrule, and body. This fitting includes a sealing ring and galvanized steel lock nut for easy box connectivity. Certified by UL and CSA, and compliant with RoHS WEEE, it meets stringent industry standards for reliability and safety, perfect for industrial and institutional applications.
Product Specifications
Specifications Connector Type
Straight
Specifications Core Material
Brass

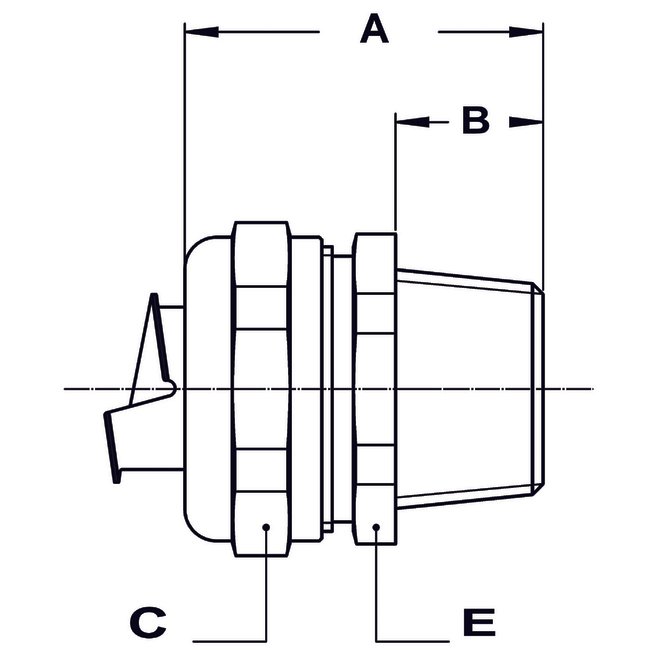

Specifications Dimension A
1.653 in
Specifications Dimension B
0.59 in
Specifications Dimension C
2.086 in
Specifications Dimension E
2.047 in
Specifications Electrical Trade Size
1-1/4 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Jacket Benefits
Liquid Tight
Specifications Thread Type
NPT
Specifications Type
Compact Nickel Plated Brass
