NPT Nickel Plated Brass Compact Fittings - 3/8 in
NPT Nickel Plated Brass Compact Fittings - 3/8 in
SKU:FIT-958c40
High-quality NPT Nickel Plated Brass Fittings for secure industrial connections. UL, CSA, RoHS, WEEE compliant. IP 66/67 rated for reliability.
Regular price
$22.99
Regular price
Sale price
$22.99
Unit price
per
Initiate Order
NPT Nickel Plated Brass Compact Fittings - 3/8 in
$22.99
Quantity: 1
Claim Your Seller Account
NPT Nickel Plated Brass Compact Fittings - 3/8 in
$22.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

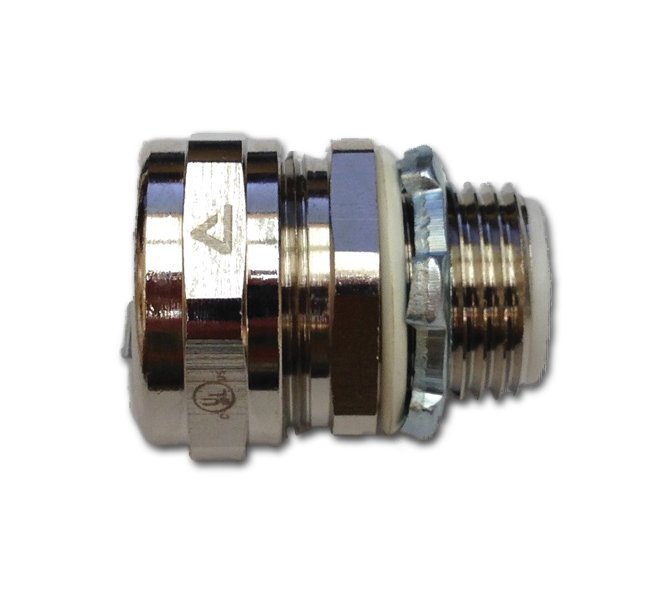

The NPT Nickel Plated Brass Compact Fittings are precision-engineered to meet the stringent requirements of industrial applications. Composed of nickel-plated brass with a sealing ring and galvanized steel lock nut, these fittings ensure secure connections to boxes. With UL LISTED, CSA CERTIFIED, RoHS, and WEEE compliance, they guarantee superior quality and safety standards. Designed as straight connectors with a 3/8 inch electrical trade size, these fittings boast IP 66/67 ingress protection and jacket benefits for liquid-tight performance. Trust in their durable construction and superior sealing properties for reliable performance in demanding environments.
Product Specifications
Specifications Connector Type
Straight
Specifications Core Material
Brass

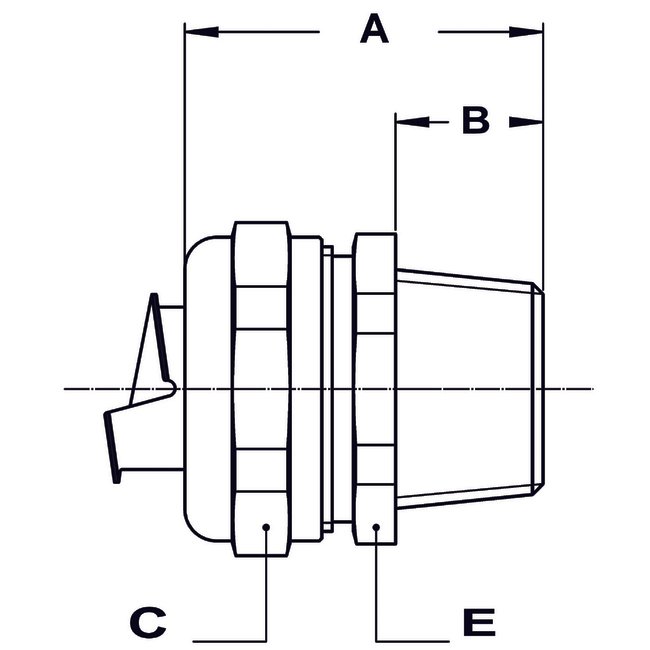

Specifications Dimension A
1.259 in
Specifications Dimension B
0.472 in
Specifications Dimension C
1.023 in
Specifications Dimension E
0.944 in
Specifications Electrical Trade Size
3/8 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Jacket Benefits
Liquid Tight
Specifications Thread Type
NPT
Specifications Type
Compact Nickel Plated Brass
