NPT Square Head Plug for 1/2-14 Threads

Name: NPT Square Head Plug for 1/2-14 Threads
Brand: MOCAP LLC
SKU: SQU-4bb044
Price: 15.99 USD
Availability: OutOfStock

SKU:SQU-4bb044

Keep NPT threads safe with MOCAP Square Head Plugs - ideal for industrial applications. RoHS compliant and red polypropylene material.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your NPT fittings with MOCAP Square Head Plugs, designed for NPT threads from 1/8-27 to 1 1/2-11 1/2. These red polypropylene plugs protect components during production, shipping, and storage, also ideal for masking during painting and plating. With dimensions tailored for 1/2-14 threads, these RoHS compliant plugs meet industry standards for moisture and dust protection.

Product Specifications

Features 0

Protects threaded components from moisture, dust and damage during production, shipping and storage, and can also be used as masking during painting and plating.

Manufacturing Notes 0

MOCAP stocks square head plugs for NPT threads in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.

Specifications Applications

Masking

Specifications Box Quantity

4500

Specifications Color

Red

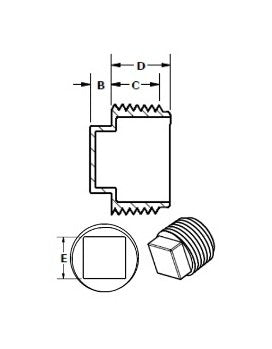

Specifications Head Size Dimension E

0.560 in | 14.2 mm

Specifications Head Type

Square

Specifications Length Dimension D

0.550 in | 14.0 mm

Specifications Material

Polypropylene

Specifications Micro Pack Quantity

Specifications Mini Pack Quantity

900

Specifications Standards

RoHS Compliant

Specifications Stem Height Dimension B

0.250 in | 6.4 mm

Specifications Threaded Area Length Dimension C

0.470 in | 11.9 mm

Specifications To Fit Npt Thread Size

1/2-14
